Product Details:
|
| Package: | Plywood Case | Product Name: | Hydraulic Piston Pumps |
|---|---|---|---|
| Structure: | Variable Displacement Axial Piston Pump | Hydraulic System: | Closed Loop Axial Hydraulic Pump |
| Principle: | Hydraulic Transmission | Type: | Hydraulic Piston Pump |
| Color: | Black | Warranty: | 1 Year |
| Highlight: | Construction Machinery High Pressure Piston Pump,Construction Machinery Piston Pump,Hydraulic System Components Piston Pump |
||

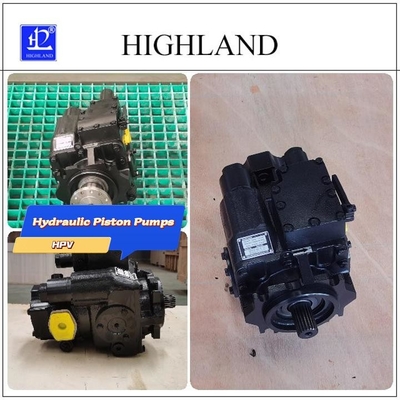

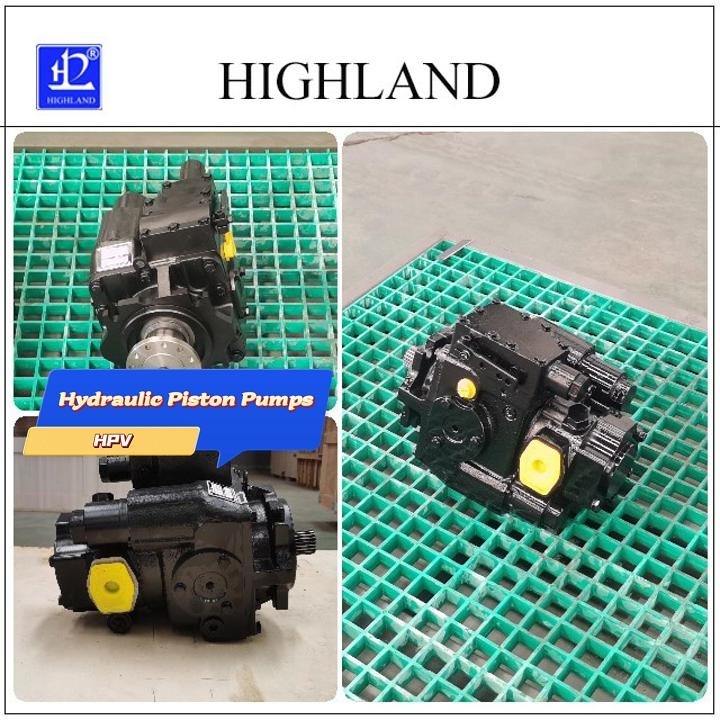

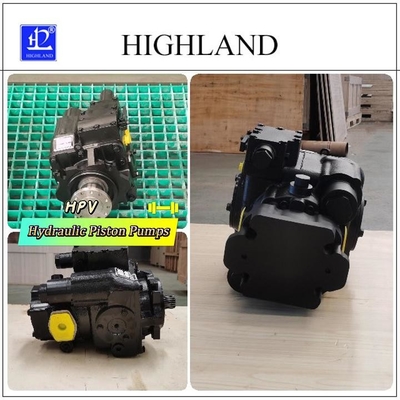

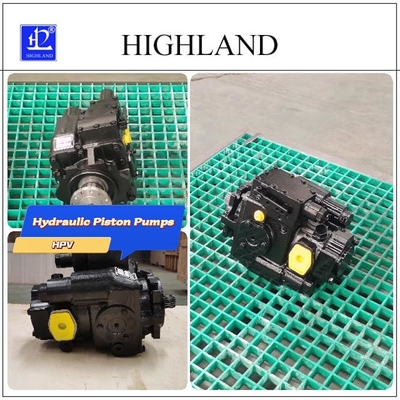

Our Hydraulic Piston Pumps are top-of-the-line products designed to meet the demands of various industries. The HPV110 hydraulic pump is a variable displacement axial piston pump with exceptional performance and durability.
With a compact design, our hydraulic piston pumps are easy to install and require minimal maintenance, making them a cost-effective solution for your hydraulic system needs.
Our Hydraulic Piston Pumps are designed with a variable displacement axial piston structure. This allows for efficient and precise control of fluid flow, making it suitable for a wide range of applications.
We are committed to providing the best quality products and services to our customers. That's why we offer a 1-year warranty for our Hydraulic Piston Pumps, ensuring your satisfaction and peace of mind.
Our pumps are also packaged in a sturdy plywood case, ensuring safe and secure transportation to your destination.
Our Hydraulic Piston Pumps come in a sleek and professional black color, adding a touch of sophistication to your hydraulic system.
Choose our Hydraulic Piston Pumps for a reliable, high-performance, and long-lasting solution for your hydraulic needs. Contact us now for more information and to place your order.
| Standard Export Package | Plywood Case |
|---|---|
| Pressure Range | High Pressure |
| Material | Cast Iron |
| Product Name | Hydraulic Piston Pumps |
| Warranty | 1 Year |
| Rated Pressure | 35Mpa |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Principle | Hydraulic Transmission |
| Power Source | Hydraulic |
| Color | Black |
| High quality hydraulic pump | HPV110 hydraulic pump |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
The HIGHLAND HPV110 is a high quality and reliable HPV110 hydraulic pump designed and manufactured in CHINA DEZHOU . With its patent certificate and variable displacement axial piston pump structure, it is a popular choice for various hydraulic piston pump applications.
| Brand Name | HIGHLAND |
|---|---|
| Model Number | HPV110 |
| Place of Origin | CHINA DEZHOU |
| Certification | PATENT CERTIFICATE |
| Minimum Order Quantity | 5 Sets |
| Price | USD900-1400/Set |
| Packaging Details | Plywood Case |
| Delivery Time | 10 Working Days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 200 Sets/Month |
| Rated Pressure | 35Mpa |
| Max Pressure | 42Mpa |
| Material | Cast Iron |
| Power Source | Hydraulic |
| Structure | Variable Displacement Axial Piston Pump |
As a leading hydraulic piston pump manufacturer and supplier , we have our own hydraulic piston pump factory where we strictly control the quality of our products. We offer competitive hydraulic pump price and excellent after-sales service to ensure customer satisfaction.
The HIGHLAND HPV110 is widely used in various hydraulic pump for excavator applications, providing high pressure and efficient performance. With its sturdy cast iron material and reliable power source, it is a durable and long-lasting choice for your hydraulic system needs.
If you are looking for a high quality HPV110 hydraulic pump for sale , look no further than the HIGHLAND HPV110 . Contact us now to get a quote and experience the power and reliability of our hydraulic piston pumps!
