Product Details:
|
| Warranty: | 1 Year | Pressure Range: | High Pressure |
|---|---|---|---|
| Max Pressure: | 42Mpa | Material: | Cast Iron |
| Type: | Hydraulic Piston Pump | Application: | Construction Machinery, Agricultural Harvester And Tractor |
| Product Name: | Hydraulic Piston Pumps | Power Source: | Hydraulic |
| Highlight: | Agricultural Harvester Hydraulic Piston Pumps,Tractor Hydraulic Piston Pumps,42Mpa Hydraulic Piston Pumps |
||

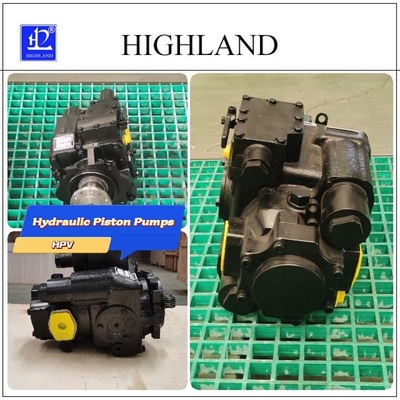

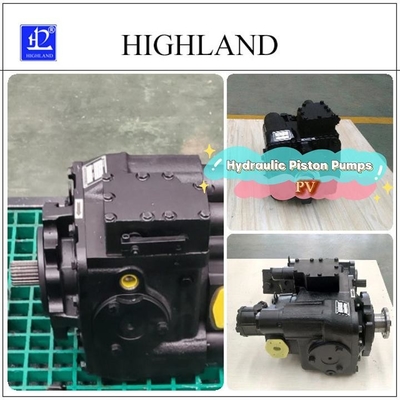

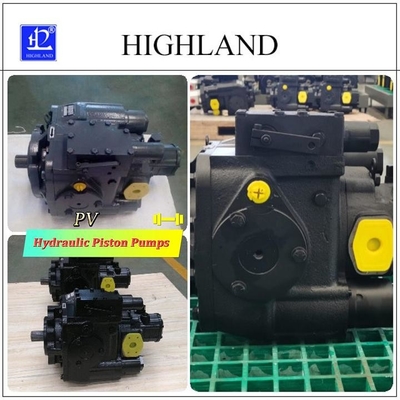

The Hydraulic Piston Pumps is a high quality hydraulic pump designed for applications that require high pressure and reliable performance. It is made of durable cast iron material and operates on the principle of hydraulic transmission. With a max pressure of 42Mpa, this pump is suitable for a wide range of industrial and commercial uses.
The Hydraulic Piston Pumps is the ideal choice for those looking for a reliable and efficient solution for their hydraulic power needs. It is equipped with the latest technology and is backed by a 1-year warranty, ensuring peace of mind and satisfaction for our customers.
With its robust construction and advanced technology, the Hydraulic Piston Pumps delivers superior performance and durability in high pressure applications. It is designed to meet the demanding requirements of various industries such as construction, mining, agriculture, and more.
Invest in the Hydraulic Piston Pumps and experience the power and reliability of a high quality hydraulic pump. Contact us now for more information and to place your order.
Other key features include:
| Hydraulic Piston Pumps | |
|---|---|
| Material | Cast Iron |
| Max Pressure | 42Mpa |
| Function | Hydraulic System Components |
| Power Source | Hydraulic |
| Rated Pressure | 35Mpa |
| Type | Hydraulic Piston Pump |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Pressure Range | High Pressure |
| Standard Export Package | Plywood Case |
| Product Name | Hydraulic Piston Pumps |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Piston Pumps, also known as high pressure piston pumps, are essential components in hydraulic systems. They are designed to provide high pressure and efficient fluid delivery, making them ideal for a wide range of applications in various industries.
The HIGHLAND HPV110 Hydraulic Piston Pump is manufactured in CHINA DEZHOU and comes with a PATENT CERTIFICATE, ensuring its quality and reliability. With a minimum order quantity of 5 sets and a price range of USD900-1400 per set, it is a cost-effective option for businesses.
These pumps are made of high-quality Cast Iron, making them durable and long-lasting. They are also designed to be compact and lightweight, making them easy to install and maintain.
The Hydraulic Piston Pump is a type of positive displacement pump, which means that it delivers a constant amount of fluid with each revolution. This makes them ideal for applications that require a consistent flow rate, such as in hydraulic systems.
The package for the Hydraulic Piston Pump is a Plywood Case, providing protection during transportation and storage. This ensures that the product arrives at its destination in perfect condition.
With a supply ability of 200 sets per month, HIGHLAND is able to meet the demands of businesses and industries of all sizes. The delivery time for the product is 10 working days, allowing for quick and efficient processing of orders.
In conclusion, the HIGHLAND HPV110 Hydraulic Piston Pump is a reliable and efficient product that is suitable for a wide range of applications, thanks to its high pressure and efficient fluid delivery capabilities. With its quality and affordable price, it is a top choice for businesses looking for reliable hydraulic system components. Order yours today and experience the benefits of this outstanding product.
Tags: high pressure hydraulic piston pump, agricultural harvester hydraulic piston pump, axial piston pump
