Product Details:
|
| Material: | Cast Iron | Type: | Hydraulic Piston Pump |
|---|---|---|---|
| Standard Export Package: | Plywood Case | Power Source: | Hydraulic |
| Pressure Range: | High Pressure | Product Name: | Hydraulic Piston Pumps |
| Hydraulic System: | Closed Loop Axial Hydraulic Pump | Max Pressure: | 42Mpa |
| Highlight: | Structure Hydraulic Pump,Variable Displacement Hydraulic Pump,Axial Piston Structure Hydraulic Pump |
||
The Hydraulic Piston Pumps are a type of high pressure piston pump designed for use in construction machinery, agricultural harvesters, and tractors. They are an essential component in hydraulic transmission systems, providing reliable and efficient power source for various heavy-duty equipment.
The Hydraulic Piston Pumps are known for their superior performance and durability, making them the top choice for industries that require powerful and efficient hydraulic systems. They are designed to withstand high pressures of up to 42Mpa, ensuring smooth and consistent operation even in the toughest working conditions.
This product is driven by hydraulic power, making it a reliable and cost-effective solution for powering heavy machinery. With its compact design and easy installation, the Hydraulic Piston Pumps are a convenient option for any construction or agricultural equipment.
The Hydraulic Piston Pumps are available in a sleek and professional black color, adding a touch of sophistication to any equipment it is used on. It is also designed for easy maintenance, ensuring quick and hassle-free repairs or replacements if needed.
| Product Name | Hydraulic Piston Pumps |
|---|---|
| Color | Black |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| Max Pressure | 42Mpa |
| Principle | Hydraulic Transmission |
| Standard Export Package | Plywood Case |
| Package | Plywood Case |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Warranty | 1 Year |
| Pressure Range | High Pressure |
| Structure | Variable Displacement Axial Piston Pump |
| Key Features | piston pump for sale, High quality hydraulic pump |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |

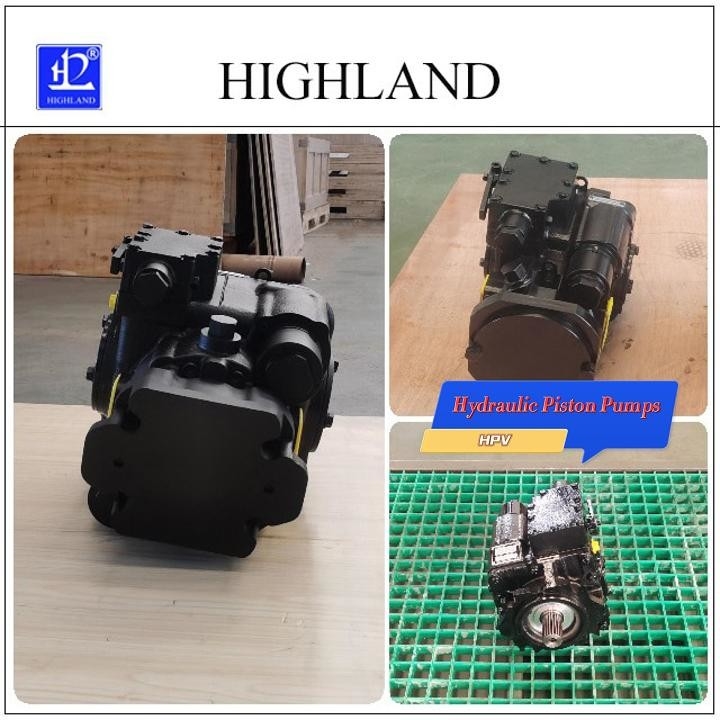

The HIGHLAND HPV90 is a high pressure hydraulic piston pump designed and manufactured by a leading hydraulic pump manufacturer in CHINA DEZHOU. This patented pump, certified with a patent certificate, is a reliable and efficient solution for various applications in the construction machinery, agricultural harvester, and tractor industries.
The HIGHLAND HPV90 is suitable for use in a wide range of construction machinery, such as excavators, loaders, bulldozers, and cranes. It is also commonly used in agricultural equipment, including harvesters and tractors. Its high pressure range makes it ideal for heavy-duty tasks, making it a popular choice among contractors and farmers alike.
The HIGHLAND HPV90 offers numerous benefits, making it a top choice for hydraulic piston pumps:
Don't settle for less when it comes to hydraulic piston pumps. Choose the HIGHLAND HPV90 and experience the difference it can make in your construction or agricultural projects. Contact us today to place your order and see the power of our hydraulic pump in action!
Tags: piston pump for sale, piston hydraulic pump, axial piston pump
