Product Details:
|
| Package: | Plywood Case | Color: | Black |
|---|---|---|---|
| Function: | Hydraulic System Components | Structure: | Variable Displacement Axial Piston Pump |
| Power Source: | Hydraulic | Material: | Cast Iron |
| Product Name: | Hydraulic Piston Pumps | Standard Export Package: | Plywood Case |
| Highlight: | Versatile Piston Pumps,Various Industrial Piston Pumps,Versatile Hydraulic Piston Pumps |
||

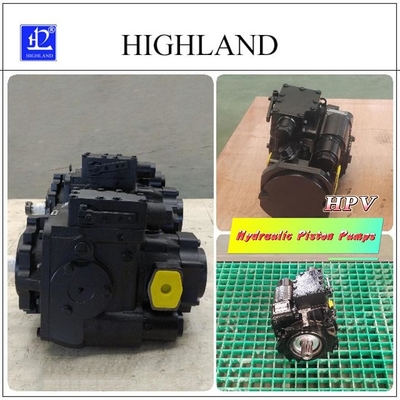

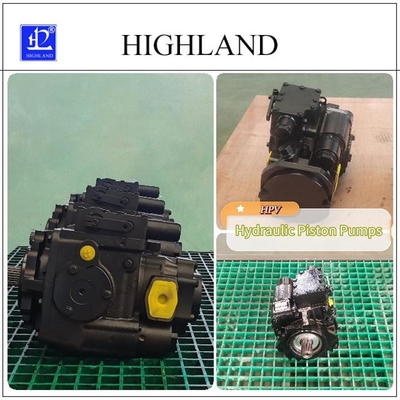

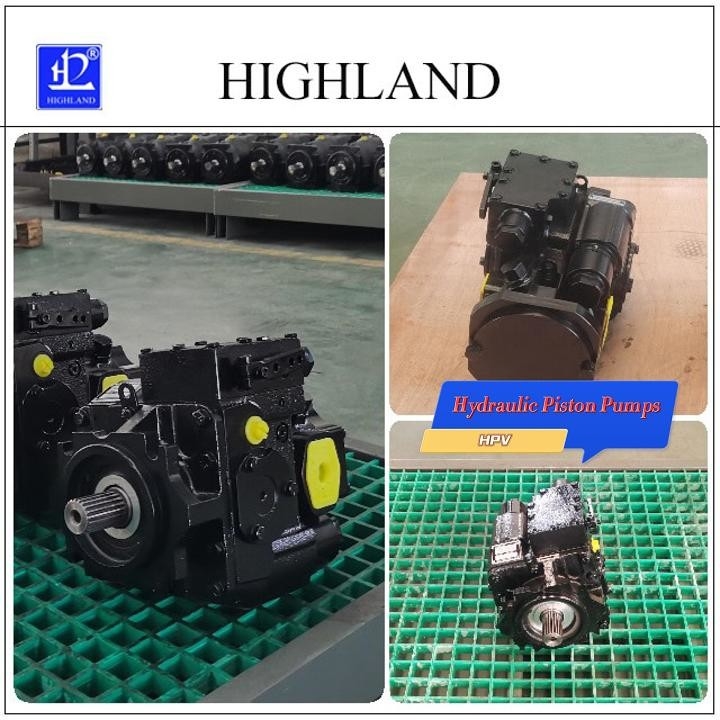

The Hydraulic Piston Pumps, specifically the HPV110 model, utilizes hydraulic transmission to efficiently transfer power from the prime mover to the hydraulic system.
We stand behind the quality of our products and offer a 1 year warranty for the HPV110 hydraulic pump. This ensures our customers have peace of mind and confidence in their purchase.
The HPV110 hydraulic piston pump is capable of handling a maximum pressure of 42Mpa, making it suitable for heavy-duty applications that require high pressure output.
The HPV110 hydraulic piston pump is designed with a closed loop axial hydraulic pump system, providing smoother operation and improved efficiency. This system also offers better control and precision in the hydraulic system.
The HPV110 hydraulic piston pump has a rated pressure of 35Mpa, making it suitable for a variety of applications such as construction, mining, and agriculture.
Get your hands on the reliable and powerful HPV110 hydraulic piston pump now.
| Product Name | Hydraulic Piston Pumps |
|---|---|
| Function | Hydraulic System Components |
| Hydraulic System | Closed Loop Axial Hydraulic Pump |
| Principle | Hydraulic Transmission |
| Power Source | Hydraulic |
| Pressure Range | High Pressure |
| Max Pressure | 42Mpa |
| Rated Pressure | 35Mpa |
| Warranty | 1 Year |
| Standard Export Package | Plywood Case |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
The Highland Hydraulic Piston Pumps, model number HPV90, is a high quality hydraulic pump designed for various hydraulic systems. It is manufactured in China Dezhou and has obtained a patent certificate for its advanced technology.
The Highland Hydraulic Piston Pumps are widely used in various hydraulic systems for different industries such as construction, agriculture, and manufacturing. It is suitable for heavy-duty applications that require high-precision and efficient hydraulic transmission.
The Highland Hydraulic Piston Pumps are known for their exceptional performance and durability. Its key features include:
The Highland Hydraulic Piston Pumps offer numerous benefits to its users, including:
The Highland Hydraulic Piston Pumps, with its high quality and advanced technology, is a reliable choice for any hydraulic system. Its efficient and durable design will ensure smooth hydraulic transmission and improve the overall performance of your system. Don't hesitate to invest in this top-of-the-line hydraulic piston pump.
Tags: hydraulic piston pump, hydraulic transmission piston pump, hydraulic piston pump manufacturer
