Product Details:
|
| Features: | Reliable Quality | Model: | LMF90 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Stove Car Hydraulic Piston Motor | Function: | Hydraulic System Components |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Package: | Plywood Case | Product Name: | Advanced Technology And Robust Design LMF30 Hydraulic Piston Motors |
| Highlight: | Advanced Technology Hydraulic Piston Motors,LMF30 Hydraulic Piston Motors,Robust Design Hydraulic Piston Motors |
||

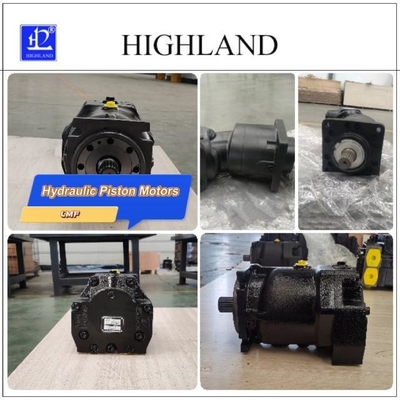

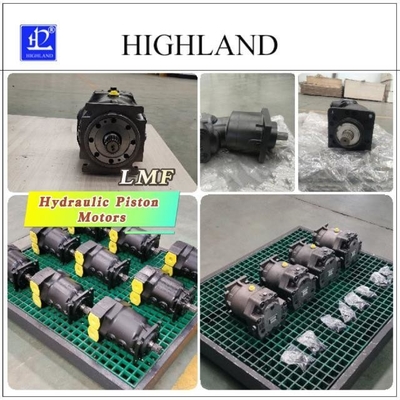

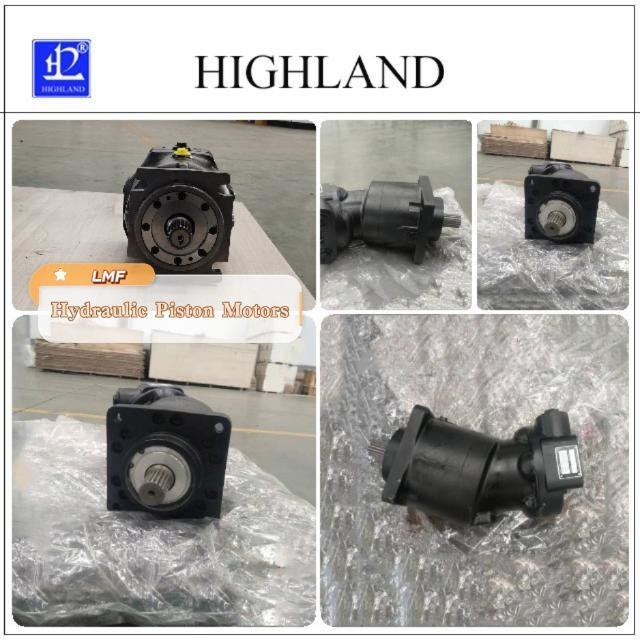

Advanced Technology and Robust Design LMF30 Hydraulic Piston Motors
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF30
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Elevate your machinery's performance to new heights with our state-of-the-art hydraulic piston motors. Designed to meet the rigorous demands of industrial applications, our motors offer a perfect blend of power, efficiency, and durability. With an emphasis on reducing energy consumption while maximizing output, these motors are ideal for applications requiring high torque and low speed, such as in agricultural equipment and material handling systems. Experience the difference in productivity and operational cost savings with our advanced hydraulic solutions.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
Continuous monitoring of the operating temperature of your hydraulic piston motor is crucial for preventing overheating, which can lead to motor failure. Excessive heat can degrade hydraulic fluid and damage internal components, reducing the efficiency and lifespan of the motor. Implement temperature control measures, such as cooling systems or heat exchangers, and regularly check for signs of overheating. This proactive approach ensures your motor maintains optimal performance levels, even under strenuous conditions.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
