Product Details:
|
Max.displacemen: | 110cc/r+110cc/r | Rated Pressure: | 350Bar Tandem Hydraulic Pump |
---|---|---|---|
Max Pressure: | 420Bar Tandem Hydraulic Pump | Material: | Cast Iron |
Medium: | Hydraulic Oil | Warranty: | 1 Year |
Function: | Hydraulic System Components | Package: | Plywood Case |
Product Nam: | Customizable Tandem Hydraulic Pumps The Perfect Fit For Your Industrial Needs | Rotation Direction: | Left Or Right |
Highlight: | Customizable Tandem Hydraulic Pumps,Industrial Customizable Tandem Hydraulic Pumps,Industrial Customizable Tandem Hydraulic Pumps |

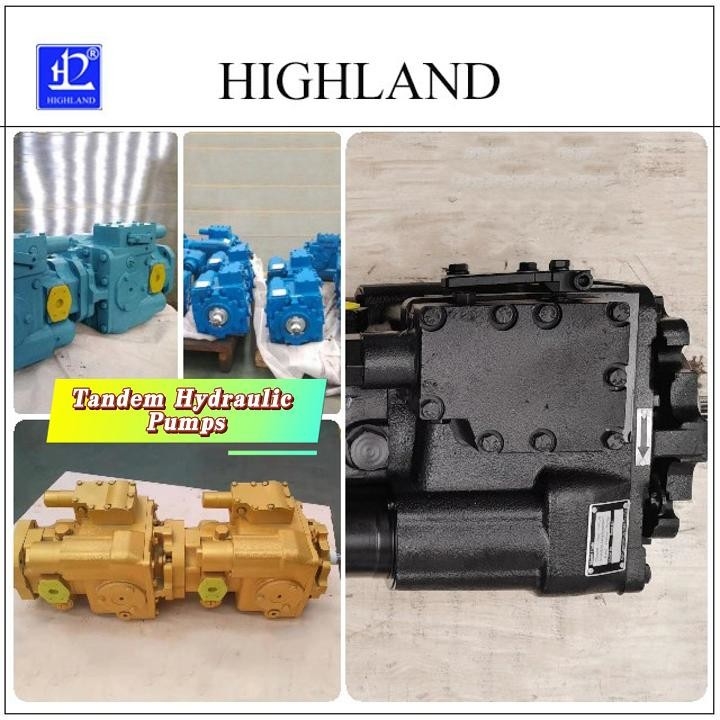

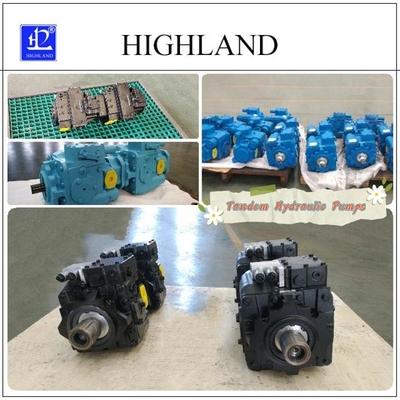

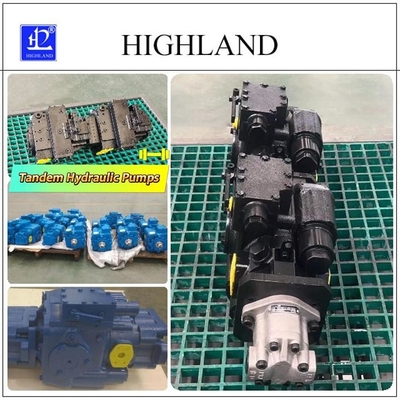

Customizable Tandem Hydraulic Pumps The Perfect Fit for Your Industrial Needs
Tandem hydraulic pumps basic information:
Elevate the capabilities of your industrial operations with our high-capacity tandem hydraulic pumps, specifically designed to tackle the challenges of heavy-duty applications. These pumps exemplify synergy in action, combining forces to manage large loads with unparalleled ease and reliability. Our comprehensive overview showcases their exceptional performance in industrial settings, illustrating how they can streamline operations and boost reliability, making them an indispensable asset for any operation looking to push the boundaries of hydraulic efficiency.
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
HPV hydraulic pump and HMF hydraulic motor series | ||||||||
Displacement | Max displacement | ml/r | 110+110 | |||||
Speed | Max continuous working speed (Full load condition) |
r/min | 2900 | |||||
Rated speed | r/min | 2500 | ||||||
Min continuous working speed | r/min | 500 | ||||||
Pressure | Rated working pressure | Mpa | 35 | |||||
Max working pressure (transient) | Mpa | 42 | ||||||
Continuous working pressure | Mpa | 30 | ||||||
Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
Torque | Continuous output torque (Under continuous working pressure) |
Nm | 535.3 | |||||
Max output torque | Nm | 749 | ||||||
Power | Continuous output power | KW | 149 | |||||
Max power | KW | 173 | ||||||
Temperature | Allowable shell temperature | ℃ | 80 | |||||
Max working temperature of oil tank | ℃ | 70 | ||||||
weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 |
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer needs;
Notices:
Regular maintenance is critical for tandem hydraulic pumps to operate at peak performance. Due to their complex nature and the increased load they handle, these pumps can be susceptible to wear and tear. Scheduling routine inspections and fluid changes, checking for leaks and wear, and ensuring seals and filters are in good condition can significantly extend the life of your pumps. This is particularly important in heavy-duty applications like mining, where downtime can have significant operational impacts.
Hydraulic oil notice of tandem hydraulic pumps:
Understanding the Operating Parameters: Tandem Hydraulic Pumps are complex devices that offer multiple flow rates and pressures. Before using, it's crucial to understand the operating parameters of each pump within the tandem setup. Operating beyond these specifications can result in decreased efficiency, increased wear, and potential pump failure.
FAQ of tandem hydraulic pumps:
Q1, Are you a factory or trading company?
A: We are a factory integrating research, development, production and sales.
Q2, What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3, How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the model and
the quantity of your order.
Q4, How can I get the new price of a product?
A: Please provide the exact or approximate quantity, packing details, destination port or special requirements, so we could give
you the price accordingly.
Q5, How do you make a price offer and how long is its validity?
A: We usually quote within 24 hours by email after we get your inquiry .If you are very urgent to get the price,please call us or
tell us in your email so that we will regard your inquiry priority. The price valid within 7 days.
Q6, Do you accept small order or Sample order?
A: Yes, we also accept sample order.
Q7, Do you accept third party inspection?
A: Yes, we do.
Q8, Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9, How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter.
