Product Details:
|
| Max.displacemen: | 110cc/r+110cc/r | Rated Pressure: | 350Bar Tandem Hydraulic Pump |
|---|---|---|---|
| Max Pressure: | 420Bar Tandem Hydraulic Pump | Material: | Cast Iron |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Product Nam: | Compact And Powerful Tandem Hydraulic Pumps For Closed Circuit Systems | Rotation Direction: | Left Or Right |
| Highlight: | Powerful Tandem Hydraulic Pumps,Closed Circuit Systems Tandem Hydraulic Pumps,Compact Tandem Hydraulic Pumps |
||

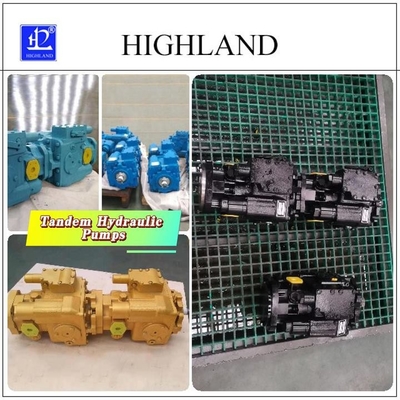

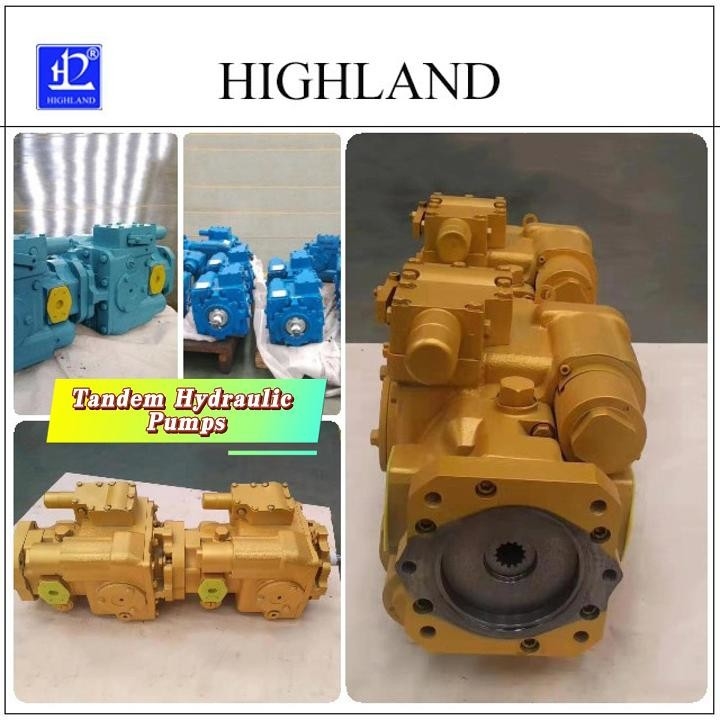

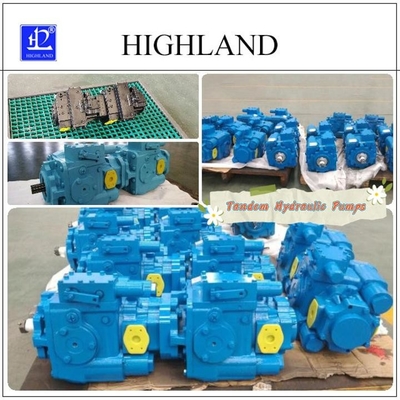

Compact and Powerful Tandem Hydraulic Pumps for Closed Circuit Systems
Tandem hydraulic pumps basic information:
Explore the power of synergy with our tandem hydraulic pumps, the cornerstone of next-generation hydraulic solutions. Our detailed analysis delves into the mechanics of these pumps, showcasing their role in providing a balanced and powerful solution for complex hydraulic systems. Perfect for heavy-duty industrial use, our tandem pumps demonstrate exceptional load management, durability, and efficiency. Join us in embracing this technological advancement and revolutionize your hydraulic operations with a solution that promises to deliver both power and precision.
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
| HPV hydraulic pump and HMF hydraulic motor series | ||||||||
| Displacement | Max displacement | ml/r | 110+110 | |||||
| Speed | Max continuous working speed (Full load condition) |
r/min | 2900 | |||||
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 535.3 | |||||
| Max output torque | Nm | 749 | ||||||
| Power | Continuous output power | KW | 149 | |||||
| Max power | KW | 173 | ||||||
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 | |||||
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer needs;
Notices:
When integrating tandem hydraulic pumps into your system, adapting the design to accommodate these pumps is essential for achieving the best performance. This includes ensuring sufficient space for installation, providing adequate cooling to prevent overheating, and designing the hydraulic circuit to facilitate balanced flow and pressure between the pumps. Attention to these details is crucial in sectors like aerospace and defense, where system efficiency and reliability are paramount. By carefully planning the system layout and support infrastructure, you can leverage the full potential of tandem hydraulic pumps, enhancing the capability and efficiency of your hydraulic systems.
Hydraulic oil notice of tandem hydraulic pumps:
Understanding the Operating Parameters: Tandem Hydraulic Pumps are complex devices that offer multiple flow rates and pressures. Before using, it's crucial to understand the operating parameters of each pump within the tandem setup. Operating beyond these specifications can result in decreased efficiency, increased wear, and potential pump failure.
