Product Details:
|
| Displacment: | 90cc/r Displacement | Type: | Hydraulic System Components |
|---|---|---|---|
| Structure: | Axial Piston Pumps | Material: | Carbon Steel |
| Usage: | Mixer Truck, Combine Harvester Etc | Medium: | Hydraulic Oil |
| Warrantry: | 1 Year | Function: | Hydraulic System |
| Package: | Plywood Case | Product Name: | Hydraulic Variable Displacement Axial Piston Pumps With Charging Oil Pump |
| Highlight: | Axial Piston Variable Displacement Pumps,Charging Oil Axial Piston Pumps,Charging Oil Variable Displacement Pumps |
||

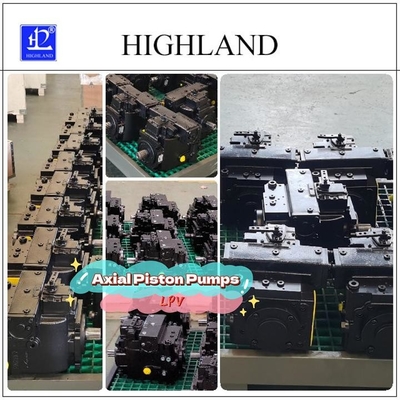

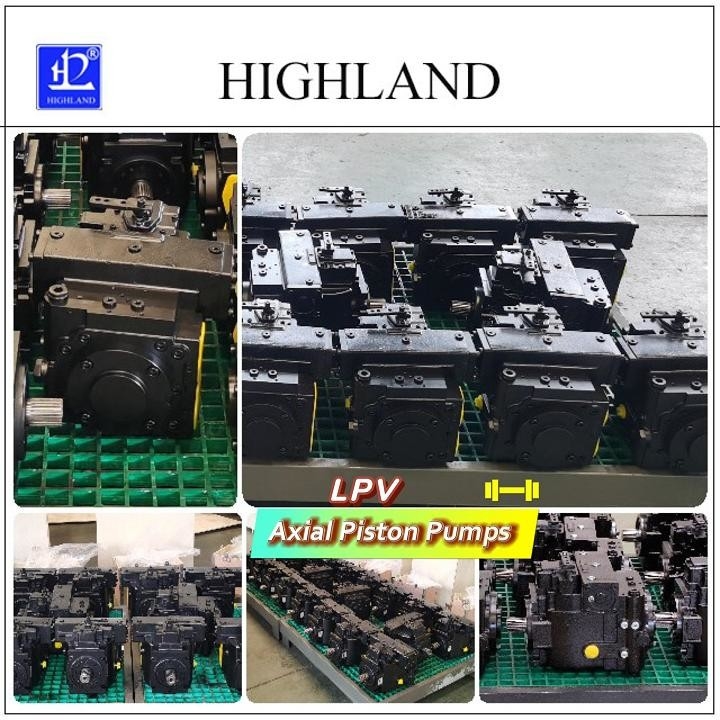

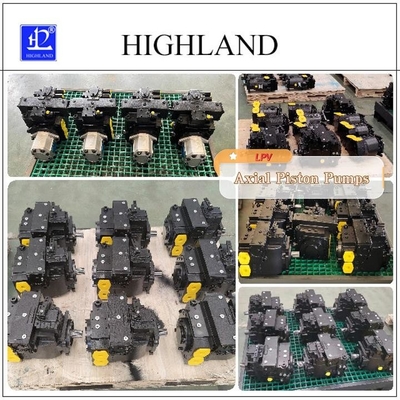

Hydraulic Variable Displacement Axial Piston Pumps with Charging Oil Pump
Hydraulic variable displacement axial piston pumps application range:
Variable displacement axial piston pumps introduction:
Achieve peak performance in your hydraulic operations with our axial piston pumps, where innovative design meets precision engineering. These pumps feature a compact yet robust construction, with a cylinder block and pistons meticulously aligned to ensure optimal fluid dynamics. The swash plate mechanism provides unmatched control over hydraulic flow, offering smooth and efficient operation across a variety of pressures and speeds. Designed for durability and reliability, our axial piston pumps are the perfect choice for applications requiring high-quality hydraulic solutions.
Hydraulic axial piston pumps main features:
1. Variable displacement axial piston hydraulic pumps
2. Axial piston hydraulic pumps have swash plate structure
3. Be suitable for hydrostatic transmissions with closed-loop circuit
4. Manual servo and hydraulic variable control
5. Axial piston hydraulic pumps with a charging oil pump
6. LPV90 hydraulic variable displacement axial piston pump
7. Hydraulic piston pump 42Mpa high pressure
LPV90 Axial piston pumps technical specification:
|
LPV hydraulic pump and LMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
Weight |
LPV series hydraulic pump |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
LPV series hydraulic motor |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Notices:
Proper lubrication of the axial piston pump's moving components is key to smooth operation and longevity. Inadequate lubrication can result in increased friction, heat, and wear, leading to inefficiency and potential pump failure. Use the manufacturer-recommended hydraulic fluid and adhere to prescribed change intervals. In applications with variable speed requirements, like in automotive or aerospace hydraulics, maintaining optimal lubrication is critical for performance and reliability.
FAQ of variable displacement axial piston pumps:
Q1: Are you a manufacturer?
A: Yes, we are manufacturer to produce, design and test axial piston hydraulic pumps by ourselves.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Do you test all piston pumps before shipment?
A: Yes, we have 100% test before shipment, we must guarantee pumps quality.
