Product Details:
|
| Max.displacemen: | 110 Ml/r Displacement | Model: | HPV110 Model |
|---|---|---|---|
| Drive Mode: | Hydraulic Drive | Medium: | Hydraulic Oil |
| Function: | Hydraulic System Components | Structure: | Axial Piston |
| Warranty: | 1 Year | Material: | Cast Iron |
| Package: | Plywood Case | Product Name: | High-efficiency Hydraulic Pump For Agricultural Machinery |
| Highlight: | agricultural machinery High-efficiency hydraulic pump,High Efficiency Hydraulic Pump,Hydraulic Pump For Agricultural Machinery |
||

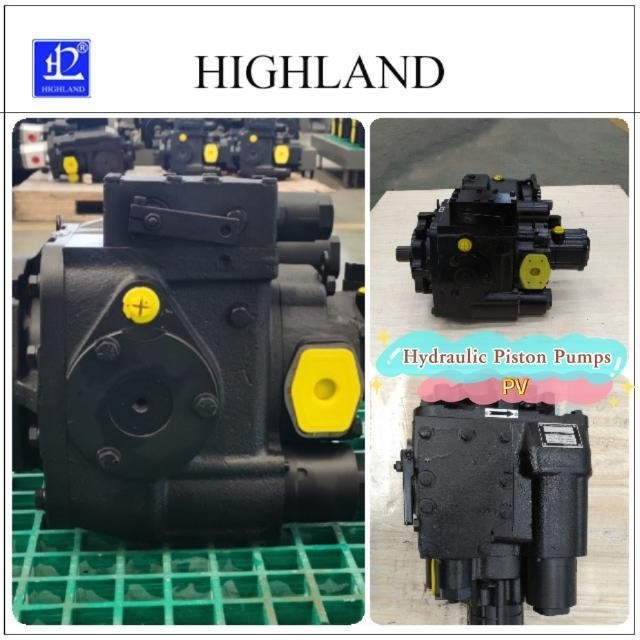

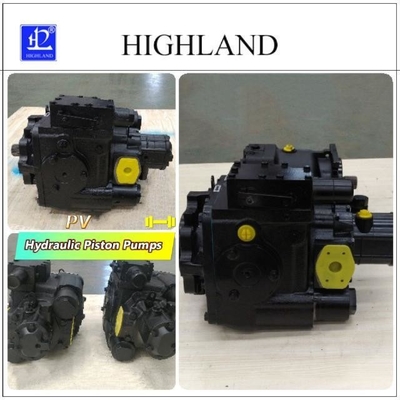

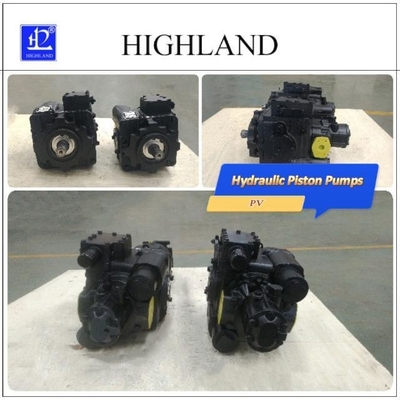

High-efficiency hydraulic pump for agricultural machinery
Hydraulic axial variable displacement piston pumps basic information and selection:
Step up your mining game with hydraulic pumps crafted for the extreme conditions of underground mining. Our pumps offer unparalleled durability and efficiency, reducing the risk of downtime and ensuring continuous operation. With our technology, you're not just purchasing a pump; you're investing in the longevity and productivity of your mining operations.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
|
HPV Series Technical parameter |
||||||||
|
HPV hydraulic pump and HMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
weight |
HPV series hydraulic pump hydraulic oil emptying |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Hydraulic axial piston pumps usage:
Hydraulic axial piston pumps are widely used in high-pressure, high-flow, high-power systems and occasions where the flow needs to be adjusted, such as agricultural machinery, tractor and combine harvester, construction machinery, mining and metallurgical machinery, and ships. It can play an important role.
Notices:
Monitor and manage the operating temperature of your hydraulic piston pumps meticulously. Excessive heat can degrade the hydraulic fluid and damage the pump components, leading to inefficient operation and potential failure. Implement cooling systems if necessary and ensure your operations are within the recommended temperature ranges to maintain optimal pump performance and longevity.
FAQ of hydraulic axial piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston pumps, 20 years experiences in hydraulic industry for oversea and domestic markets. Welcome to visit our factory in Dezhou city Shandong province.
