Product Details:
|
Max.displacemen: | 110cc/r+110cc/r | Rated Pressure: | 350Bar Tandem Hydraulic Pump |
---|---|---|---|
Max Pressure: | 420Bar Tandem Hydraulic Pump | Material: | Cast Iron |
Medium: | Hydraulic Oil | Warranty: | 1 Year |
Function: | Hydraulic System Components | Package: | Plywood Case |
Product Nam: | High Efficiency Hydraulic Tandem Pump For Silage Machine | Rotation Direction: | Left Or Right |
Highlight: | silage machine hydraulic tandem pump,High efficiency hydraulic tandem pump,Hydraulic Tandem Pump For Silage Machine |

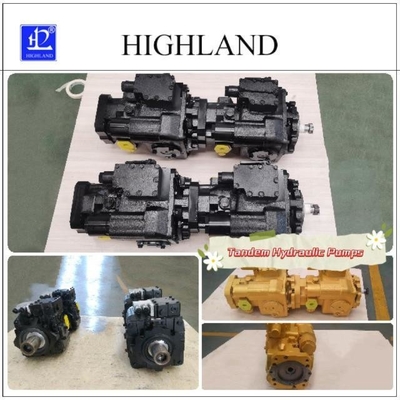

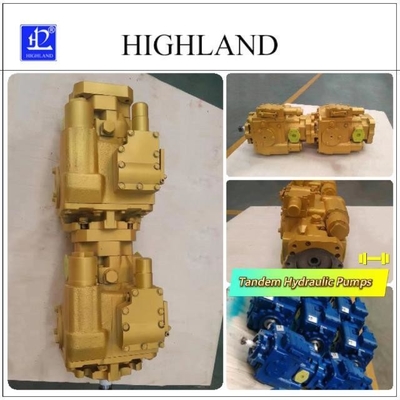

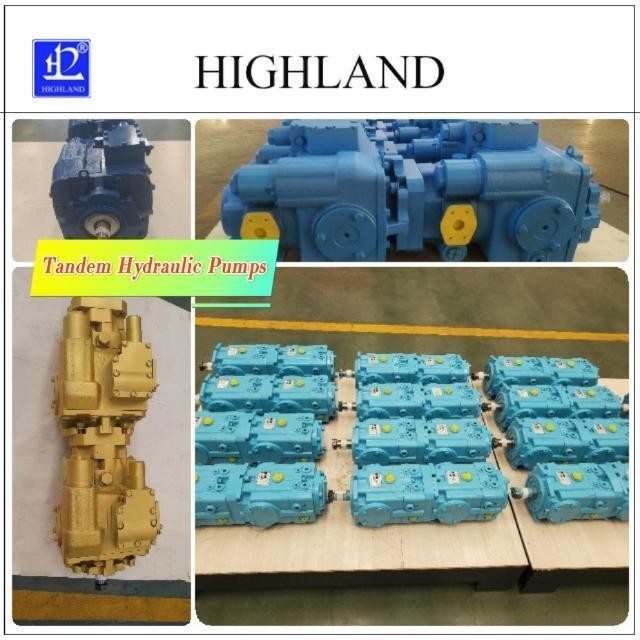

High efficiency hydraulic tandem pump for silage machine
Tandem hydraulic pumps basic information:
Elevate your industrial operations to new heights with our tandem hydraulic pumps, designed to handle the most demanding tasks with unparalleled efficiency. These pumps are engineered to work in harmony, providing a seamless flow of power that ensures your machinery operates smoothly under any load. Ideal for applications requiring precise control and robust performance, our pumps are the backbone of any heavy-duty operation seeking to enhance productivity and operational reliability.
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
HPV hydraulic pump and HMF hydraulic motor series | ||||||||
Displacement | Max displacement | ml/r | 110+110 | |||||
Speed | Max continuous working speed (Full load condition) |
r/min | 2900 | |||||
Rated speed | r/min | 2500 | ||||||
Min continuous working speed | r/min | 500 | ||||||
Pressure | Rated working pressure | Mpa | 35 | |||||
Max working pressure (transient) | Mpa | 42 | ||||||
Continuous working pressure | Mpa | 30 | ||||||
Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
Torque | Continuous output torque (Under continuous working pressure) |
Nm | 535.3 | |||||
Max output torque | Nm | 749 | ||||||
Power | Continuous output power | KW | 149 | |||||
Max power | KW | 173 | ||||||
Temperature | Allowable shell temperature | ℃ | 80 | |||||
Max working temperature of oil tank | ℃ | 70 | ||||||
weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 |
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer needs;
Notices:
Highlight the critical role of temperature management in preserving the efficiency and longevity of tandem hydraulic pumps. Excessive heat can degrade hydraulic fluid, damage seal integrity, and reduce overall pump performance. Encourage the implementation of cooling systems or heat exchangers and regular temperature monitoring to ensure the pumps operate within the optimal temperature range. This practice not only extends the life of the hydraulic fluid but also prevents thermal damage to the pump components.
Hydraulic oil notice of tandem hydraulic pumps:
Understanding the Operating Parameters: Tandem Hydraulic Pumps are complex devices that offer multiple flow rates and pressures. Before using, it's crucial to understand the operating parameters of each pump within the tandem setup. Operating beyond these specifications can result in decreased efficiency, increased wear, and potential pump failure.
