Product Details:
|
| Features: | Reliable Quality | Model: | LMF90 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Stove Car Hydraulic Piston Motor | Function: | Hydraulic System Components |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Package: | Plywood Case | Product Name: | Highly Durable Plunger Motors For Heavy-duty Agricultural Machinery |
| Highlight: | heavy duty plunger motors,agricultural machinery plunger motors,Highly Durable Plunger Motors |
||

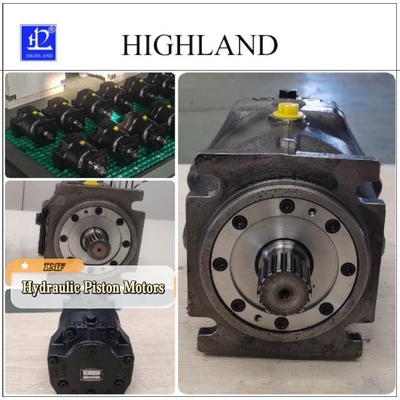

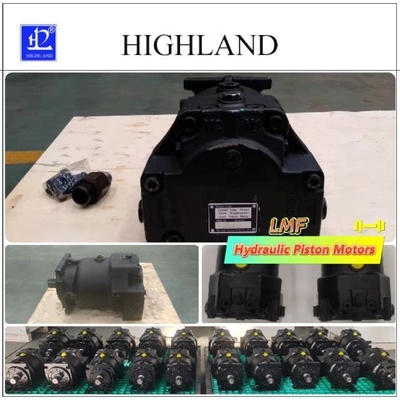

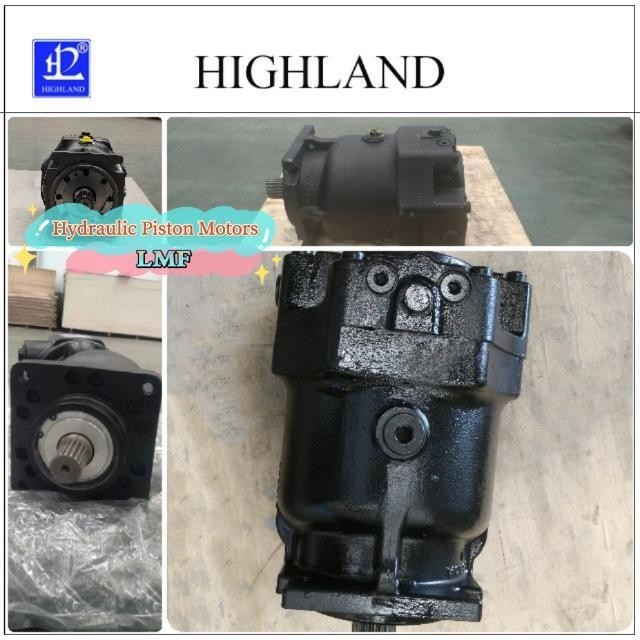

Highly durable plunger motors for heavy-duty agricultural machinery
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model LMF30
· Hydraulic system power components
· Principle hydraulic transmission
· Features reliable quality
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application drying machinery Hydraulic Piston
· 1 year warranty
Description:
Transform your industrial capabilities with our high-precision hydraulic piston motors. Designed to meet the rigorous demands of sophisticated machinery and equipment, these motors ensure unparalleled accuracy and control. From advanced automation to high-precision manufacturing, our motors deliver the performance you need to achieve flawless operation and superior output. Invest in our hydraulic piston motors to enhance the precision and efficiency of your operations, setting a new standard for excellence in your industry.
Specifications:
LMF Series Technical parameter
| LMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
The lifeblood of any hydraulic piston motor is the hydraulic fluid. Ensuring the use of high-quality fluid, free from contamination, is crucial for maintaining peak performance and preventing damage. Contaminated fluid can lead to increased wear, reduced efficiency, and even catastrophic failure of the motor. Implement regular fluid checks and changes as per the manufacturer's recommendations to safeguard against contamination and maintain optimal motor function.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for stove car hydraulic piston motor?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for stove car hydraulic piston motor?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for stove car hydraulic piston motor?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
