Product Details:
|
| Application: | Construction Machinery, Agricultural Harvester And Tractor | Power Source: | Hydraulic |
|---|---|---|---|
| Color: | Black | Hydraulic System: | Closed Loop Axial Hydraulic Pump |
| Package: | Plywood Case | Product Name: | Hydraulic Piston Pumps |
| Warranty: | 1 Year | Standard Export Package: | Plywood Case |
Our piston pump for sale is built to last, with a durable construction that can withstand even the toughest operating conditions. With a power source that is hydraulic, these pumps are perfect for use in hydraulic systems of all kinds.
When you choose our hydraulic piston pumps, you can rest assured that you are getting a top-quality product that is built to last. We stand behind our products with a 1 year warranty, so you can buy with confidence.
Our pumps are designed for ease of use and maintenance, with simple controls and easy-to-replace parts. And with their sleek black color and standard export package of plywood case, these pumps look great and are easy to ship to any location.
So if you are in need of a high pressure piston pump for your hydraulic system, choose our hydraulic piston pumps for the quality and performance you can rely on. Contact us today to learn more!
| Product Name | Hydraulic Piston Pumps |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| Rated Pressure | 35Mpa |
| Max Pressure | 42Mpa |
| Principle | Hydraulic Transmission |
| Power Source | Hydraulic |
| Material | Cast Iron |
| Warranty | 1 Year |
| Function | Hydraulic System Components |
| Standard Export Package | Plywood Case |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
The HPV110-MA-R-23 hydraulic pump is manufactured in CHINA DEZHOU and comes with a PATENT CERTIFICATE, ensuring that you are getting a top-quality product. With a minimum order quantity of 5 sets, you can easily purchase this piston pump for sale at an affordable price range of USD900-1400 per set.
These hydraulic piston pumps are packed in sturdy plywood cases to ensure that they are delivered safely to your location. With a delivery time of 10 working days and payment terms such as T/T and Western Union, you can be assured of a seamless purchasing process.

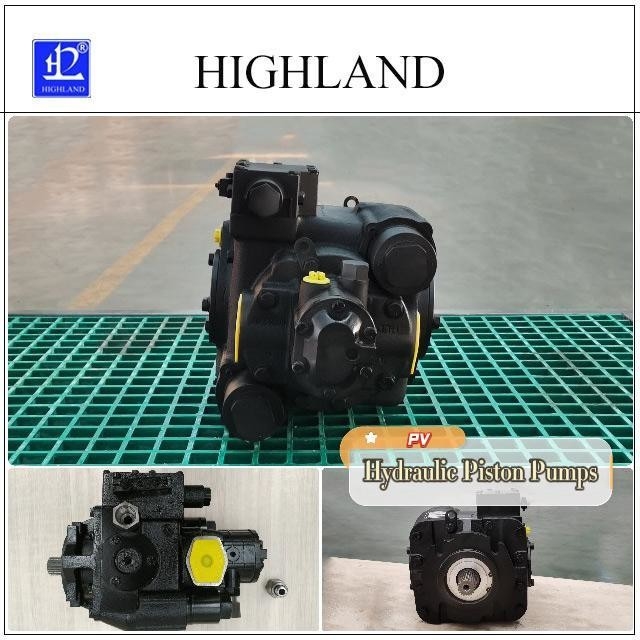

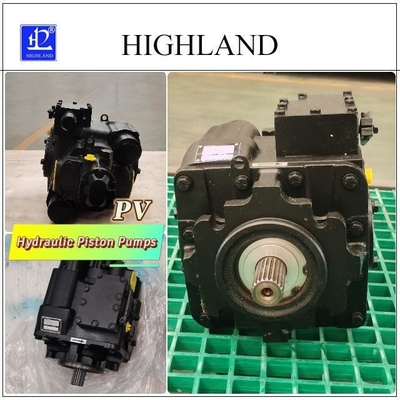

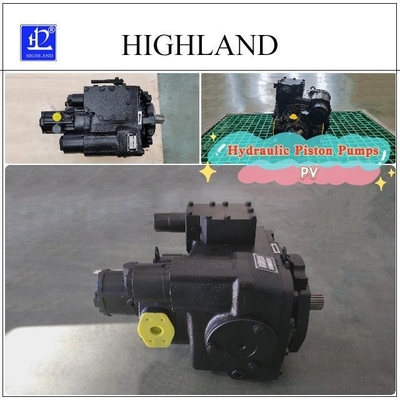

The HPV110-MA-R-23 hydraulic pump is a closed loop axial variable piston hydraulic pump that is powered by a hydraulic system. It is durable and designed to withstand harsh working conditions, making it ideal for use in a variety of settings. The black color of the pump makes it easy to blend into any work environment.
This hydraulic piston pump is suitable for a wide range of applications, including industrial machinery, construction equipment, and agricultural machinery. It is also ideal for use in hydraulic systems that require high-pressure fluid delivery. With a supply ability of 200 sets per month, you can be assured of a continuous supply of this high-quality hydraulic pump.
The HPV110 hydraulic pump comes with a 1-year warranty, giving you peace of mind knowing that you are getting a reliable product. Whether you are looking for a hydraulic piston pump for sale or need to replace an existing pump, the HPV110 hydraulic pump from HIGHLAND is an excellent choice.
Our Hydraulic Piston Pumps are designed and manufactured with the highest quality standards to provide reliable and efficient performance. In the unlikely event of a technical issue, our product technical support team is available to assist you in diagnosing and resolving any problems. We also offer maintenance and repair services to ensure that your pump continues to operate at peak efficiency. Contact us for more information on our support and service offerings.
Q: What is the brand name of this hydraulic piston pump?
A: The brand name of this hydraulic piston pump is HIGHLAND.
Q: What is the model number of this hydraulic piston pump?
A: The model number of this hydraulic piston pump is HPV110.
Q: Where is this hydraulic piston pump manufactured?
A: This hydraulic piston pump is manufactured in CHINA DEZHOU.
Q: What certifications does this hydraulic piston pump have?
A: This hydraulic piston pump has a PATENT CERTIFICATE.
Q: What is the minimum order quantity for this hydraulic piston pump?
A: The minimum order quantity for this hydraulic piston pump is 5 sets.
Q: What is the price range of this hydraulic piston pump?
A: The price range of this hydraulic piston pump is USD900-1400 per set.
Q: What are the packaging details for this hydraulic piston pump?
A: The packaging details for this hydraulic piston pump are Plywood Case.
Q: What is the delivery time for this hydraulic piston pump?
A: The delivery time for this hydraulic piston pump is 10 working days.
Q: What are the payment terms for this hydraulic piston pump?
A: The payment terms for this hydraulic piston pump are T/T and Western Union.
Q: What is the supply ability of this hydraulic piston pump?
A: The supply ability of this hydraulic piston pump is 200 sets per month.
Tags: HPV110-MA-R-23 hydraulic pumps, closed loop hydraulic pumps, variable piston hydraulic pumps
