Product Details:
|
| Pressure Range: | High Pressure | Structure: | Variable Displacement Axial Piston Pump |
|---|---|---|---|
| Warranty: | 1 Year | Color: | Black |
| Material: | Cast Iron | Type: | Hydraulic Piston Pump |
| Package: | Plywood Case | Product Name: | Hydraulic Piston Pumps |
With a pressure range of high pressure, these hydraulic piston pumps are capable of powering even the most demanding hydraulic systems. Whether you're working in construction, agriculture, or any other industry that requires powerful hydraulic machinery, our piston pumps are the perfect choice.
Our Hydraulic Piston Pumps come packaged in a sturdy plywood case, ensuring that they arrive at your location in perfect condition. We understand the importance of reliable equipment, which is why we take great care to ensure that our products are always shipped with the utmost care.
When you choose our Hydraulic Piston Pumps, you can rest assured that you're getting a high quality hydraulic pump that will provide years of exceptional performance. Our piston pumps are constructed from the highest quality materials, and are designed to withstand even the toughest conditions.
In addition to their exceptional performance and durability, our Hydraulic Piston Pumps also come with a standard export package. This plywood case ensures that your piston pump arrives at your location in perfect condition, and is ready to be put to work right away.
So if you're in the market for a high quality hydraulic piston pump, look no further than our Hydraulic Piston Pumps. With their exceptional performance, durability, and reliability, these piston pumps are the perfect choice for any hydraulic system.
| Product Name: | Hydraulic Piston Pumps |
| Material: | Cast Iron |
| Max Pressure: | 42Mpa |
| Rated Pressure: | 35Mpa |
| Principle: | Hydraulic Transmission |
| Structure: | Variable Displacement Axial Piston Pump |
| Power Source: | Hydraulic |
| Standard Export Package: | Plywood Case |
| Warranty: | 1 Year |
| Pressure Range: | High Pressure |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |

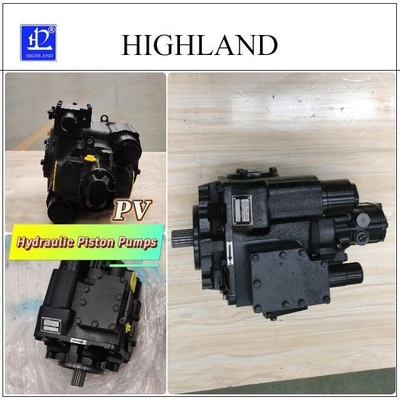

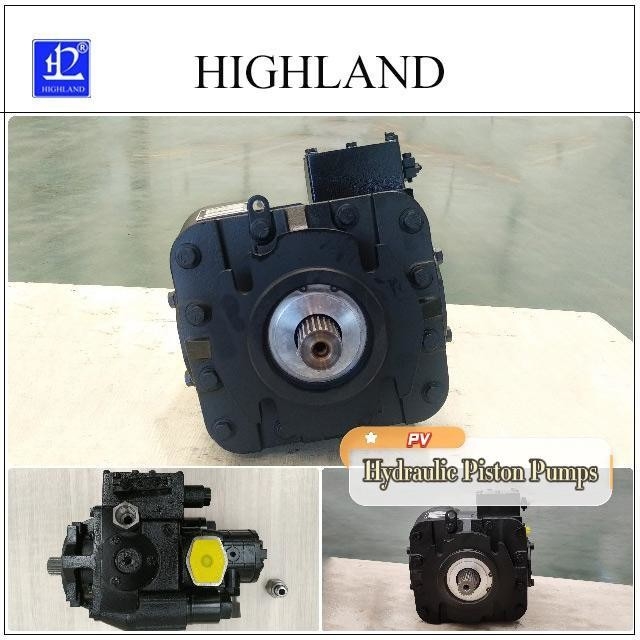

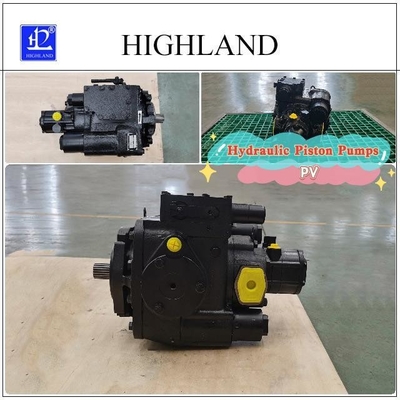

The HPV110 hydraulic piston pump is a variable displacement axial piston pump that can provide a maximum pressure of 42Mpa. This makes it suitable for a wide range of applications that require high pressure, such as construction machinery, mining equipment, and industrial machinery.
These high quality hydraulic pumps are packaged in plywood cases to ensure safe transportation and are delivered within 10 working days. The payment terms for these hydraulic piston pumps are T/T and Western Union, with a supply ability of 200 sets per month.
Whether you need a hydraulic piston pump for sale or a high quality hydraulic pump for your industrial machinery, the HIGHLAND HPV110 hydraulic piston pump is the perfect choice. Its sturdy structure and high-pressure range make it ideal for a variety of applications and scenarios.
So, don't wait any longer and order your HIGHLAND HPV110 hydraulic piston pump today. With its high quality and reliability, you won't regret your decision!
Our Hydraulic Piston Pumps are designed to provide high-performance, durability and reliability. We offer a range of products to cater to different needs and applications. Our technical support team is available to assist with any questions or issues you may encounter with the product. We also provide a range of services, including maintenance and repair, to ensure your Hydraulic Piston Pump continues to operate at peak performance. Contact us for more information about our products and services.
Q: What is the brand name of the hydraulic piston pump?
A: The brand name of the hydraulic piston pump is HIGHLAND.
Q: What is the model number of the hydraulic piston pump?
A: The model number of the hydraulic piston pump is HPV110.
Q: Where is the hydraulic piston pump made?
A: The hydraulic piston pump is made in China Dezhou.
Q: Does the hydraulic piston pump have any certifications?
A: Yes, the hydraulic piston pump has a patent certificate.
Q: What is the minimum order quantity for the hydraulic piston pump?
A: The minimum order quantity for the hydraulic piston pump is 5 sets.
Q: What is the price range of the hydraulic piston pump?
A: The price range of the hydraulic piston pump is USD900-1400 per set.
Q: What are the packaging details for the hydraulic piston pump?
A: The packaging details for the hydraulic piston pump is a plywood case.
Q: What is the delivery time for the hydraulic piston pump?
A: The delivery time for the hydraulic piston pump is 10 working days.
Q: What are the payment terms for the hydraulic piston pump?
A: The payment terms for the hydraulic piston pump are T/T and Western Union.
Q: What is the supply ability of the hydraulic piston pump?
A: The supply ability of the hydraulic piston pump is 200 sets per month.
