Product Details:
|
| Rated Pressure: | 35Mpa | Hydraulic System: | Closed Loop Axial Hydraulic Pump |
|---|---|---|---|
| Pressure Range: | High Pressure | Standard Export Package: | Plywood Case |
| Principle: | Hydraulic Transmission | Type: | Hydraulic Piston Pump |
| Material: | Cast Iron | Structure: | Variable Displacement Axial Piston Pump |

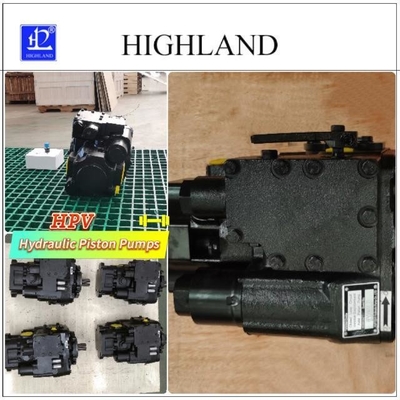

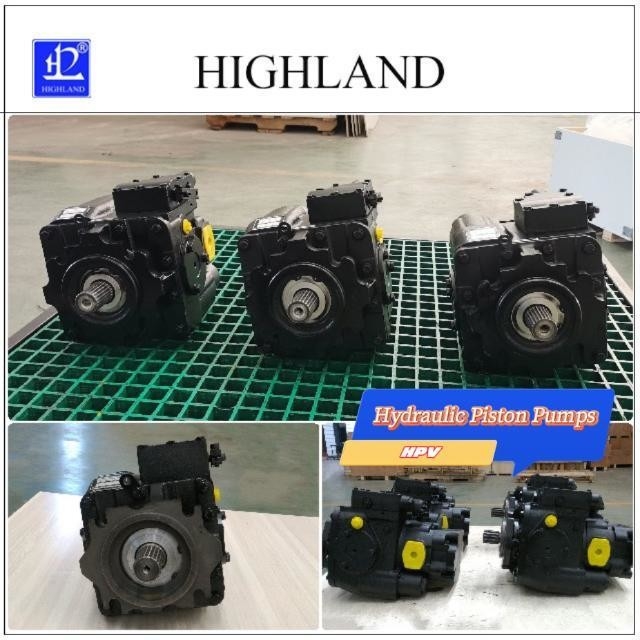

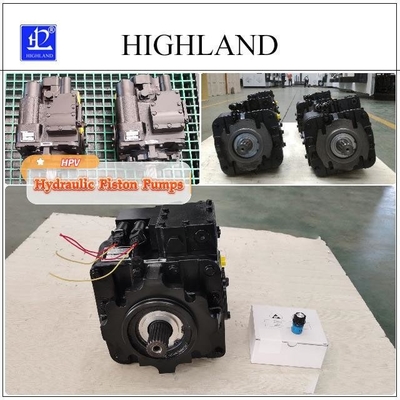

Our piston pump is built to last, featuring a rugged design and high-quality materials that ensure reliable performance even in the most demanding environments. With its variable displacement design, this pump can be adjusted to provide the right amount of flow and pressure for any application, making it a versatile and valuable addition to any hydraulic system.
When you purchase our hydraulic piston pump, you can rest assured that you are getting a top-quality product that is built to last. Our pumps are manufactured to the highest standards of quality and are rigorously tested to ensure that they meet or exceed industry standards for performance and reliability.
In addition to its high-quality construction, our piston pump also comes with a standard export package, which includes a sturdy plywood case that provides additional protection during shipping and handling. This package ensures that your pump arrives at its destination in excellent condition, ready to be installed and put to use.
So if you're looking for a high pressure piston pump that is built to last and can handle even the toughest hydraulic transmission applications, be sure to choose our Variable Displacement Axial Piston Pump. With its rugged design, versatile performance, and included plywood case, this pump is the perfect choice for any hydraulic system.
Order yours today and experience the difference that a quality hydraulic piston pump can make!
Color: Black
Package: Plywood Case
| Technical Parameter | Description |
|---|---|
| Type | Hydraulic Piston Pump |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| Warranty | 1 Year |
| Power Source | Hydraulic |
| Rated Pressure | 35Mpa |
| Material | Cast Iron |
| Color | Black |
| Standard Export Package | Plywood Case |
| Product Name | Hydraulic Piston Pumps |
| Function | Hydraulic System Components |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
These hydraulic piston pumps are known for their high pressure range and efficient hydraulic transmission principle, making them ideal for a variety of industrial applications. They are commonly used in construction equipment, agricultural machinery, and heavy-duty trucks.
The HIGHLAND hydraulic piston pump is made of cast iron, which is a durable and long-lasting material that ensures the pump's longevity. It is a reliable power source for hydraulic machinery, providing a steady flow of hydraulic fluid to ensure the machine's smooth operation.
These hydraulic piston pumps are packaged in plywood cases for secure transport and delivery. The delivery time for these pumps is 10 working days, and the payment terms include T/T and Western Union. The HIGHLAND hydraulic piston pump has a supply ability of 200 sets per month, making it easily accessible for customers who need a high-quality hydraulic pump for their machinery.
The HIGHLAND hydraulic piston pump is suitable for a variety of applications, including:
These are just a few examples of the many applications for which the HIGHLAND hydraulic piston pump is suitable. Whether you are in the construction industry, agriculture, or heavy-duty trucking, this high-quality hydraulic pump is sure to meet your needs and exceed your expectations.
Our company offers comprehensive technical support and services for our Hydraulic Piston Pumps product. Our team of experts is available to answer any questions and provide guidance on installation, operation, and maintenance of the pumps. We also offer repair and replacement services, as well as customized solutions for specific applications. Our goal is to ensure that our customers get the most out of their Hydraulic Piston Pumps and have minimal downtime. Contact us for more information on our technical support and services.
Q: What is the brand name of the hydraulic piston pump?
A: The brand name of the hydraulic piston pump is HIGHLAND.
Q: What is the model number of the hydraulic piston pump?
A: The model number of the hydraulic piston pump is HPV110.
Q: Where is the hydraulic piston pump manufactured?
A: The hydraulic piston pump is manufactured in CHINA DEZHOU.
Q: Does the hydraulic piston pump come with any certifications?
A: Yes, the hydraulic piston pump comes with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for the hydraulic piston pump?
A: The minimum order quantity for the hydraulic piston pump is 5 sets.
Q: What is the price range for the hydraulic piston pump?
A: The price range for the hydraulic piston pump is USD900-1400/set.
Q: How is the hydraulic piston pump packaged for delivery?
A: The hydraulic piston pump is packaged in a Plywood Case.
Q: What is the delivery time for the hydraulic piston pump?
A: The delivery time for the hydraulic piston pump is 10 working days.
Q: What are the payment terms for the hydraulic piston pump?
A: The payment terms for the hydraulic piston pump are T/T and Western Union.
Q: What is the supply ability for the hydraulic piston pump?
A: The supply ability for the hydraulic piston pump is 200 sets/month.
