Product Details:
|
| Features: | Easy Maintenance | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | HMF90 | Type: | Hydraulic Components |
| Application: | Mobile Crusher Heavy Duty Hydraulic Motors | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | Heavy Duty Hydraulic Motors For Elevating Underground Mining Operations |
| Highlight: | Elevating Hydraulic Motors,Underground Mining Hydraulic Motors,Heavy Duty Hydraulic Motors |
||

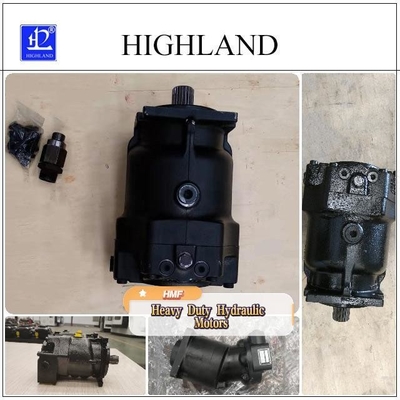

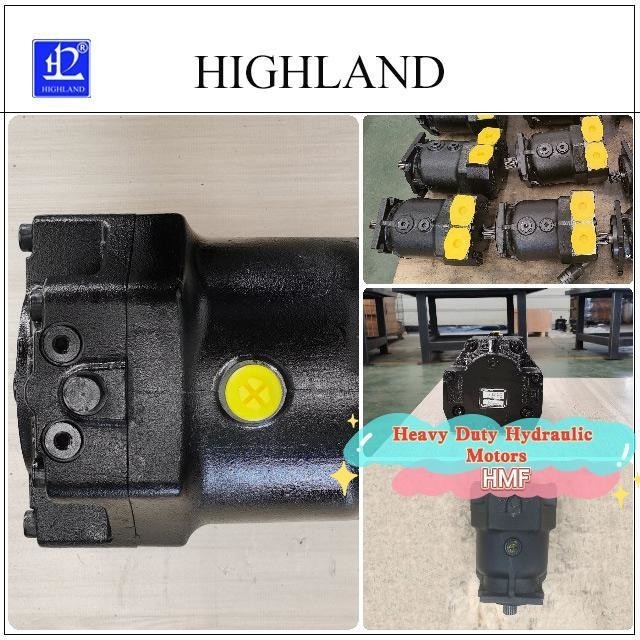

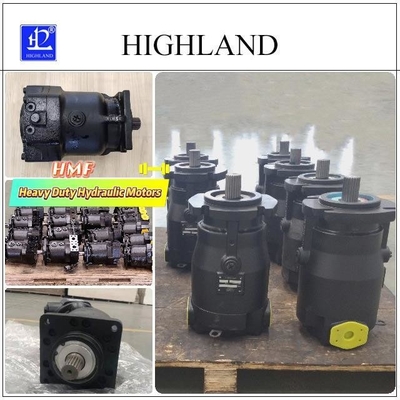

Heavy Duty Hydraulic Motors for Elevating Underground Mining Operations
Quick Detail:
·Cast iron housing
·Hydraulic components
·Model HMF90
·Hydraulic system power components
·Principle hydraulic transmission
·Features easy maintenance
·Simple layout
·System Solutions
·Work fast
·Fully replace imported products
·Patent certificate certification
·Application mobile crusher heavy duty hydraulic motors
·1 year warranty
Description:
Heavy duty hydraulic motors features:
Enhance your heavy-duty industrial operations with our robust Heavy Duty Hydraulic Motors. Built for superior performance and reliability, these motors deliver the power you need to drive your equipment efficiently. With our motors, you can expect minimized downtime, enhanced operational efficiency, and a noticeable boost in overall productivity. Invest in our high-quality hydraulic motors for unmatched durability and performance.
HMF Series Technical parameter:
| HMF hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Notices:
Use only manufacturer-recommended hydraulic fluids in your Heavy Duty Hydraulic Motors. Incompatible fluids can cause chemical reactions, damaging internal components and compromising motor efficiency. Always follow the manufacturer’s guidelines for fluid selection to ensure compatibility and maintain the reliability and performance of your motors.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
FAQ
Q1. Can I have a sample order for mobile crusher heavy duty hydraulic motors ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for mobile crusher heavy duty hydraulic motors ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for mobile crusher heavy duty hydraulic motors ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation
