Customizable Tandem Hydraulic Pumps For Industrial Applications

Certification
China Shandong Highland Hydraulic Seiko Co., Ltd. certification
China Shandong Highland Hydraulic Seiko Co., Ltd. certification
I'm Online Chat Now

Customizable Tandem Hydraulic Pumps For Industrial Applications

Customizable Tandem Hydraulic Pumps For Industrial Applications
Customizable Tandem Hydraulic Pumps For Industrial Applications
Customizable Tandem Hydraulic Pumps For Industrial Applications Customizable Tandem Hydraulic Pumps For Industrial Applications Customizable Tandem Hydraulic Pumps For Industrial Applications Customizable Tandem Hydraulic Pumps For Industrial Applications

Large Image :  Customizable Tandem Hydraulic Pumps For Industrial Applications

Product Details:
Place of Origin: CHINA DEZHOU
Brand Name: HIGHLAND
Certification: PATENT CERTIFICATE
Model Number: HPV110-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3000/set
Packaging Details: Plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month

Customizable Tandem Hydraulic Pumps For Industrial Applications

Description
Max.displacemen: 110cc/r+110cc/r Rated Pressure: 350Bar Tandem Hydraulic Pump
Max Pressure: 420Bar Tandem Hydraulic Pump Material: Cast Iron
Medium: Hydraulic Oil Warranty: 1 Year
Function: Hydraulic System Components Package: Plywood Case
Product Nam: Customizable Tandem Hydraulic Pumps For Industrial Applications Rotation Direction: Left Or Right
Highlight:

Industrial Applications Tandem Hydraulic Pumps

,

Industrial Tandem Hydraulic Pumps

,

Customizable Tandem Hydraulic Pumps

Customizable Tandem Hydraulic Pumps for Industrial Applications



Tandem hydraulic pumps basic information:



Revolutionize your hydraulic systems with our state-of-the-art tandem hydraulic pumps. Tailored for challenging industrial environments, these pumps offer a robust and efficient solution to meet the needs of your dynamic operations. Their innovative design ensures reduced wear and tear while maximizing output, allowing you to achieve optimal results with every use. Choose our tandem pumps for a dependable, high-performance hydraulic solution.



Tandem hydraulic pumps main features:



Variable displacement axial piston pumps

Swash plate structure design

Closed circuit hydraulic system applications

Wide range of displacement

CW or CCW, left or right rotation direction

Compact structure

High efficiency, high pressure

Multiple control modes

Cutom manufacturing and design



Tandem hydraulic pumps technical specification:



HPV hydraulic pump and HMF hydraulic motor series
Displacement Max displacement ml/r 110+110
Speed Max continuous working speed
(Full load condition)
r/min 2900
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 535.3
Max output torque Nm 749
Power Continuous output power KW 149
Max power KW 173
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
weight HPV series hydraulic pump hydraulic oil drain kg 164

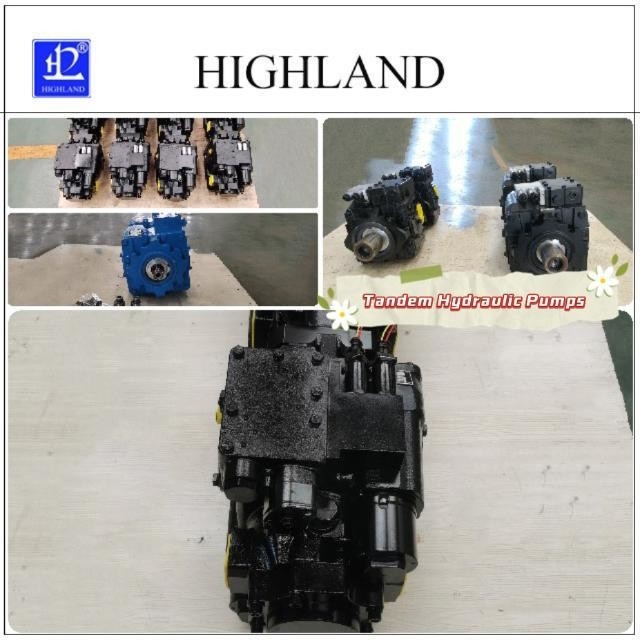

Customizable Tandem Hydraulic Pumps For Industrial Applications 0



Highland company service for tandem hydrauilc pumps:



Quality service

One to one service, can provide design and installation solutions;

Online service for quick response and consultation;

Solve difficult after-sales problems;



Lightning supply

Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;

Commitment to warranty tandem hydraulic pump within one year;

Provide personalized and customized services according to customer needs;





Notices:



Emphasize the necessity of maintaining optimal hydraulic fluid quality in tandem hydraulic pumps. Contaminated or degraded fluid can significantly impair pump performance and lead to component damage. Regularly test and replace hydraulic fluid to ensure it meets the specifications recommended by the manufacturer. Maintaining clean fluid is essential for ensuring the longevity and efficiency of your tandem pump systems.

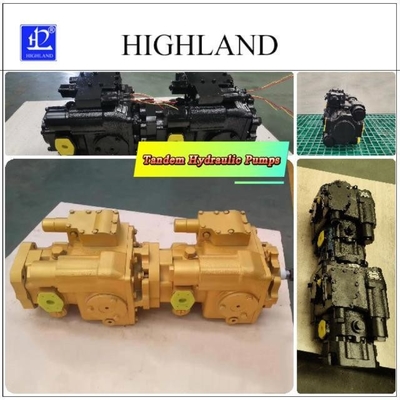

Customizable Tandem Hydraulic Pumps For Industrial Applications 1



Hydraulic oil notice of tandem hydraulic pumps:



Understanding the Operating Parameters: Tandem Hydraulic Pumps are complex devices that offer multiple flow rates and pressures. Before using, it's crucial to understand the operating parameters of each pump within the tandem setup. Operating beyond these specifications can result in decreased efficiency, increased wear, and potential pump failure.



FAQ of tandem hydraulic pumps:



Q1, Are you a factory or trading company?
A: We are a factory integrating research, development, production and sales.

Q2, What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3, How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the model and
the quantity of your order.

Q4, How can I get the new price of a product?
A: Please provide the exact or approximate quantity, packing details, destination port or special requirements, so we could give
you the price accordingly.

Q5, How do you make a price offer and how long is its validity?
A: We usually quote within 24 hours by email after we get your inquiry .If you are very urgent to get the price,please call us or
tell us in your email so that we will regard your inquiry priority. The price valid within 7 days.

Q6, Do you accept small order or Sample order?
A: Yes, we also accept sample order.


Q7, Do you accept third party inspection?
A: Yes, we do.

Q8, Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q9, How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter.

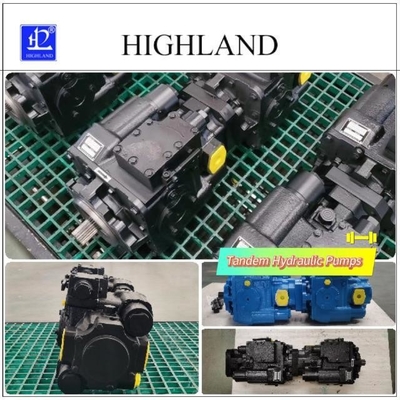

Customizable Tandem Hydraulic Pumps For Industrial Applications 2
