Product Details:
|
| Application: | Construction Machinery, Agricultural Harvester And Tractor | Principle: | Hydraulic Transmission |
|---|---|---|---|
| Function: | Hydraulic System Components | Rated Pressure: | 35Mpa |
| Warranty: | 1 Year | Pressure Range: | High Pressure |
| Standard Export Package: | Plywood Case | Color: | Black |
| Highlight: | Hydraulic Transmission Piston Pump,Piston Hydraulic Pump,Hydraulic System Components Piston Pump |
||

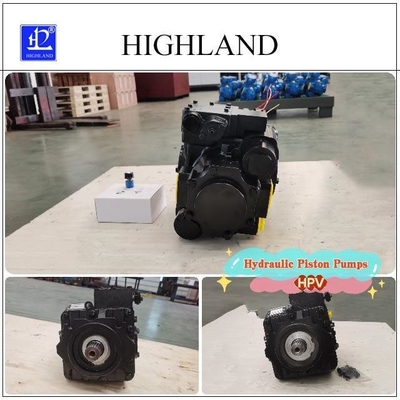

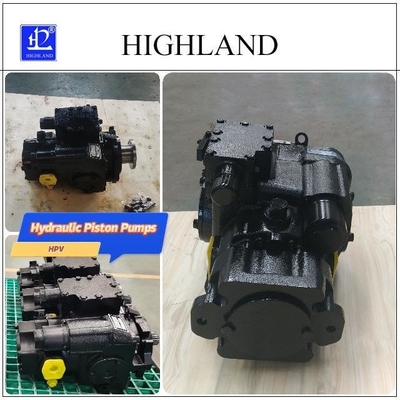

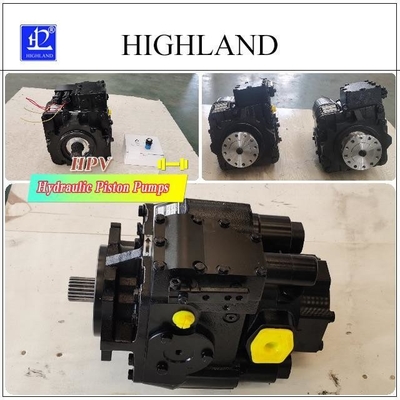

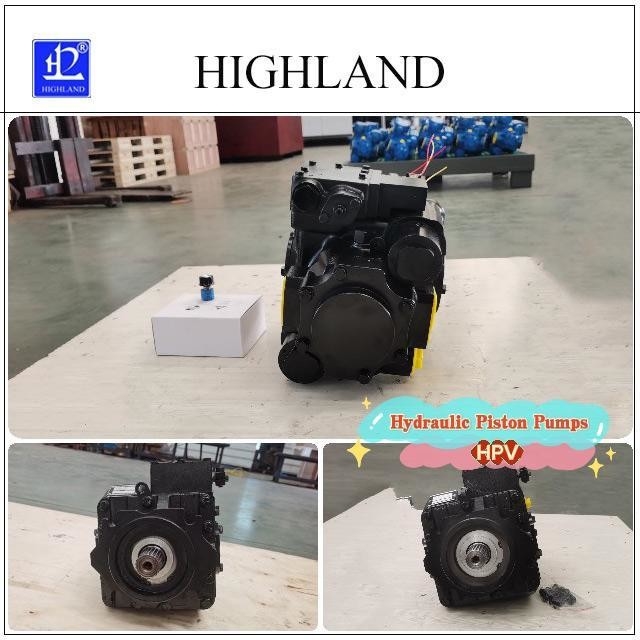

Our hydraulic piston pumps are built using the highest quality materials and components, ensuring long-lasting durability and efficient performance. With a sleek black finish, these pumps are not only functional, but also look great in any hydraulic system.
As hydraulic system components, our piston pumps are designed to work seamlessly with other hydraulic components to deliver smooth and reliable power transmission. The hydraulic transmission principle ensures that power is transmitted efficiently and effectively, minimizing energy waste and maximizing performance.
Our hydraulic piston pumps are also designed with convenience in mind. They are easy to install and operate, and require minimal maintenance to keep them running smoothly. With our standard export package of a plywood case, these pumps are protected during transport and arrive ready to use.
Whether you need a hydraulic piston pump for sale for your industrial or commercial hydraulic system, we have the perfect solution. Contact us today to learn more about our hydraulic piston pumps and how they can benefit your hydraulic system.
Looking for a reliable HPV110 hydraulic pump ? Our hydraulic piston pump for sale is the perfect solution. With a pressure range of high pressure and a closed loop axial hydraulic pump system, this pump is built to last. Made from sturdy cast iron , our hydraulic piston pump is capable of reaching a maximum pressure of 42Mpa.
| Product Name: | Hydraulic Piston Pumps |
| Standard Export Package: | Plywood Case |
| Rated Pressure: | 35Mpa |
| Principle: | Hydraulic Transmission |
| Warranty: | 1 Year |
| Application: | Construction Machinery, Agricultural Harvester And Tractor |
| Type: | Hydraulic Piston Pump |
| Pressure Range: | High Pressure |
| Structure: | Variable Displacement Axial Piston Pump |
| Power Source: | Hydraulic |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
The HIGHLAND HPV110 hydraulic piston pump is perfect for a variety of applications and scenarios. It is designed to work in hydraulic systems, and is a crucial component for any hydraulic machinery. Whether you're working in agriculture, construction, mining, or any other industry that relies on heavy machinery, this piston pump for sale is sure to meet your needs.
With a rated pressure of 35Mpa, the HIGHLAND HPV110 hydraulic piston pump is capable of handling even the toughest jobs. It is built to last, with a sturdy construction that can withstand heavy use and harsh conditions. And with a minimum order quantity of just 5 sets, you can easily get the number of pumps you need for your operation.
When you order the HIGHLAND HPV110 hydraulic piston pump, you'll enjoy a range of benefits. Our standard export package is a sturdy plywood case that will protect your pump during shipping and storage. And with a delivery time of just 10 working days, you won't have to wait long to get your pump up and running.
Ordering is easy too - we accept T/T and Western Union for payment, and our supply ability is 200 sets per month. So whether you need one pump or several, we've got you covered.
Get the high quality hydraulic pump you need for your hydraulic system. Order the HIGHLAND HPV110 hydraulic piston pump today!
Our Hydraulic Piston Pumps come with comprehensive technical support and services to ensure optimal performance and longevity of the product. Our team of experts can provide installation guidance, troubleshooting assistance, and maintenance recommendations to keep your hydraulic system running smoothly. We also offer repair services and replacement parts to minimize downtime and reduce costs. Contact us for more information on our technical support and services for our Hydraulic Piston Pumps.
Q: What is the brand name of the hydraulic piston pump?
A: The brand name of the hydraulic piston pump is HIGHLAND.
Q: What is the model number of the hydraulic piston pump?
A: The model number of the hydraulic piston pump is HPV110.
Q: Where is the hydraulic piston pump made?
A: The hydraulic piston pump is made in CHINA DEZHOU.
Q: Does the hydraulic piston pump come with a certification?
A: Yes, the hydraulic piston pump comes with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for the hydraulic piston pump?
A: The minimum order quantity for the hydraulic piston pump is 5 sets.
Q: What is the price range for the hydraulic piston pump?
A: The price range for the hydraulic piston pump is USD900-1400 per set.
Q: What are the packaging details for the hydraulic piston pump?
A: The packaging details for the hydraulic piston pump are Plywood Case.
Q: How long is the delivery time for the hydraulic piston pump?
A: The delivery time for the hydraulic piston pump is 10 working days.
Q: What are the payment terms for the hydraulic piston pump?
A: The payment terms for the hydraulic piston pump are T/T and Western Union.
Q: What is the supply ability of the hydraulic piston pump?
A: The supply ability of the hydraulic piston pump is 200 sets per month.
