Product Details:
|
| Warranty: | 1 Year | Application: | Construction Machinery, Agricultural Harvester And Tractor |
|---|---|---|---|
| Function: | Hydraulic System Components | Structure: | Variable Displacement Axial Piston Pump |
| Hydraulic System: | Closed Loop Axial Hydraulic Pump | Pressure Range: | High Pressure |
| Type: | Hydraulic Piston Pump | Product Name: | Hydraulic Piston Pumps |
| Highlight: | Variable Displacement Axial Piston Pump,High Pressure Axial Piston Pump,Hydraulic Systems Axial Piston Pump |
||

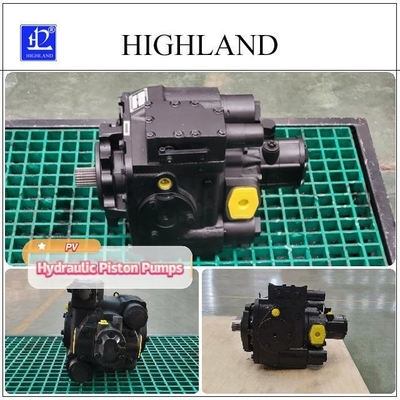

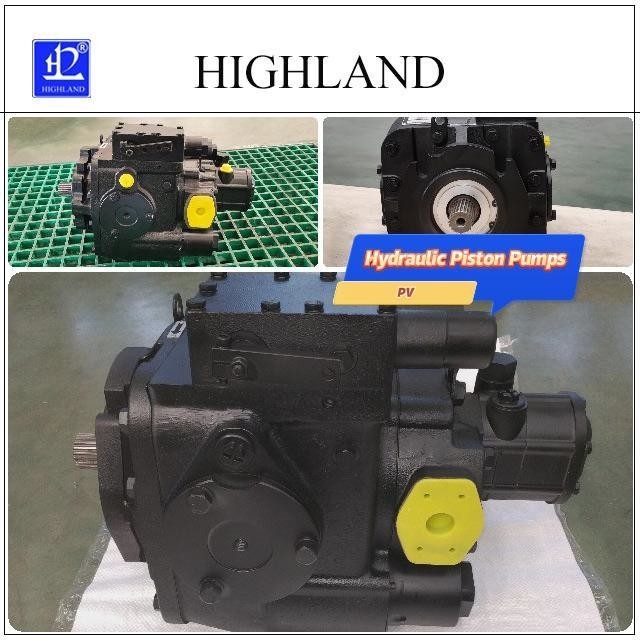

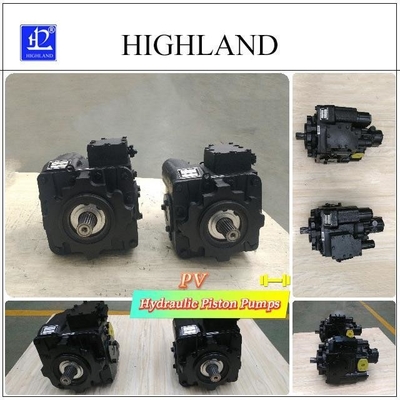

The Hydraulic Piston Pumps is a variable displacement axial piston pump that is engineered to deliver outstanding performance, durability, and reliability. It is designed to provide a consistent flow of hydraulic fluid even under high pressure and heavy loads.
This hydraulic pump is perfect for those who demand high-performance pumps that can handle tough hydraulic applications. With its black color, it can easily blend in with other hydraulic components and equipment.
The Hydraulic Piston Pumps comes with a 1-year warranty, which guarantees its quality and reliability. This means that you can rely on it for all your hydraulic needs without worrying about unexpected breakdowns.
One of the notable features of this hydraulic pump is the HPV110 hydraulic pump, which is a high-performance pump that is known for its reliability and efficiency. It is capable of handling high-pressure applications and provides a consistent flow of hydraulic fluid, making it ideal for various hydraulic operations.
The Hydraulic Piston Pumps is a versatile hydraulic pump that can be used in various applications, including construction, mining, agriculture, and manufacturing. It is a must-have for those who need a reliable and efficient hydraulic pump that can handle tough applications.
In conclusion, the Hydraulic Piston Pumps is a must-have for those in the hydraulic industry who demand high-performance and reliability. With its Closed Loop Axial Hydraulic Pump system, variable displacement axial piston pump structure, and the HPV110 hydraulic pump, it is guaranteed to provide the precision and efficiency that your hydraulic operations need. It comes with a 1-year warranty, making it a reliable investment for all your hydraulic needs.
| Technical Parameters | Description |
|---|---|
| Product Name | Hydraulic Piston Pumps |
| Type | Hydraulic Piston Pump |
| Structure | Variable Displacement Axial Piston Pump |
| Power Source | Hydraulic |
| Principle | Hydraulic Transmission |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| Max Pressure | 42Mpa |
| Rated Pressure | 35Mpa |
| Color | Black |
| Warranty | 1 Year |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
This high pressure piston pump is a high quality hydraulic pump, suitable for various applications, and piston pump for sale.
The HIGHLAND HPV110 hydraulic piston pump is used in a variety of application occasions and scenarios. It is commonly used in the construction industry for heavy-duty machinery like excavators, bulldozers, and cranes. It is also used in the agricultural industry for tractors and other farm equipment. This hydraulic piston pump is also helpful in the manufacturing industry for assembly lines or other machinery that needs hydraulic power. With a 1-year warranty, customers can trust the HIGHLAND HPV110 to perform well and last for a long time.
The Hydraulic Piston Pumps product comes with a comprehensive technical support and services package to ensure that you get the best performance out of your product. Our team of experts are available to assist you with any technical queries or issues you may have, as well as offer advice on how to optimize the performance of your hydraulic piston pump. Our technical support and services include:
We are committed to providing our customers with the best possible technical support and services to ensure that your hydraulic piston pump operates at peak performance, minimizing downtime and maximizing productivity.
Q: What is the brand name of this hydraulic piston pump?
A: The brand name of this hydraulic piston pump is HIGHLAND.
Q: What is the model number of this hydraulic piston pump?
A: The model number of this hydraulic piston pump is HPV110.
Q: Where is this hydraulic piston pump manufactured?
A: This hydraulic piston pump is manufactured in CHINA DEZHOU.
Q: Does this hydraulic piston pump come with any certification?
A: Yes, this hydraulic piston pump comes with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for this hydraulic piston pump and what is the price?
A: The minimum order quantity for this hydraulic piston pump is 5 sets and the price ranges from USD900-1400 per set.
Q: What are the packaging details, delivery time, payment terms, and supply ability for this hydraulic piston pump?
A: The packaging details for this hydraulic piston pump are Plywood Case. The delivery time is 10 working days. The payment terms are T/T and Western Union. The supply ability is 200 sets per month.
