Product Details:
|
| Pressure Range: | High Pressure | Color: | Black |
|---|---|---|---|
| Material: | Cast Iron | Principle: | Hydraulic Transmission |
| Function: | Hydraulic System Components | Structure: | Variable Displacement Axial Piston Pump |
| Hydraulic System: | Closed Loop Axial Hydraulic Pump | Standard Export Package: | Plywood Case |
| Highlight: | Black Cast Iron Hydraulic Piston Pumps,High Pressure Hydraulic Piston Pumps,Closed Loop System Hydraulic Piston Pumps |
||
Our hydraulic piston pump is designed to provide high-pressure fluid flow, making it the perfect choice for heavy-duty machinery and equipment. With a max pressure of 42Mpa, you can trust that our hydraulic piston pump will provide the power and performance you need to get the job done.
Our hydraulic piston pump is a type of positive displacement pump that uses pistons to move fluid through a hydraulic system. This type of pump is known for its high efficiency and reliability, making it the perfect choice for a wide range of applications.
At our company, we understand the importance of having a high-quality hydraulic pump for your system. That is why we have designed our hydraulic piston pump to meet the highest standards of quality and performance.
Whether you are looking for a hydraulic piston pump for your industrial machinery, construction equipment, or agricultural equipment, our product is the perfect choice. With its high-pressure piston pump and durable cast iron material, you can trust that our hydraulic piston pump will deliver the power and performance you need.
If you're looking for a high-quality hydraulic piston pump, look no further than our Hydraulic Piston Pumps. Our piston pump for sale is designed with a closed loop axial hydraulic pump system, ensuring reliable and efficient operation. The variable displacement axial piston pump structure provides superior performance, while the high pressure range makes it suitable for a wide range of applications. Plus, our pumps come in a sleek black color and are packaged in a sturdy plywood case for easy transport and storage.
| Product Name | Hydraulic Piston Pumps |
| Structure | Variable Displacement Axial Piston Pump |
| Power Source | Hydraulic |
| Max Pressure | 42Mpa |
| Pressure Range | High Pressure |
| Application | Construction Machinery, Agricultural Harvester And Tractor |
| Warranty | 1 Year |
| Function | Hydraulic System Components |
| Color | Black |
| Material | Cast Iron |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |

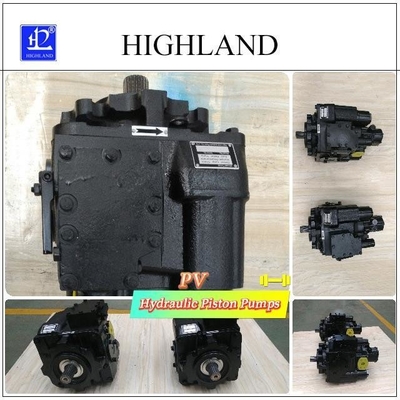

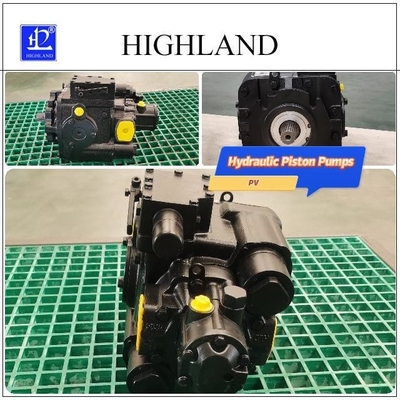

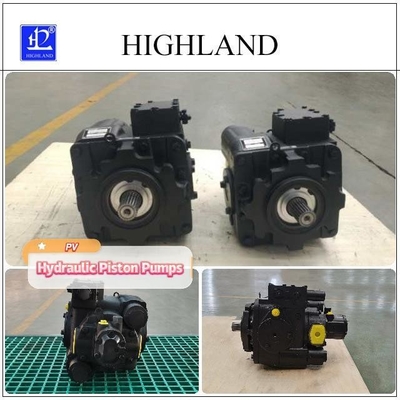

The HIGHLAND HPV110 hydraulic piston pump is a high-quality hydraulic pump that is perfect for use in a variety of different applications. With a maximum pressure of 42Mpa, this pump is designed to provide reliable and efficient operation, even in demanding environments.
Whether you are looking for a piston pump for sale to use in construction machinery, agricultural harvester, or tractors, the HPV110 hydraulic pump from HIGHLAND is an excellent choice. This pump is designed to deliver high-pressure performance, making it ideal for use in a range of different hydraulic systems.
Thanks to its patented design and certification, you can be confident in the quality and reliability of this product. The HPV110 hydraulic pump is made in China Dezhou, and it comes with a minimum order quantity of 5 sets. The price for each set of this product ranges from USD900-1400.
When you order this hydraulic piston pump, it comes packaged in a sturdy plywood case to ensure that it arrives at your location in excellent condition. Delivery of the product takes about 10 working days, and you can pay for your order using T/T or Western Union.
The HIGHLAND HPV110 hydraulic piston pump has a power source of hydraulic and is designed to be used in high-pressure applications. With a supply ability of 200 sets per month, you can be sure that this product will meet your needs, no matter how large or small your operation may be.
Overall, the HIGHLAND HPV110 hydraulic piston pump is an excellent choice for anyone looking for a high-quality hydraulic pump that delivers reliable and efficient performance. Whether you need it for construction machinery, agricultural harvester or tractor, it is an excellent investment.
Our Hydraulic Piston Pumps are designed and manufactured to meet the highest standards of quality and reliability. We offer a comprehensive range of technical support and services to ensure that our customers get the most out of their pumps.
Our team of experienced engineers are available to provide technical advice and assistance with installation, commissioning and maintenance of our Hydraulic Piston Pumps. We also offer training programs for operators and maintenance personnel to ensure that they have the necessary knowledge and skills to operate and maintain our pumps effectively.
In addition, we offer a range of aftermarket services including spare parts, repair and refurbishment services to ensure that our customers' pumps remain in optimal condition throughout their lifespan.
Here are some frequently asked questions about our HIGHLAND HPV110 Hydraulic Piston Pumps:
Q: What is the model number of this product?
A: The model number for this product is HPV110.
Q: Where is this product manufactured?
A: This product is manufactured in CHINA DEZHOU.
Q: Does this product come with any certifications?
A: Yes, this product comes with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5 sets.
Q: What is the price range for this product?
A: The price range for this product is USD900-1400 per set.
Q: How is this product packaged for shipping?
A: This product is packaged in a Plywood Case for safe shipping.
Q: What is the delivery time for this product?
A: The delivery time for this product is 10 working days.
Q: What are the accepted payment methods for purchasing this product?
A: The accepted payment methods for purchasing this product are T/T and Western Union.
Q: What is the monthly supply ability for this product?
A: The monthly supply ability for this product is 200 sets.
