Product Details:
|
| Max.displacemen: | 110 Ml/r Displacement | Model: | HPV110 Model |
|---|---|---|---|
| Drive Mode: | Hydraulic Drive | Medium: | Hydraulic Oil |
| Function: | Hydraulic System Components | Structure: | Axial Piston |
| Warranty: | 1 Year | Material: | Cast Iron |
| Package: | Plywood Case | Product Name: | Control Mode And Usage Factors To Consider For Hydraulic Piston Pumps |
| Highlight: | Hydraulic Drive Piston Pumps,Hydraulic Oil Piston Pumps,Hydraulic System Components Piston Pumps |
||

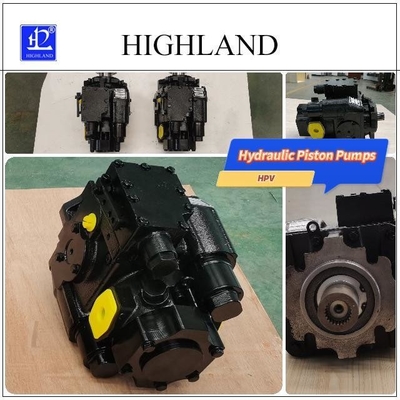

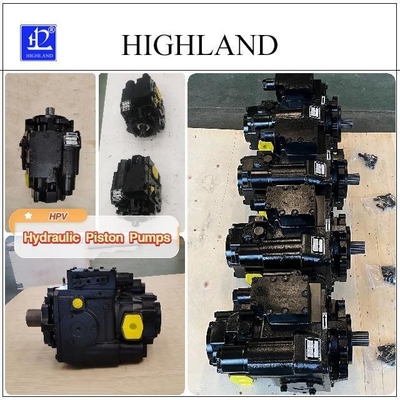

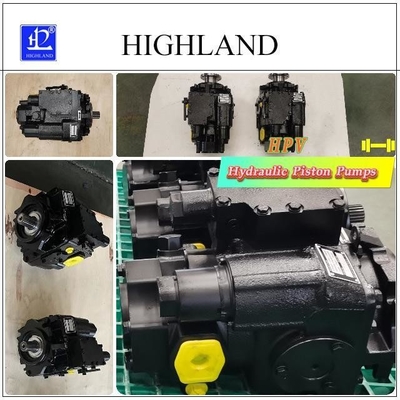

Control Mode and Usage Factors to Consider for Hydraulic Piston Pumps
Hydraulic axial variable displacement piston pumps basic information and selection:
Transform your manufacturing processes with our high-precision Hydraulic Piston Pumps. Engineered for the most demanding industrial applications, these pumps offer superior performance, enabling consistent pressure and flow that enhance machine tool accuracy and reliability. Opt for our pumps to ensure smooth operations and a significant boost in production efficiency.
Customers should determine the following requirements before ordering hydraulic pumps:
1. Hydraulic axial piston pump and motor displacements.
2. Rotation direction of hydraulic axial piston pump.
3. Hydraulic shaft type and shaft teeth quantity.
4. Control mode.
5. Usage of hydraulic axial variable displacement piston pump motor.
6. Send label or pictures as more as possible
42Mpa High Pressure Hydraulic piston pumps technical specification:
|
HPV Series Technical parameter |
||||||||
|
HPV hydraulic pump and HMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
weight |
HPV series hydraulic pump hydraulic oil emptying |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
HPV series hydraulic motor hydraulic oil emptying |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Hydraulic axial piston pumps usage:
Establish a proactive maintenance program for your hydraulic piston pumps to prevent unplanned downtime. This includes scheduling regular inspections, cleaning, and replacing parts before they fail. A proactive approach ensures your pumps run efficiently, minimizes costly repairs, and extends the overall life of your equipment, enhancing productivity and operational efficiency.
Notices:
Regular replacement of seals in your hydraulic piston pumps is essential to prevent leaks and maintain pressure integrity. Leaks can lead to reduced performance and potential system failures. By scheduling routine inspections and replacing worn seals, you can ensure continuous and efficient operation of your pumps, avoiding costly downtime and repairs.
FAQ of hydraulic axial piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic piston pumps, 20 years experiences in hydraulic industry for oversea and domestic markets. Welcome to visit our factory in Dezhou city Shandong province.
