Product Details:
|
| Usage: | Mobile Crusher | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Max Displacement: | 110ml/r | Power Source: | Hydraulic |
| Working Principle: | Hydraulic Transmission | Material: | Cast Iron |
| Loading Mode: | Manual Loading | Model: | HPV110 Hydraulic Pump |
| Highlight: | High Displacement Hydraulic Piston Pump,Mobile Crusher Hydraulic Piston Pump,HPV110 Hydraulic Piston Pump |
||

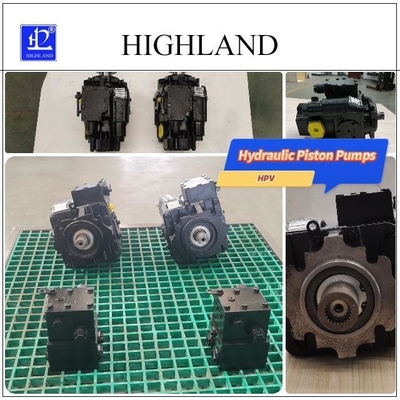

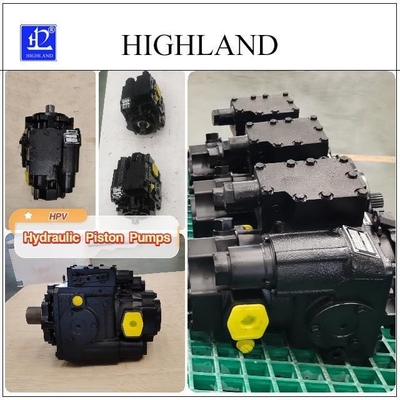

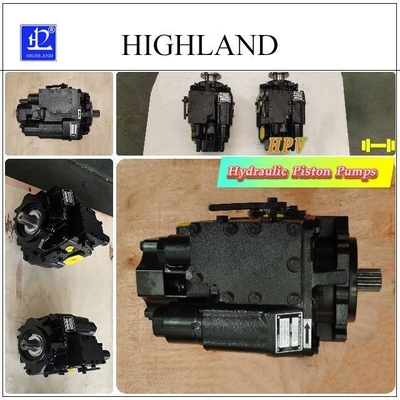

The HPV110 hydraulic pump is designed for use in mobile crushers. It is a reliable and efficient pump that delivers a consistent flow of hydraulic fluid to power the crusher's hydraulic system. This pump is perfectly suited for rugged mobile applications where reliable performance is essential.
This piston pump for sale comes with a one-year warranty. This means that if there are any defects or issues with the product, it will be repaired or replaced free of charge. The warranty is a testament to the quality of the product and the confidence that the manufacturer has in its reliability and durability.
The working principle of the HPV110 hydraulic pump is hydraulic transmission. It uses hydraulic fluid to transmit power from the engine to the hydraulic motor. This ensures that the motor receives a consistent flow of fluid at the required pressure and volume. The high pressure piston pump is able to generate high pressure and high volume output, making it ideal for use in heavy-duty applications.
This high-quality piston pump is perfect for your mobile crusher needs. Made of durable cast iron and utilizing hydraulic transmission, this standard pump is designed to handle high pressure situations with a max displacement of 110ml/r. Don't miss out on this piston pump for sale!
| Loading Mode | Manual Loading |
| Standard or Nonstandard | Standard |
| Working Principle | Hydraulic Transmission |
| Minimum Order | 1 Set |
| Warranty | 1 Year |
| Max Pressure | 42 MPA |
| Usage | Mobile Crusher |
| Material | Cast Iron |
| Model | HPV110 Hydraulic Pump |
| Max Displacement | 110ml/r |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 3 | |
With its PATENT CERTIFICATE certification, you can be confident that the HIGHLAND HPV110 meets the highest standards for quality and durability. And with a minimum order quantity of just 5 sets, it's easy to get the pumps you need to keep your operation running smoothly.
At a price point of USD900-1400 per set, the HIGHLAND HPV110 is an affordable option for businesses of all sizes. And with packaging details that include a sturdy plywood case, you can rest assured that your pumps will arrive in good condition, ready to use.
Whether you're looking for a standard or nonstandard hydraulic piston pump, the HIGHLAND HPV110 is a great choice. With a max displacement of 110ml/r, it's capable of handling a wide range of applications with ease. And because it runs on hydraulic oil, it's a reliable choice for hydraulic transmission systems of all kinds.
With a delivery time of just 10 working days and payment terms that include T/T and Western Union, it's easy to get the HIGHLAND HPV110 hydraulic piston pump you need, when you need it. And with a supply ability of 200 sets per month, you can be confident that HIGHLAND has the resources to meet your needs, no matter how large or small your operation.
So why wait? Order your HIGHLAND HPV110 hydraulic piston pump today and experience the quality and reliability that HIGHLAND is known for.
Q1: Could I have a sample order?
A: Yes, we welcome a sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: No one can match our dedication to quality, honesty and value. Experienced hydraulic pump experts, experienced customer service, experienced technicians dedicated to their work, process each and every order. Each order is carefully inspected before it leaves our facility.
Also we offer 1 year gurantee.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance paid before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing producing hydraulic pumps and motors.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tags: HPV110 hydraulic piston pump, mobile crusher hydraulic pump, hydraulic pumps and motors.
