Product Details:
|
Max.displacemen: | 110cc/r+110cc/r | Rated Pressure: | 350Bar Tandem Hydraulic Pump |
---|---|---|---|
Max Pressure: | 420Bar Tandem Hydraulic Pump | Material: | Cast Iron |
Medium: | Hydraulic Oil | Warranty: | 1 Year |
Function: | Hydraulic System Components | Package: | Plywood Case |
Product Nam: | Seamless Integration Of Power And Precision With Tandem Hydraulic Pumps | Rotation Direction: | Left Or Right |
Highlight: | Power Tandem Hydraulic Pumps,Tandem Hydraulic Pumps,Precision Tandem Hydraulic Pumps |

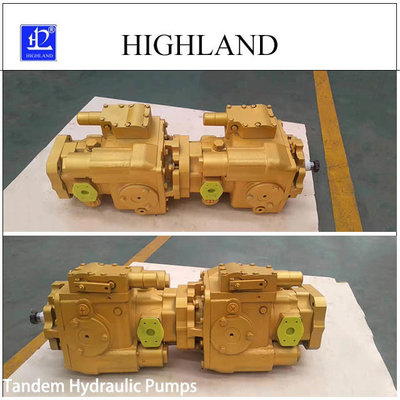

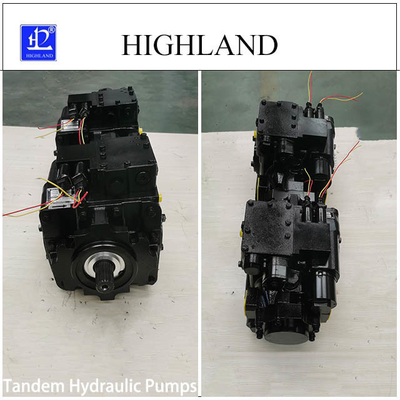

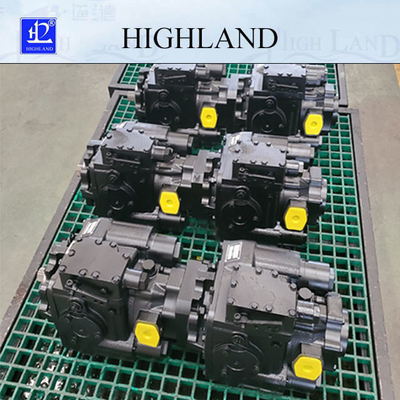

Seamless Integration of Power and Precision with Tandem Hydraulic Pumps
Tandem hydraulic pumps basic information:
Experience unparalleled efficiency with our tandem hydraulic pumps, designed to drive your industrial applications to new heights. These pumps deliver a consistent, powerful hydraulic flow, ensuring that your operations run smoothly without interruption. Ideal for rigorous industrial environments, our pumps are synonymous with durability and high performance, helping you achieve more in less time.
Tandem hydraulic pumps main features:
Variable displacement axial piston pumps
Swash plate structure design
Closed circuit hydraulic system applications
Wide range of displacement
CW or CCW, left or right rotation direction
Compact structure
High efficiency, high pressure
Multiple control modes
Cutom manufacturing and design
Tandem hydraulic pumps technical specification:
HPV hydraulic pump and HMF hydraulic motor series | ||||||||
Displacement | Max displacement | ml/r | 110+110 | |||||
Speed | Max continuous working speed (Full load condition) |
r/min | 2900 | |||||
Rated speed | r/min | 2500 | ||||||
Min continuous working speed | r/min | 500 | ||||||
Pressure | Rated working pressure | Mpa | 35 | |||||
Max working pressure (transient) | Mpa | 42 | ||||||
Continuous working pressure | Mpa | 30 | ||||||
Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
Torque | Continuous output torque (Under continuous working pressure) |
Nm | 535.3 | |||||
Max output torque | Nm | 749 | ||||||
Power | Continuous output power | KW | 149 | |||||
Max power | KW | 173 | ||||||
Temperature | Allowable shell temperature | ℃ | 80 | |||||
Max working temperature of oil tank | ℃ | 70 | ||||||
weight | HPV series hydraulic pump hydraulic oil drain | kg | 164 |
Highland company service for tandem hydrauilc pumps:
Quality service
One to one service, can provide design and installation solutions;
Online service for quick response and consultation;
Solve difficult after-sales problems;
Lightning supply
Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;
Commitment to warranty tandem hydraulic pump within one year;
Provide personalized and customized services according to customer needs;
Notices:
Ensure that your tandem hydraulic pumps operate within the recommended pressure ranges. Consistent monitoring helps detect any abnormalities early, preventing damage and ensuring efficient operation. Utilizing pressure gauges and sensors will help maintain the integrity of your pumps and avoid the costly consequences of over-pressurization or under-pressurization.
Hydraulic oil notice of tandem hydraulic pumps:
Understanding the Operating Parameters: Tandem Hydraulic Pumps are complex devices that offer multiple flow rates and pressures. Before using, it's crucial to understand the operating parameters of each pump within the tandem setup. Operating beyond these specifications can result in decreased efficiency, increased wear, and potential pump failure.
FAQ of tandem hydraulic pumps:
Q1, Are you a factory or trading company?
A: We are a factory integrating research, development, production and sales.
Q2, What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3, How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the model and
the quantity of your order.
Q4, How can I get the new price of a product?
A: Please provide the exact or approximate quantity, packing details, destination port or special requirements, so we could give
you the price accordingly.
Q5, How do you make a price offer and how long is its validity?
A: We usually quote within 24 hours by email after we get your inquiry .If you are very urgent to get the price,please call us or
tell us in your email so that we will regard your inquiry priority. The price valid within 7 days.
Q6, Do you accept small order or Sample order?
A: Yes, we also accept sample order.
Q7, Do you accept third party inspection?
A: Yes, we do.
Q8, Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9, How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter.
