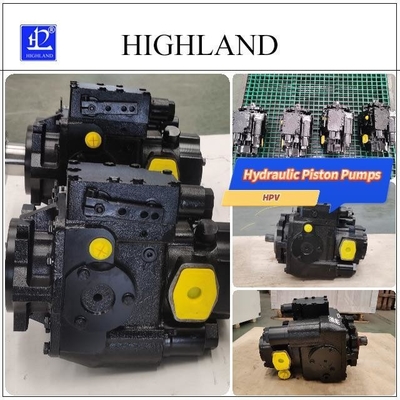

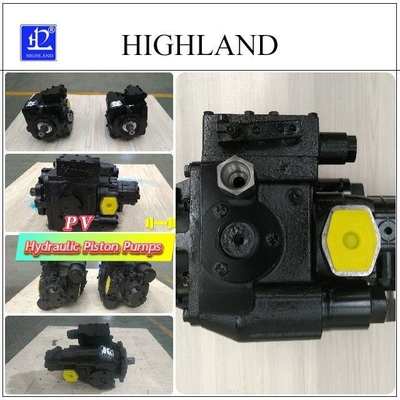

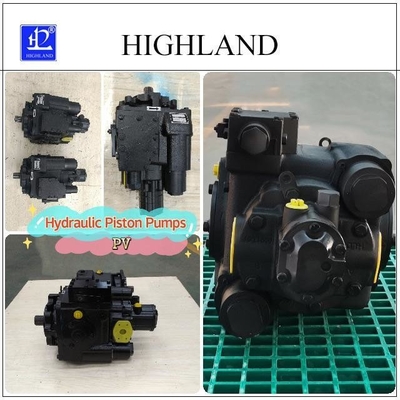

HPV110-MA-R-23 Hydraulic Pump Withstand 42 MPA High Pressure For Combine Harvester

HPV110-MA-R-23 Hydraulic Pump Withstand 42 MPA High Pressure For Combine Harvester

Product Description:

Our hydraulic piston pump is a standard product, suitable for a wide range of agricultural machinery. It is designed to be powered by hydraulic power sources, making it easy to integrate into your existing machinery.

With its advanced hydraulic transmission working principle, our hydraulic piston pump provides precise and efficient operation, ensuring optimal performance in all conditions. Its high-quality design and construction ensure long-lasting durability, making it a great investment for your agricultural machinery needs.

You can trust in our hydraulic piston pump for sale to deliver the power and performance you need for your agricultural machinery. Its standard design ensures easy installation and compatibility with a wide range of equipment, while its high-quality materials and construction ensure reliable operation for years to come.

Don't wait, get your high quality hydraulic pump today and experience the power and efficiency of hydraulic transmission in your agricultural machinery. Order now and take advantage of our great deals on hydraulic piston pump for sale.

Features:

• Product Name: Hydraulic Piston Pumps
• Model: HPV110-MA-R-23 Hydraulic Pump
• Max Pressure: 42 MPA
• Power Source: Hydraulic
• Loading Mode: Manual Loading
• Standard Or Nonstandard: Standard

Get the best hydraulic piston pump for sale with the HPV110-MA-R-23 model. This pump has a max pressure of 42 MPA and is powered by hydraulic. It has a manual loading mode and is a standard model.



Technical Parameters:

Max Pressure:	42 MPA
Standard Or Nonstandard:	Standard
Max Displacement:	110ml/r
Material:	Cast Iron
Medium:	Hydraulic Oil
Working Principle:	Hydraulic Transmission
Model:	HPV110-MA-R-23 Hydraulic Pump
Minimum Order:	1 Set
Usage:	Combine Harvester Etc Agricultural Machinery
Loading Mode:	Manual Loading

HPV Series Technical parameter
HPV hydraulic pump and HMF hydraulic motor series			30	50	70	90	110	130
Displacement	Max displacement	ml/r	30	50	70	90	110	130
Speed	Max continuous working speed (Full load condition)	r/min	3500	3500	3200	3200	2900	2900
	Rated speed	r/min	2500
	Min continuous working speed	r/min	500
Pressure	Rated working pressure	Mpa	35
	Max working pressure (transient)	Mpa	42
	Continuous working pressure	Mpa	30
	Allowable shell pressure (Absolute)	Mpa	Constant0.25, Peak value0.5
Torque	Continuous output torque (Under continuous working pressure)	Nm	162.3	252.3	342.6	432.9	535.3	632.4
	Max output torque	Nm	227	353	480	606	749	885
Power	Continuous output power	KW	45	79	107	139	149	176
	Max power	KW	62	95	114	150	173	205
Temperature	Allowable shell temperature	℃	80
	Max working temperature of oil tank	℃	70
Weight	HPV series hydraulic pump hydraulic oil emptying	kg	45	46	63	64	82	88
	HMF series hydraulic motor hydraulic oil emptying	kg	30	30	36	36	36	38



Applications:

The HPV110-MA-R-23 hydraulic pump is designed for standard use and is capable of reaching a maximum pressure of 42 MPA. Its working principle is hydraulic transmission, making it highly efficient and effective for a variety of applications.

This hydraulic pump is perfect for a range of occasions and scenarios. Its high pressure capabilities make it ideal for heavy-duty machinery and equipment, such as construction and mining equipment. Its reliable and efficient design also makes it suitable for use in manufacturing and industrial settings.

The HPV110-MA-R-23 hydraulic pump is easy to use and maintain, making it a popular choice among professionals in the field. It is supplied with a 1-year warranty and comes packaged in a durable plywood case for safe transport and storage.

HIGHLAND is committed to providing quality products and services to their customers. With a supply ability of 200 sets per month, they are able to meet the demands of a variety of industries. Payment terms include T/T and Western Union, and delivery time is typically 10 working days.

Invest in the reliable and efficient HPV110 hydraulic pump from HIGHLAND for all your high pressure piston pump needs.

Support and Services:



Our Hydraulic Piston Pumps are designed with the highest quality materials and manufactured with the latest technology to ensure durability and reliability. However, if you encounter any issues or have questions regarding the installation, operation, or maintenance of our products, our technical support team is available to assist you.

We offer a wide range of technical support services, including:

• Phone and email support
• On-site troubleshooting and repair
• Product training and education
• Warranty and service contract support

Our team of experienced technicians and engineers are dedicated to providing you with prompt and accurate support to minimize any downtime and maximize your productivity. Contact us today to learn more about our technical support services.

FAQ:

Q: What is the brand name of the hydraulic piston pump?

A: The brand name of the hydraulic piston pump is HIGHLAND.

Q: What is the model number of the hydraulic piston pump?

A: The model number of the hydraulic piston pump is HPV110-MA-R-23.

Q: What is the place of origin of the hydraulic piston pump?

A: The place of origin of the hydraulic piston pump is CHINA DEZHOU.

Q: What certification does the hydraulic piston pump have?

A: The hydraulic piston pump has a PATENT CERTIFICATE.

Q: What is the minimum order quantity for the hydraulic piston pump?

A: The minimum order quantity for the hydraulic piston pump is 5 sets.

Q: What is the price range for the hydraulic piston pump?

A: The price range for the hydraulic piston pump is between USD900-1400 per set.

Q: What are the packaging details of the hydraulic piston pump?

A: The hydraulic piston pump is packaged in a Plywood Case.

Q: What is the delivery time for the hydraulic piston pump?

A: The delivery time for the hydraulic piston pump is 10 working days.

Q: What are the payment terms for the hydraulic piston pump?

A: The payment terms for the hydraulic piston pump are T/T and Western Union.

Q: What is the supply ability of the hydraulic piston pump?

A: The supply ability of the hydraulic piston pump is 200 sets per month.



Tags: HPV110-MA-R-23 hydraulic pump, high pressure hydraulic pump, combine harvester hydraulic pump
