Product Details:
|
| Usage: | Combine Harvester Etc Agricultural Machinery | Loading Mode: | Manual Loading |
|---|---|---|---|
| Working Principle: | Hydraulic Transmission | Standard Or Nonstandard: | Standard |
| Power Source: | Hydraulic | Warrantry: | 1 Year |
| Max Displacement: | 110ml/r | Medium: | Hydraulic Oil |
| Highlight: | HPV110-MA-R-23 Hydraulic Piston Pump,High Pressure Hydraulic Piston Pump,Agricultural Machinery Hydraulic Piston Pump |
||

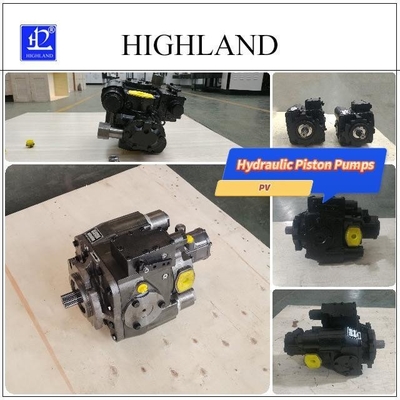

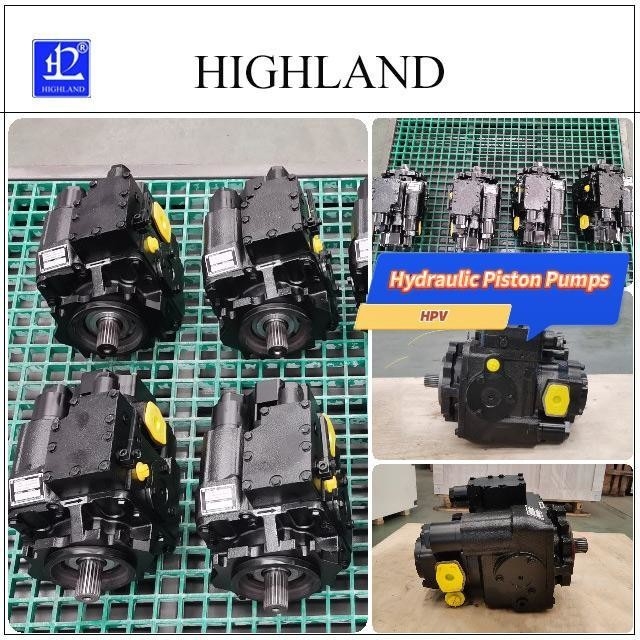

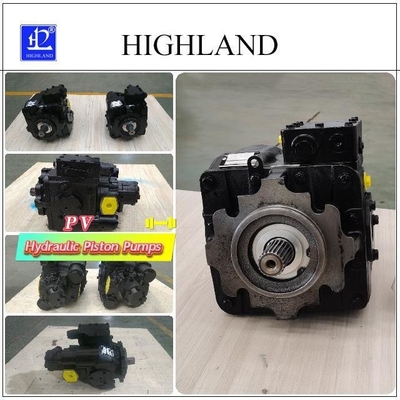

The HPV110-MA-R-23 Hydraulic Pump is made with high quality cast iron material, ensuring durability and long-lasting performance. The cast iron material is well-known for its strength and resistance to wear and tear, making it an ideal choice for heavy-duty hydraulic applications.
This hydraulic pump operates on hydraulic power, making it a reliable and efficient option for any hydraulic system. The HPV110 hydraulic pump is designed to handle high pressure applications with ease, making it a popular choice among professionals in the industry.
The HPV110 hydraulic pump has a maximum pressure of 42 MPA, making it a powerful and reliable option for any hydraulic system. With this level of pressure, the HPV110 hydraulic pump can handle even the most challenging hydraulic applications with ease.
In addition to its impressive technical specifications, the HPV110 hydraulic pump is also easy to install and use. With its user-friendly design, this hydraulic pump can be easily integrated into any hydraulic system, ensuring smooth and efficient operation.
Overall, the HPV110 hydraulic pump is a high-quality, reliable, and powerful option for any hydraulic system. Whether you are working on a high pressure hydraulic application or just need a durable and efficient hydraulic pump, the HPV110 hydraulic pump is the perfect choice.
| Material: | Cast Iron |
| Max Displacement: | 110ml/r |
| Model: | HPV110-MA-R-23 Hydraulic Pump |
| Loading Mode: | Manual Loading |
| Warrantry: | 1 Year |
| Medium: | Hydraulic Oil |
| Minimum Order: | 1 Set |
| Usage: | Combine Harvester Etc Agricultural Machinery |
| Standard Or Nonstandard: | Standard |
| Max Pressure: | 42 MPA |
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Whether you are looking for a hydraulic piston pump for use in construction, manufacturing, or any other industry, the HPV110-MA-R-23 is an excellent choice. With its patent certificate and high-quality construction, this pump is built to last and can provide reliable performance even in demanding applications.
With a maximum displacement of 110ml/r, the HPV110-MA-R-23 is capable of delivering high-pressure pumping power that is ideal for a range of different tasks. Whether you need to move large volumes of fluid quickly or you need to generate high-pressure hydraulic power, this pump is more than up to the task.
In addition to its impressive performance capabilities, the HPV110-MA-R-23 is also incredibly easy to use. With a manual loading mode, this pump is simple and straightforward to operate, making it a great option for both experienced professionals and those who are new to using hydraulic piston pumps.
So if you are looking for a high-quality hydraulic piston pump that can deliver reliable performance in a range of different scenarios and occasions, look no further than the HIGHLAND HPV110-MA-R-23. With its patent certificate, minimum order quantity of just 5 sets, and price range of USD900-1400 per set, this pump is an excellent value for anyone in need of high-pressure pumping power. And with its plywood case packaging, 10 working day delivery time, T/T and Western Union payment options, and supply ability of 200 sets per month, you can rest assured that you will receive your pump in a timely and efficient manner.
Order your HIGHLAND HPV110-MA-R-23 hydraulic piston pump today and experience the power and reliability of this exceptional piece of equipment for yourself!
Our Hydraulic Piston Pumps are designed to provide high performance and reliability in a variety of applications. Our technical support team is available to assist with any questions or concerns regarding installation, operation, and maintenance of our pumps.
We also offer a range of services to ensure that your pump is operating at peak performance. These services include:
Our team of experts is dedicated to providing you with the highest quality of service and support. Contact us today to learn more about our Hydraulic Piston Pumps and how we can assist you.
Q: What is the brand name of this hydraulic piston pump?
A: The brand name of this hydraulic piston pump is HIGHLAND.
Q: What is the model number of this pump?
A: The model number of this pump is HPV110-MA-R-23.
Q: Where is this pump manufactured?
A: This pump is manufactured in CHINA DEZHOU.
Q: Does this pump come with any certification?
A: Yes, this pump comes with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 5 sets.
Q: What is the price range for this product?
A: The price range for this product is USD900-1400 per set.
Q: How is this product packaged for delivery?
A: This product is packaged in a Plywood Case for delivery.
Q: How long does it take for delivery of this product?
A: The delivery time for this product is 10 working days.
Q: What are the accepted payment methods for this product?
A: The accepted payment methods for this product are T/T and Western Union.
Q: What is the supply ability for this product?
A: The supply ability for this product is 200 sets per month.
