Product Details:
|
| Standard Or Nonstandard: | Standard | Max Displacement: | 110ml/r |
|---|---|---|---|
| Usage: | Combine Harvester Etc Agricultural Machinery | Power Source: | Hydraulic |
| Material: | Cast Iron | Model: | HPV110-MA-R-23 Hydraulic Pump |
| Warrantry: | 1 Year | Loading Mode: | Manual Loading |
| Highlight: | Combine Harvester Hydraulic Pump,HPV110-MA-R-23 Hydraulic Pump,110ml/r Displacement Hydraulic Pump |
||

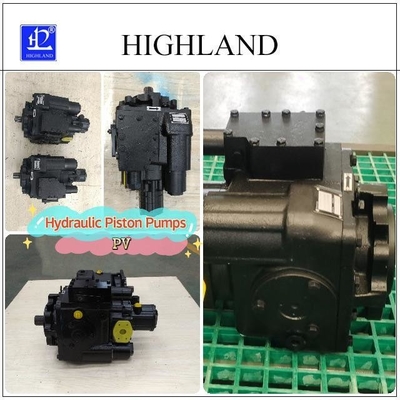

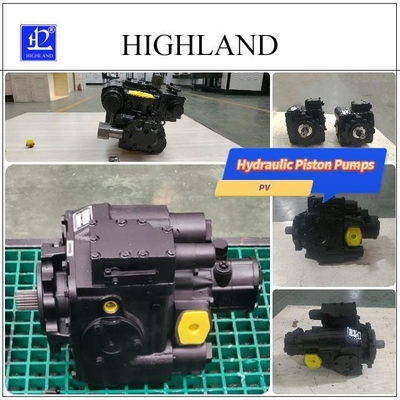

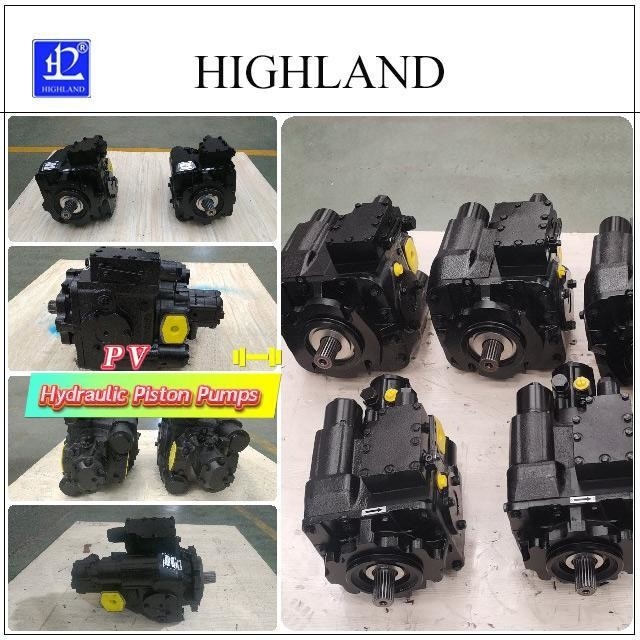

The HPV110-MA-R-23 Hydraulic Pump is capable of a max displacement of 110ml/r, making it a powerful and effective tool for any hydraulic transmission. This hydraulic piston pump is built to last, with a standard design that ensures maximum compatibility with a wide range of equipment and machinery.
Constructed from cast iron, the HPV110-MA-R-23 Hydraulic Pump is a durable and reliable choice for any hydraulic system. Its high quality construction ensures that it is able to withstand even the most demanding industrial applications, providing long-lasting performance and reliability.
Whether you are looking for a standard or nonstandard hydraulic piston pump, the HPV110-MA-R-23 is an excellent choice. Its standard design ensures that it is compatible with a wide range of equipment and machinery, while its high quality construction ensures that it is able to perform reliably in even the most challenging environments.
In summary, the HPV110-MA-R-23 Hydraulic Pump is a high quality hydraulic pump that is perfect for a wide range of industrial applications. With its high pressure piston pump and hydraulic transmission working principle, it is capable of providing reliable and efficient performance. Whether you need a standard or nonstandard hydraulic piston pump, the HPV110-MA-R-23 is an excellent choice that is built to last.
This Hydraulic Piston Pump is a reliable and durable option for anyone in need of a piston pump for sale. Made from cast iron, it is built to last and is a standard option for those in the industry. With a manual loading mode and max pressure of 42 MPA, it is a top-performing model. Choose the HPV110-MA-R-23 Hydraulic Pump for your pumping needs.
| Max Pressure: | 42 MPA |
| Max Displacement: | 110ml/r |
| Warranty: | 1 Year |
| Loading Mode: | Manual Loading |
| Usage: | Combine Harvester Etc Agricultural Machinery |
| Working Principle: | Hydraulic Transmission |
| Material: | Cast Iron |
| Standard Or Nonstandard: | Standard |
| Model: | HPV110-MA-R-23 Hydraulic Pump |
| Medium: | Hydraulic Oil |
| HPV Series Technical parameter | ||||||||
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| Weight |
HPV series hydraulic pump hydraulic oil emptying |
kg | 45 | 46 | 63 | 64 | 82 | 88 |
|
HMF series hydraulic motor hydraulic oil emptying |
kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Whether you need a hydraulic pump for construction, mining, or industrial purposes, the HPV110-MA-R-23 is the perfect choice. It can deliver a maximum pressure of 42 MPA, making it suitable for high-pressure applications. This hydraulic pump is powered by a hydraulic power source, providing a reliable and efficient power output that can handle even the toughest tasks.
If you are looking for a piston pump for sale, the HPV110-MA-R-23 is a great option. It comes with a 1-year warranty, giving you peace of mind knowing that you are investing in a quality product. The minimum order quantity for this product is 5 sets, with a price range of USD900-1400 per set. It comes in a sturdy plywood case for safe and secure transportation.
The HPV110-MA-R-23 is a standard model that can handle various applications. It is designed for easy installation and maintenance, making it a cost-effective solution for your hydraulic pumping needs. This hydraulic piston pump has a supply ability of 200 sets per month, ensuring that you can get your hands on this product when you need it.
When it comes to product application occasions and scenarios, the HPV110-MA-R-23 is perfect for heavy-duty tasks such as construction, mining, and industrial applications. Its high-pressure output and reliable power source make it an ideal choice for tasks that require a lot of power and efficiency. This hydraulic piston pump is designed to provide a long-lasting and cost-effective solution for your hydraulic pumping needs.
Overall, if you are looking for a reliable and efficient hydraulic piston pump, the HPV110-MA-R-23 is the perfect product for you. With its high-pressure output, reliable power source, and easy installation and maintenance, this product will provide you with a cost-effective solution for your hydraulic pumping needs.
Our Hydraulic Piston Pumps are designed to provide reliable and efficient performance in a variety of applications. We offer a range of technical support and services to ensure that our customers get the most out of their pump systems:
- Installation guidance and support
- Troubleshooting assistance
- Maintenance recommendations
- Repair and replacement services
- On-site training for operators and maintenance personnel
Our team of experts is dedicated to providing exceptional customer service and technical support to help you maximize the performance of your hydraulic piston pump system.
Q: What is the brand name of this hydraulic piston pump?
A: The brand name of this hydraulic piston pump is HIGHLAND.
Q: What is the model number of this hydraulic piston pump?
A: The model number of this hydraulic piston pump is HPV110-MA-R-23.
Q: Where is this hydraulic piston pump made?
A: This hydraulic piston pump is made in CHINA DEZHOU.
Q: Is this hydraulic piston pump certified?
A: Yes, this hydraulic piston pump is certified with a PATENT CERTIFICATE.
Q: What is the minimum order quantity for this hydraulic piston pump?
A: The minimum order quantity for this hydraulic piston pump is 5 sets.
Q: What is the price range of this hydraulic piston pump?
A: The price range of this hydraulic piston pump is USD900-1400 per set.
Q: What are the packaging details for this hydraulic piston pump?
A: The packaging details for this hydraulic piston pump are plywood case.
Q: What is the delivery time for this hydraulic piston pump?
A: The delivery time for this hydraulic piston pump is 10 working days.
Q: What are the payment terms for this hydraulic piston pump?
A: The payment terms for this hydraulic piston pump are T/T and Western Union.
Q: What is the supply ability for this hydraulic piston pump?
A: The supply ability for this hydraulic piston pump is 200 sets per month.
