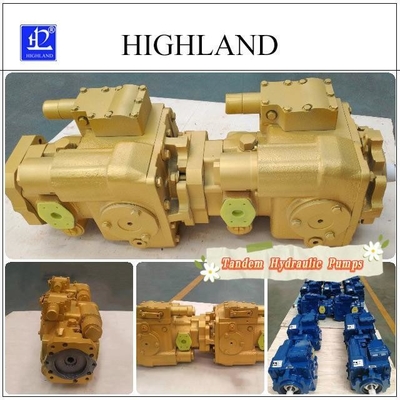

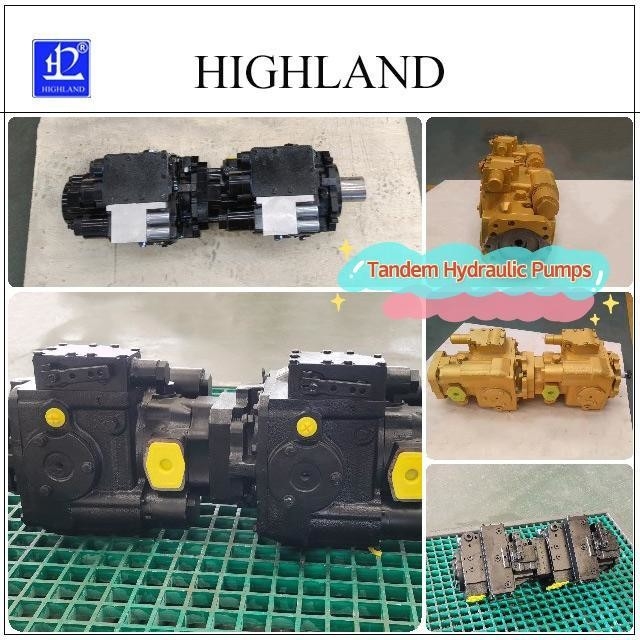

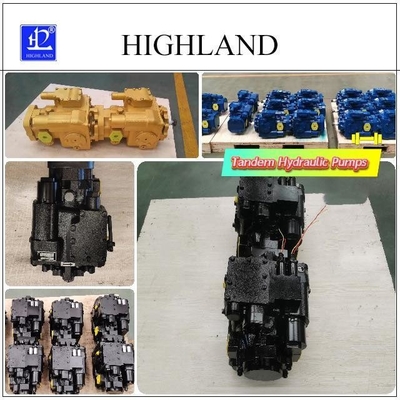

Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes

Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes
Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes
Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes

Large Image :  Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes

Product Details:
Place of Origin: CHINA DEZHOU
Brand Name: HIGHLAND
Certification: PATENT CERTIFICATE
Model Number: HPV110-110
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD3000/set
Packaging Details: Plywood case
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month

Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes

Description
Max.displacemen: 110cc/r+110cc/r Rated Pressure: 350Bar Tandem Hydraulic Pump
Max Pressure: 420Bar Tandem Hydraulic Pump Material: Cast Iron
Medium: Hydraulic Oil Warranty: 1 Year
Function: Hydraulic System Components Package: Plywood Case
Product Nam: Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes Rotation Direction: Left Or Right
Highlight:

Industrial Processes Tandem Hydraulic Pumps

,

Industrial Processes Hydraulic Control

,

Exact Hydraulic Control Tandem Hydraulic Pumps

Exact Hydraulic Control with Tandem Hydraulic Pumps for Industrial Processes



Tandem hydraulic pumps basic information:



Engineered for excellence, our tandem hydraulic pumps are designed to meet the high demands of modern industrial environments. These pumps offer exceptional durability and performance, enabling your machinery to operate at its best. With our tandem hydraulic pumps, you can achieve greater control, reduce downtime, and improve overall productivity in your operations.



Tandem hydraulic pumps main features:



Variable displacement axial piston pumps

Swash plate structure design

Closed circuit hydraulic system applications

Wide range of displacement

CW or CCW, left or right rotation direction

Compact structure

High efficiency, high pressure

Multiple control modes

Cutom manufacturing and design



Tandem hydraulic pumps technical specification:



HPV hydraulic pump and HMF hydraulic motor series
Displacement Max displacement ml/r 110+110
Speed Max continuous working speed
(Full load condition)
r/min 2900
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 535.3
Max output torque Nm 749
Power Continuous output power KW 149
Max power KW 173
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
weight HPV series hydraulic pump hydraulic oil drain kg 164





Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes 0



Highland company service for tandem hydrauilc pumps:



Quality service

One to one service, can provide design and installation solutions;

Online service for quick response and consultation;

Solve difficult after-sales problems;



Lightning supply

Regular single product supply for immediate delivery, batch can be quickly shipped according to customer demand;

Commitment to warranty tandem hydraulic pump within one year;

Provide personalized and customized services according to customer needs;





Notices:



Ensure that the filters in your tandem hydraulic pumps are regularly inspected and replaced according to the manufacturer’s recommendations. Clean filters are vital for preventing contaminants from entering your hydraulic system, which can lead to blockages, reduced efficiency, and potential damage to your pumps. Regular filter maintenance helps keep your hydraulic system running smoothly and efficiently.





Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes 1



Hydraulic oil notice of tandem hydraulic pumps:



Understanding the Operating Parameters: Tandem Hydraulic Pumps are complex devices that offer multiple flow rates and pressures. Before using, it's crucial to understand the operating parameters of each pump within the tandem setup. Operating beyond these specifications can result in decreased efficiency, increased wear, and potential pump failure.



FAQ of tandem hydraulic pumps:



Q1, Are you a factory or trading company?
A: We are a factory integrating research, development, production and sales.

Q2, What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3, How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the model and
the quantity of your order.

Q4, How can I get the new price of a product?
A: Please provide the exact or approximate quantity, packing details, destination port or special requirements, so we could give
you the price accordingly.

Q5, How do you make a price offer and how long is its validity?
A: We usually quote within 24 hours by email after we get your inquiry .If you are very urgent to get the price,please call us or
tell us in your email so that we will regard your inquiry priority. The price valid within 7 days.

Q6, Do you accept small order or Sample order?
A: Yes, we also accept sample order.


Q7, Do you accept third party inspection?
A: Yes, we do.

Q8, Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q9, How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter.



Exact Hydraulic Control With Tandem Hydraulic Pumps For Industrial Processes 2
