Product Details:
|
| Product Model: | PV21 | Category: | Closed Circuit Piston Pump |
|---|---|---|---|
| Type: | Hydraulic Components | Principle: | Hydraulic Transmission |
| Material: | Cast Iron | Efficiency: | 97% |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | PV21 Transit Mixer Hydraulic Pump,3500rpm Transit Mixer Hydraulic Pump,PV21 Closed circuit piston pump |
||

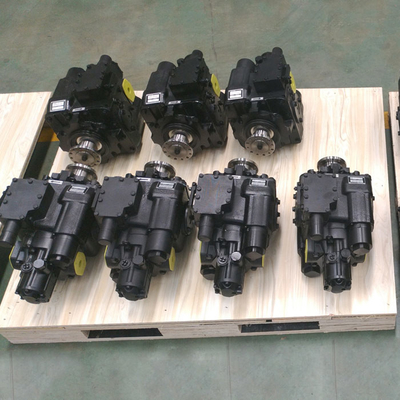

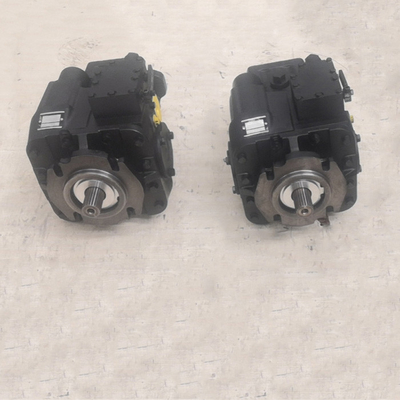

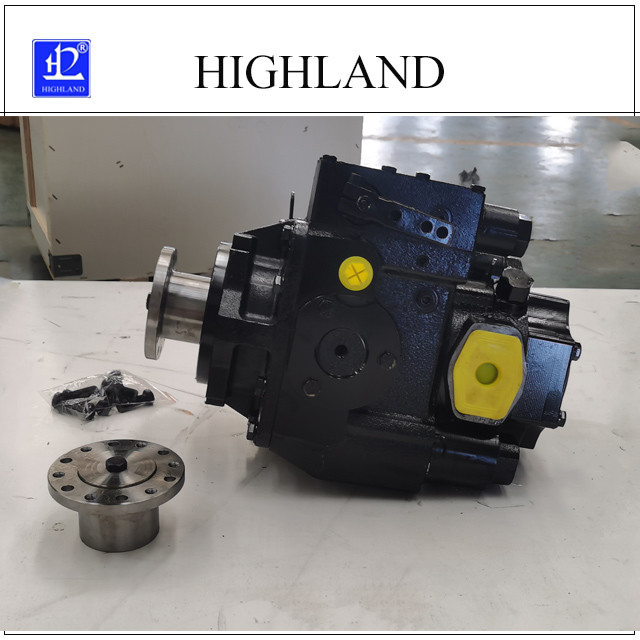

Transit mixer PV21 hydraulic pumps substitute imported products
Transit mixer PV21 hydraulic pumps basic introduction:
Transit mixer hydraulic pump is to convert the mechanical energy of power machine into the pressure energy of liquid. The output flow can be adjusted according to need is called variable pump, the flow can not be adjusted is called fixed pump. Our mixer hydraulic pump is variable displacement piston pump.
PV21hydraulic pumps performance and characteristics:
Series 20 axial piston variable displacement pumps are swash plate design with variable displacement, and are intended for closed circuit applications.
The flow rate is proportional to the piston pump input speed and displacement.
The latter is infinitely adjustable between zero and maximum displacement.
Flow direction is reversed by tilting the swash plate to the opposite side of the neutral (zero displacement) position.
Transit mixer technical parameters:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Our advantages of transit mixer hydraulic pump:
Hydraulic oil notice of hydraulic pumps:
Hydraulic system pollution will affect the normal operation of the mixer truck at any time, and affect the service life of hydraulic pumps and hydraulic motors, serious damage to the pump and motor, so it is very important for the hydraulic system.
Oil change and oil filter replacement:
1. 500 working hours for first run.
2. Replace every 1500 working hours from now on, but at least once a year.
3. Note: When changing oil, replace hydraulic filter element at the same time.
Tags: mixer hydraulic pumps, transit mixer hydraulic pumps, PV21 hydraulic pumps
