Product Details:
|
| Product Model: | PV89 | Max Displacement: | 89.0ml/r |
|---|---|---|---|
| Type: | Hydraulic Components | Category: | Variable Displacement Axial Piston Pump |
| Material: | Cast Iron | Color: | Black |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | PV23 Mixer Hydraulic Pump,3200r/Min Mixer Hydraulic Pump,Construction Agitator Truck Hydraulic Pump |
||

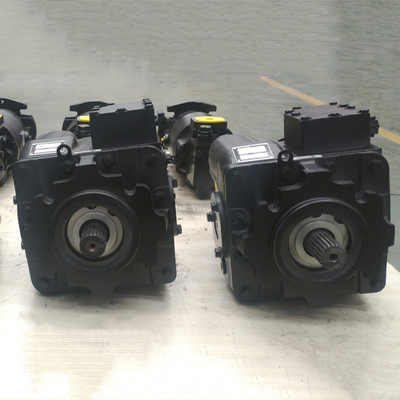

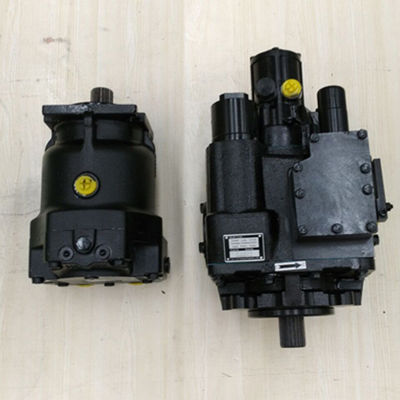

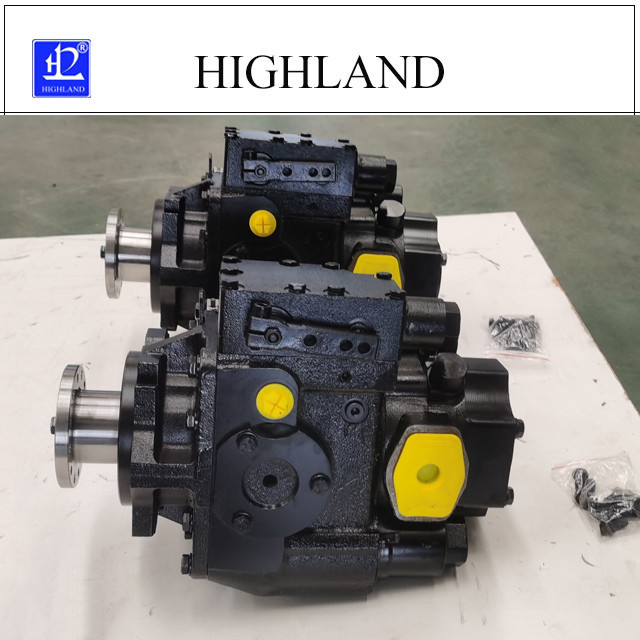

Construction agitator truck PV23 hydraulic pumps easy to maintain
Agitator truck hydraulic pumps basic introduction:
Agitator truck hydraulic pump can produce hydraulic through tubing to the hydraulic motor, hydraulic motor to convert hydraulic energy into kinetic energy and through reducer slow down and increase torque, transfer to the mixing tank, by adjusting the servo controller angle of hydraulic pump so as to realize reversing and speed of the drum, in order to realize concrete loading, mixing, stirring, discharging and other operations.
PV23 hydraulic pumps main features:
PV23 agitator truck hydraulic pump technical specification:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Our service of concrete mixer hydraulic pump:
1. Quick response within 24 hours
2. Accept small order(MOQ:1pcs)
3. We are a manufacturer, we can produce hydraulic pumps for you at the moment of placing the order with most competitive price.
4. Excellent after-sales service
5. Strict quality control system. 100% factory testing and inspection personnel in accordance with international standards to ensure the quality of products manufactured.
FAQ of PV23 hydraulic pump:
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic pumps manufacturer.
Q: What is the MOQ?
A:1pcs is also OK.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Is your company accept customization?
A: We have our own factory, and excellent design team,and we accept OEM.
Tags: agitator truck hydraulic pumps, PV23 hydraulic pumps, construction truck hydraulic pumps
