Easy Maintenance Underground Truck Hydraulic Pump Hydraulic System Components

Pharmaceutical machinery underground truck hydraulic pumps easy maintenance

Quick Detail:

· Cast iron housing

· Hydraulic components

· Model  PV22+MV23

· Hydraulic system power components

· Principle hydraulic transmission

· Features cost-effective

· Simple layout

· System Solutions

· Work fast

· Fully replace imported products

· Patent certificate certification

· Application  pharmaceutical machinery underground truck hydraulic pumps

· 1 year warranty

Description:

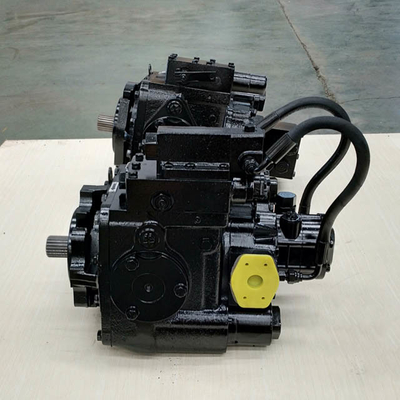

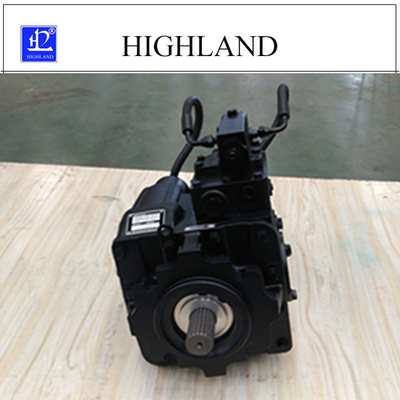

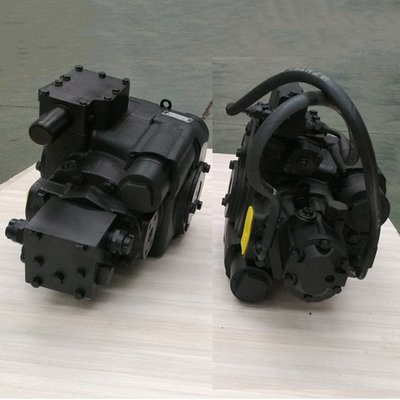

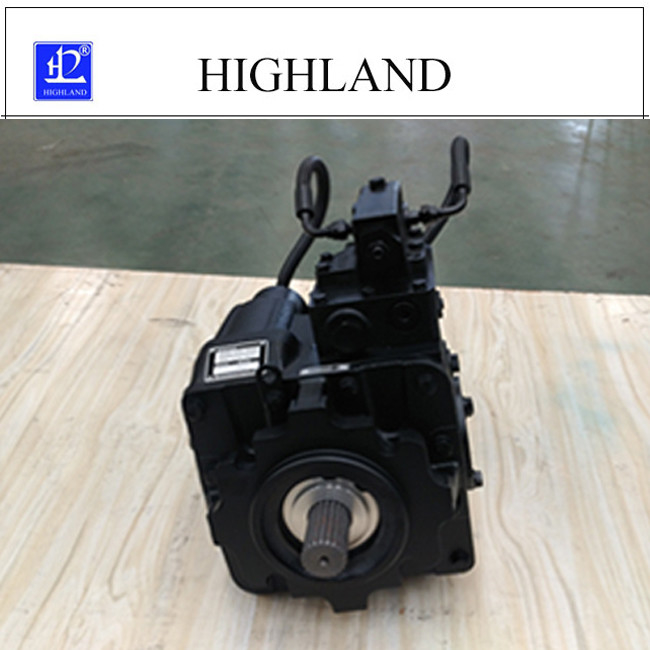

The hydraulic pump of the underground electric scraper produced by the company is a swash plate displacement pump, which is mainly used in a closed circuit drive system. The direction of the pump output flow changes as the swashplate angle crosses the neutral or zero displacement position;

Axial plunger variable, its product is easy to handle.

Tapered roller bearings, the pump can withstand high radial loads;

The mechanical servo displacement control mechanism ensures that the swash plate is stored in the set position, thereby maintaining the stability of the displacement and the set value;

After releasing the control handle, the swash plate automatically returns to the neutral position, and the pump flow reduces to zero;

With a suitable shaft seal, the pump will not send leakage when the case pressure rises under low temperature conditions;

Servo control valves can integrate auxiliary control functions such as pressure setting or remote control systems;

The axial plunger product is designed for easy maintenance, and the pump can be completely and reassembled with standard receiving tools, and all components and components are highly interchangeable;

 PV22+MV23  Technical parameter:


Notices:

Hydraulic oil
The suitable replacement period for hydraulic oil in a sealed tank system is 2000 hours, and more often if the hydraulic oil is contaminated with water or other external materials or subjected to abnormal operating conditions.
As a general recommendation, the 10µ inlet oil filter should be replaced every spring or every 1500 hours (whichever occurs first) on a sealed tank system, or in an open tank system with an air filter fill cap. The oil filter should be replaced every 500 hours.
Heat Exchanger
The heat exchanger core and fins are kept clean at all times for maximum cooling and system efficiency, and the exterior of the heat exchanger is checked daily for blockages and cleaned as needed.

Application:

Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers

FAQ


Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps ?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

10 to 15 days for samples, mass production according to MOQ

Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps ?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.

Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q7: How to deal with the faulty?

Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
