Product Details:
|
| Features: | Quality Assurance | Model: | PV22+MV23 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Coal Mining Machinery Underground Truck Hydraulic Pumps | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | Drying Machinery Heavy Duty Hydraulic Motors Component Common |
| Highlight: | 114kw Underground Truck Hydraulic Pump,2500rpm Underground Truck Hydraulic Pump,Pharmaceutical Machinery Hydraulic Components |
||
Pharmaceutical machinery underground truck hydraulic pumps quality assurance
Quick Detail:
· Cast iron housing
· Hydraulic components

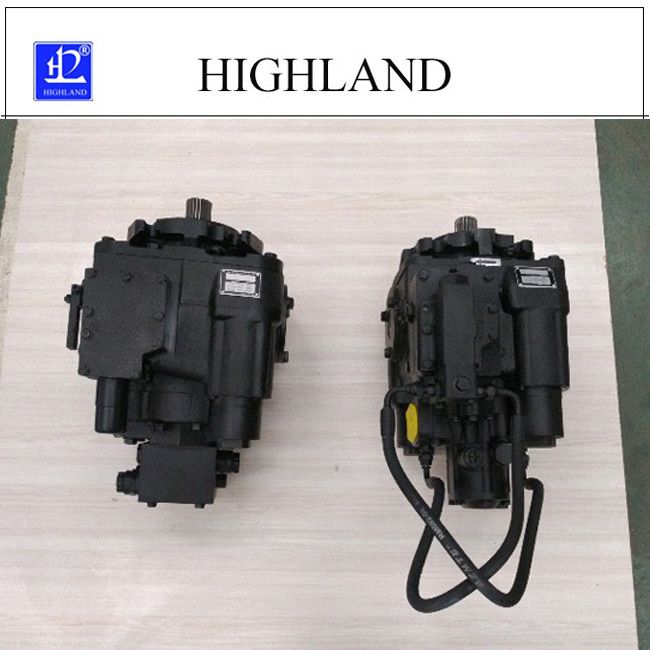

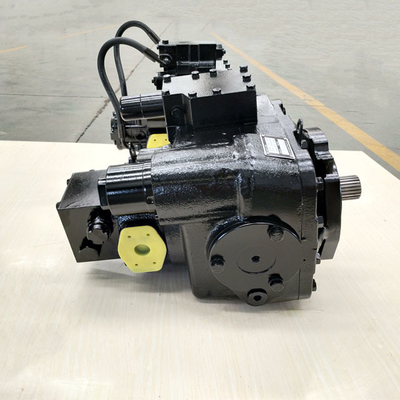

· Model PV22+MV23
· Hydraulic system power components
· Principle hydraulic transmission
· Features quality assurance
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application pharmaceutical machinery underground truck hydraulic pumps
· 1 year warranty
Description:
Pharmaceutical machinery underground truck hydraulic pumps widely used in the mining and transportation of underground mines. The scraper includes wheels, traction beam, frame, hydraulics, bucket with shovel bucket, support mechanism and frame lift adjustment mechanism. Pharmaceutical machinery underground truck hydraulic pumps has been developed for hundreds of years, and its operating economic efficiency is significantly better than the construction efficiency of other mechanical combinations. The advantages are simple operation, no terrain restrictions, independent work, fast driving speed and high production efficiency. It is suitable for well-ventilated working environment and has the characteristics of flexibility and efficiency, so it has been widely used in the market. Despite these advantages, its safe operating procedures must be kept in mind.
PV22+MV23 Technical parameter:

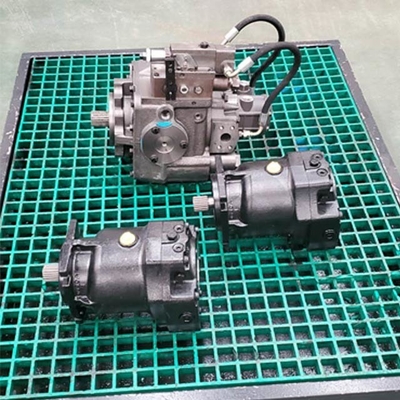

| PV22 hydraulic pump and MV23 hydraulic motor series | PV22 | MV23 | ||
| Displacement | Max displacement | ml/r | 69.8 | 89 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||
| Min continuous working speed | r/min | 500 | ||
| Pressure | Rated working pressure | Mpa | 35 | |
| Max working pressure (transient) | Mpa | 42 | ||
| Continuous working pressure | Mpa | 30 | ||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 342.6 | 432.9 |
| Max output torque | Nm | 480 | 606 | |
| Power | Continuous output power | KW | 107 | 139 |
| Max power | KW | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |
| Max working temperature of oil tank | ℃ | 70 | ||
| weight | PV series hydraulic pump hydraulic oil drain | kg | 62 | |
| PV series hydraulic motor hydraulic oil drain | kg | 66 | ||
Notices:
Hydraulic oil
The suitable replacement period for hydraulic oil in a sealed tank system is 2000 hours, and more often if the hydraulic oil is contaminated with water or other external materials or subjected to abnormal operating conditions.
As a general recommendation, the 10µ inlet oil filter should be replaced every spring or every 1500 hours (whichever occurs first) on a sealed tank system, or in an open tank system with an air filter fill cap. The oil filter should be replaced every 500 hours.
Heat Exchanger
The heat exchanger core and fins are kept clean at all times for maximum cooling and system efficiency, and the exterior of the heat exchanger is checked daily for blockages and cleaned as needed.
Application:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixer
FAQ
Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps ?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
