Product Details:
|
| Max.displacemen: | 70ml/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV70+LMF70 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Green Forage Harvester Hydraulic Motor Pump System Higher Efficiency |
| Highlight: | green forage harvester motor pump system,70ml/r motor pump system,higher efficiency hydraulic motor pump system |
||

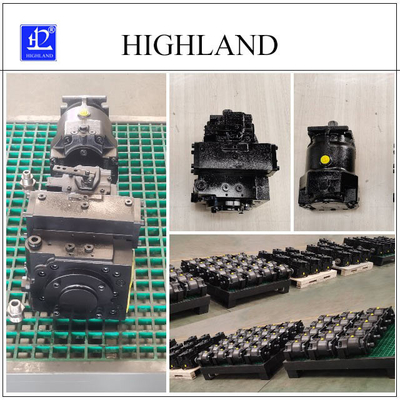

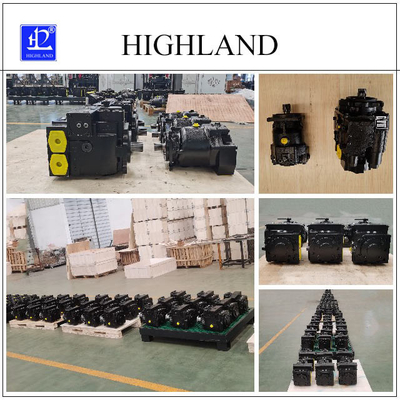

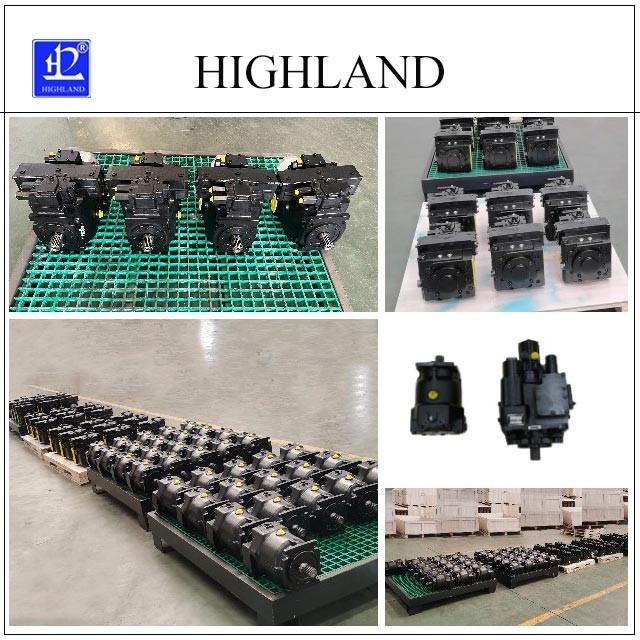

Green forage harvester Hydraulic Motor Pump System higher efficiency
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System information:
Hydraulic motor and pump system from Highland of China, we can provide agricultural machinery hydraulic drive system with high quality, high-performance parameters. Pump is the variable one that is with Charge Pump, and the motor the quantitative, or variable one with valve assembly. The control way of variable displacement pump and motor can be manual or hydraulic operated, and can simply control speed, direction and power of the output shaft of hydraulic motor.
Hydraulic pump relies on the reciprocating motion of piston in the cylinder body to change the volume of the sealed working chamber to achieve oil absorption and oil pressure. Highland piston type hydraulic pump can reach high efficiency 97% and have the advantages of high rated pressure, compact structure and convenient flow adjustment. They are widely used in occasions where high pressure, large flow and flow need to be adjusted.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Agricultural machinery hydraulic motor pump system from Highland of China, we can provide agricultural machinery hydraulic motor pump system with high quality, high-performance parameters. Pump is the variable one that is with Charge Pump, and the motor the quantitative, or variable one with valve assembly. The control way of variable displacement pump and motor can be manual or hydraulic operated, and can simply control speed, direction and power of the output shaft of hydraulic motor.
Stationary crusher hydraulic motor pump system from Highland of China, we can provide stationary crusher hydraulic motor pump system with high quality, high-performance parameters. Pump is the variable one that is with Charge Pump, and the motor the quantitative, or variable one with valve assembly. The control way of variable displacement pump and motor can be manual or hydraulic operated, and can simply control speed, direction and power of the output shaft of hydraulic motor.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for rice harvester hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the rice harvester hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for rice harvester hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the rice harvester hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for rice harvester hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for therice harvester hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty rice harvester hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
