Product Details:
|
| Max.displacemen: | 130ml/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV130+LMF130 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Planting Machinery HPV90 Hydraulic Transmission System Work Fast |
| Highlight: | 130ml/r Hydraulic Transmission System,Peanut Harvester Hydraulic Transmission System,130ml/R Hydraulic Drive Pump |
||

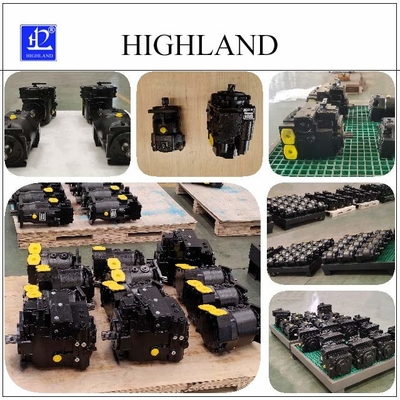

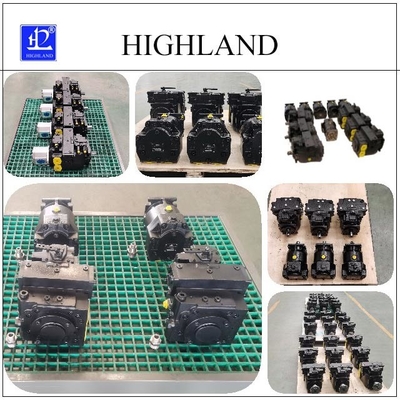

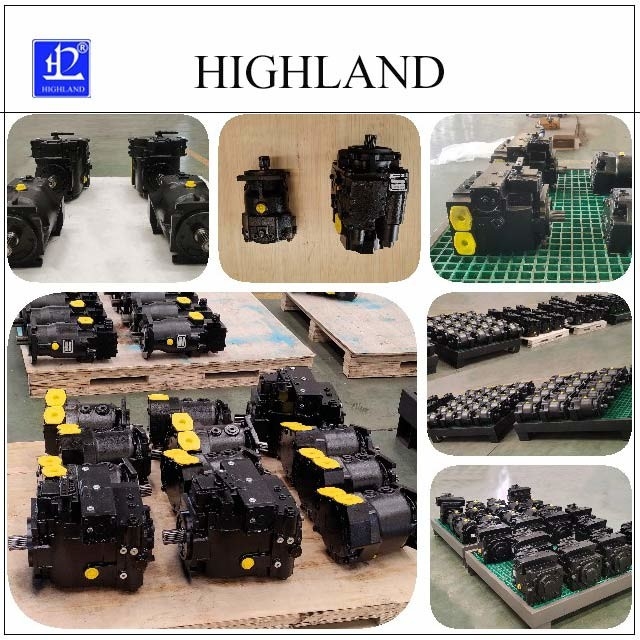

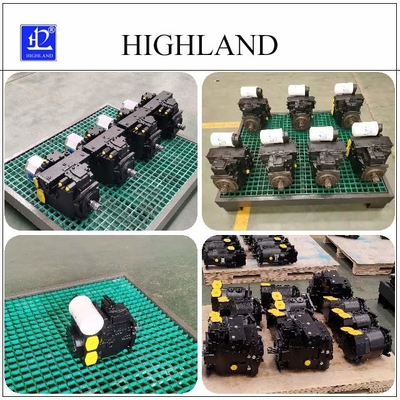

LPV130 peanut harvester Hydraulic transmission system Guarantee the high reliability of the product
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
LPV130 peanut harvester Hydraulic transmission system information:
The hydraulic pump motor system in agricultural machinery converts mechanical energy into hydraulic energy, and then converts hydraulic energy back into mechanical energy to drive the agricultural machinery and complete various actions. It includes various hydraulic components, such as hydraulic pumps, hydraulic motors, oil tanks, oil pipes, and hydraulic controllers. Among these components, the hydraulic pump is the core component of the system, responsible for converting liquid pressure into mechanical energy and providing power to the agricultural machinery.
Specifications:
LPV130 peanut harvester Hydraulic transmission system technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
LPV130 peanut harvester Hydraulic transmission system notices:
The hydraulic pump motor system in agricultural machinery converts mechanical energy into hydraulic energy, and then converts hydraulic energy back into mechanical energy to drive the agricultural machinery and complete various actions. It includes various hydraulic components, such as hydraulic pumps, hydraulic motors, oil tanks, oil pipes, and hydraulic controllers. Among these components, the hydraulic pump is the core component of the system, responsible for converting liquid pressure into mechanical energy and providing power to the agricultural machinery.
LPV130 peanut harvester Hydraulic transmission system use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
LPV130 peanut harvester Hydraulic transmission system faq
Q1. Can I have a sample order for rice harvester hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the rice harvester hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for rice harvester hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the rice harvester hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for rice harvester hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for therice harvester hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty rice harvester hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
