Product Details:
|
| Features: | Lifetime Technical Support | Model: | PV22+MV23 |
|---|---|---|---|
| Type: | Hydraulic Components | Material: | Cast Iron |
| Application: | Pharmaceutical Machinery Underground Truck Hydraulic Pumps | Medium: | Hydraulic Oil |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Plywood Case | Product Name: | Underground Truck Hydraulic Pumps Quality Assurance Pv22 Mv23 |
| Highlight: | Cast Iron Underground Hydraulic Pumps,Underground Truck Hydraulic Pumps Mv23,Lifetime Technical Support Hydraulic Pumps |
||

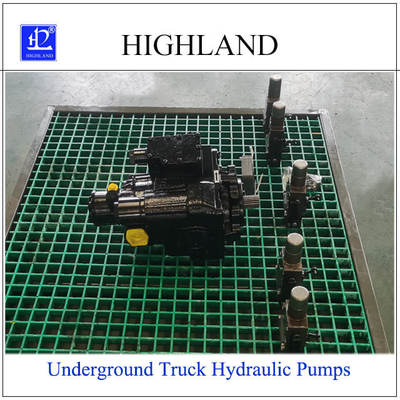

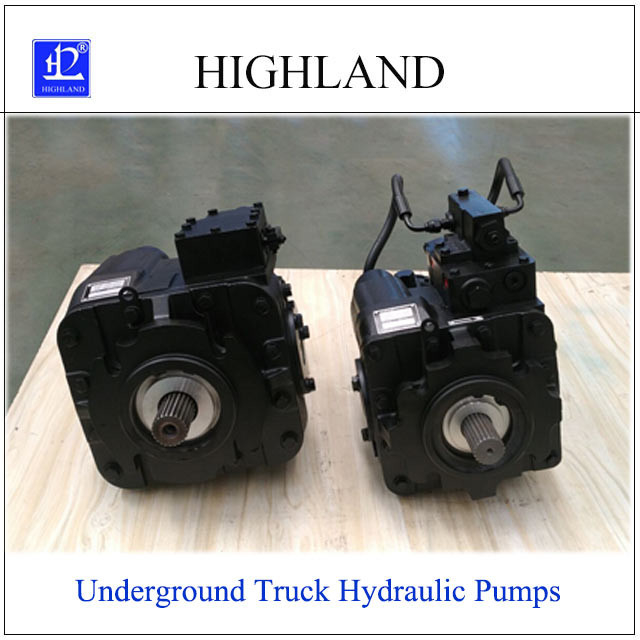

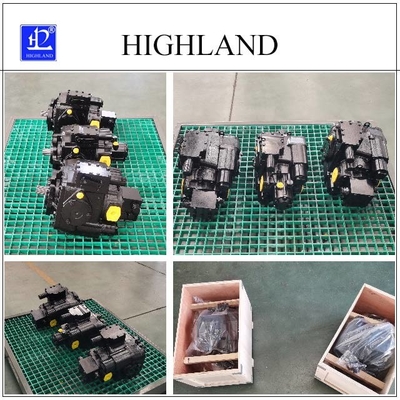

Underground truck hydraulic pumps quality assurance Pv22 Mv23
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model PV22+MV23
· Hydraulic system power components
· Principle hydraulic transmission
· Features lifetime technical support
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application pharmaceutical machinery underground truck hydraulic pumps
· 1 year warranty
Description:
Underground truck hydraulic pumps come in various types such as vane, piston, and gear pumps. These pumps operate differently but serve the same purpose of supplying high-pressure fluid to the hydraulic system. Different pump designs offer various benefits, such as energy efficiency, high pressure, and high flow rates. The choice of the pump type usually depends on the application's requirements, including working conditions, mining environment, and the type of operating equipment.
To ensure optimal performance and longevity of underground truck hydraulic pumps, proper maintenance and servicing are essential. This includes regular inspection, cleaning of components, and replacement of worn-out parts. A well-maintained hydraulic system reduces downtime, increases equipment lifespan, and, most importantly, maintains worker safety.
PV22+MV23 Technical parameter:
| PV22 hydraulic pump and MV23 hydraulic motor series | PV22 | MV23 | ||
| Displacement | Max displacement | ml/r | 69.8 | 89 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||
| Min continuous working speed | r/min | 500 | ||
| Pressure | Rated working pressure | Mpa | 35 | |
| Max working pressure (transient) | Mpa | 42 | ||
| Continuous working pressure | Mpa | 30 | ||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 342.6 | 432.9 |
| Max output torque | Nm | 480 | 606 | |
| Power | Continuous output power | KW | 107 | 139 |
| Max power | KW | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |
| Max working temperature of oil tank | ℃ | 70 | ||
| weight | PV series hydraulic pump hydraulic oil drain | kg | 62 | |
| PV series hydraulic motor hydraulic oil drain | kg | 66 | ||
Notices:
Regular maintenance: Regular maintenance of the hydraulic pump is essential to ensure its proper functioning. Check for leaks, damages and wear regularly.
Follow manufacturer’s instructions: Follow the manufacturer’s instructions for the hydraulic pump closely, including the type and quantity of hydraulic fluid to use.
Keep the area around the hydraulic pump clean: A clean working environment around the hydraulic pump helps in maintaining its cleanliness and prevents damages to the pump.
Store the hydraulic pump properly: Store the hydraulic pump in a safe and dry place to prevent damage and rust.
Proper installation of the hydraulic pump: Ensure proper installation of the hydraulic pump by qualified professionals to avoid misuse or accidents.
FAQ
Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
