Product Details:
|
| Max.displacemen: | 30ml/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV30+LMF30 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | LPV30 Series Cast Iron Housing Hydraulic Motor Pump System |
| Highlight: | 30ml/r Hydraulic Motor Pump System,Hydrostatic Transmission Motor Pump System,LPV30 hydraulic motor system |
||

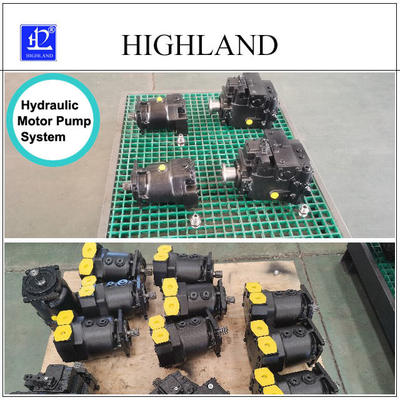

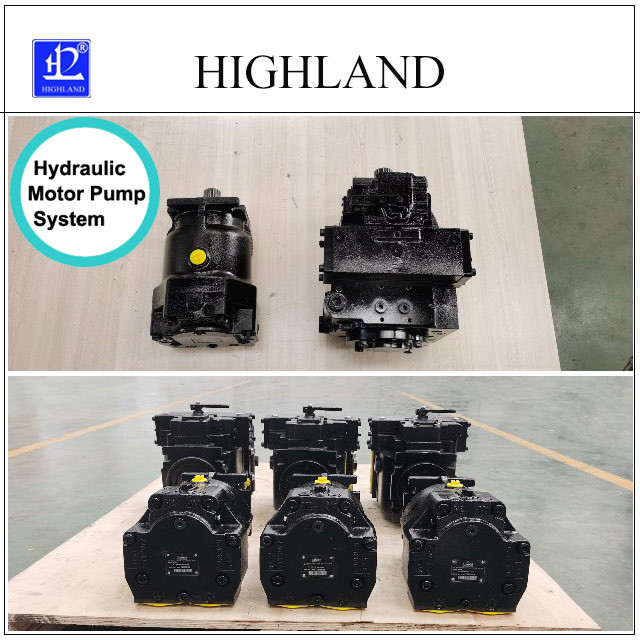

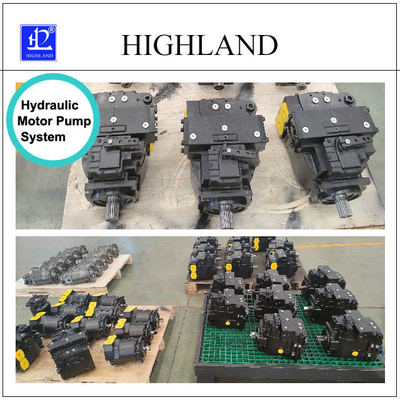

LPV30 Series Cast Iron Housing Hydraulic Motor Pump System
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
LPV30 Harvesting machinery Hydrostatic transmission information:
Agricultural machinery relies heavily on hydraulic pump motor systems to power their various functions. These systems use hydraulic energy generated by a hydraulic pump to drive the movements of the equipment, such as lifting, lowering, and steering.
The hydraulic system is an essential component of many modern agricultural machines, including tractors and combines. It allows for greater precision, speed, and efficiency in performing tasks that are crucial to farming operations.
Hydraulic pump motor systems consist of several components, including the hydraulic pump, hoses, valves, and a hydraulic fluid reservoir. The pump generates hydraulic energy, which is then transmitted through the hoses to where it is needed. Valves control the flow of hydraulic fluid, while the hydraulic motor converts the hydraulic energy back into mechanical energy for use in powering specific functions.
Specifications:
Harvesting machinery Hydrostatic transmission technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Harvesting machinery Hydrostatic transmission notices:
Regular maintenance: It is important to conduct regular maintenance on the hydraulic pump motor system to ensure that it is functioning properly. Replace filters, check fluid levels and look for leaks.
,
Harvesting machinery Hydrostatic transmission use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Harvesting machinery Hydrostatic transmission faq
Q1. Can I have a sample order for rice harvester hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the rice harvester hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for rice harvester hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the rice harvester hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for rice harvester hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for therice harvester hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty rice harvester hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
