Product Details:
|
| Max.displacemen: | 30ml/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV30+LMF30 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | LPV30 Series Agricultural Machinery Hydraulic Motor Pump System Simple Layout |
| Highlight: | LPV30 Series Hydraulic Motor Pump System,30ml/r Max Hydraulic Motor Pump System,Hydraulic Pump System For Rice harvester |
||

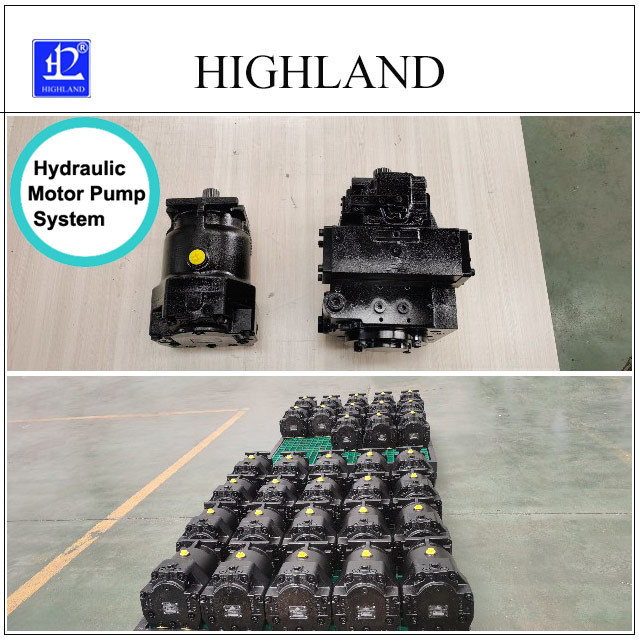

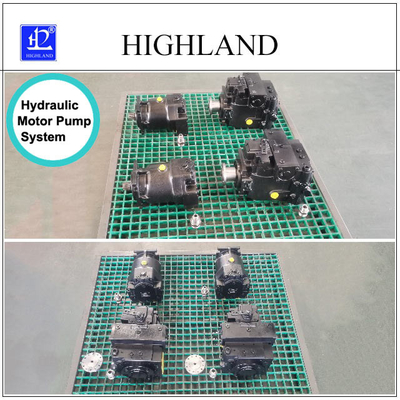

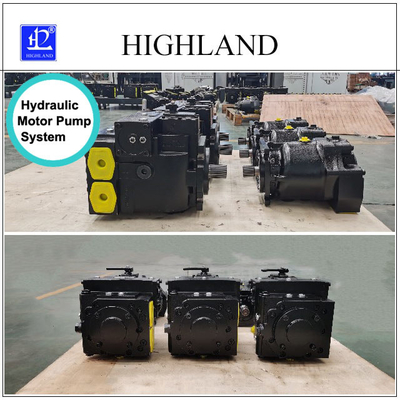

LPV30 series agricultural machinery Hydraulic Motor Pump System Simple layout
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
The hydraulic pump motor system for agricultural machinery is a system that provides power, adjustment, and assistance for various agricultural machines, such as tractors, harvesters, seeders, etc. The system consists of hydraulic pumps, hydraulic motors, valves, pipes, hoses, and other components. The hydraulic pump converts the mechanical energy of the engine into hydraulic energy, which is transmitted to the hydraulic motor through the pipes and valves. The hydraulic motor converts the hydraulic energy back into mechanical energy, which drives the wheels or other parts of the agricultural machine. The valves control the direction, pressure, and flow of the hydraulic fluid, and also provide safety and protection functions. The pipes and hoses connect the components and carry the hydraulic fluid.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Hydraulic Motor Pump System use:
The hydraulic pump motor system for agricultural machinery is widely used in various types of agricultural machines, such as self-propelled harvesters1, tillage machines2, irrigation machines3, etc. The system can also be integrated with other technologies, such as electro-hydraulic control2, hydraulic suspension2, HST (Hydro Static Transmission)3, HMT (Hydro Mechanical Transmission)2, etc., to achieve higher automation and intelligence levels.
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
