Product Details:
|
| Max.displacemen: | 70/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV70+LMF70 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | LPV70 Series Material Handling Equipment Hydraulic Motor Pump System Higher Efficiency |
| Highlight: | Material Handling Equipment Motor Pump System,Hydraulic Motor Pump System LPV70 Series,Material Handling Equipment Hydraulic Motor Pump |
||

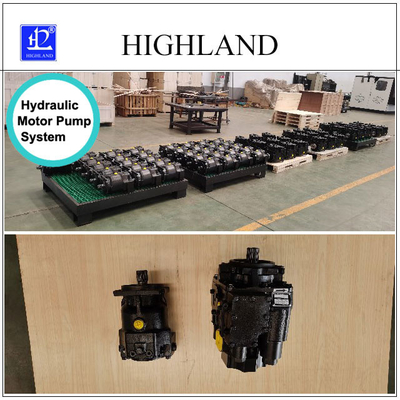

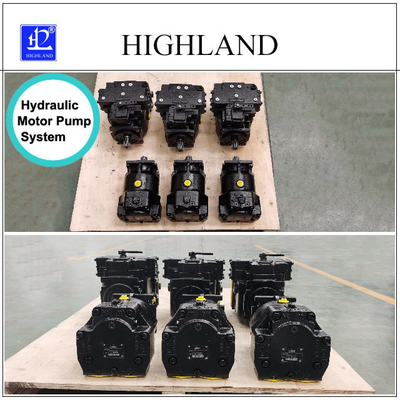

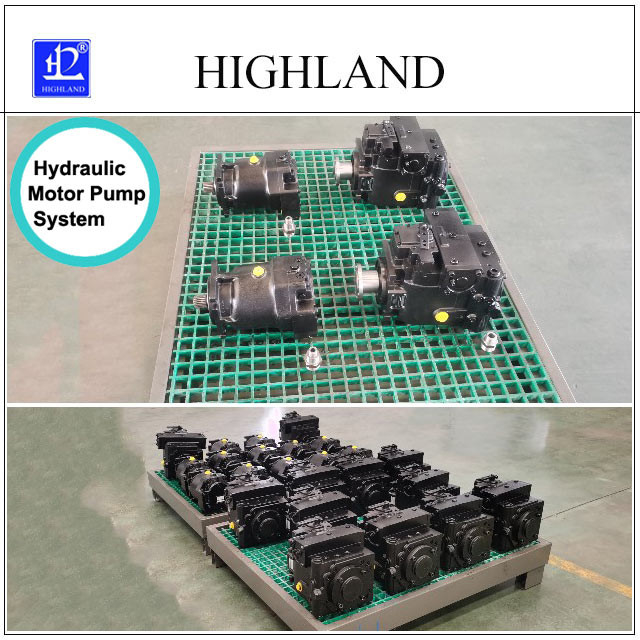

LPV70 series Material handling equipment Hydraulic Motor Pump System higher efficiency
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Designed with precision engineering and state-of-the-art technology, this system is the perfect choice for industries that demand high-performance and precision in their material handling operations.
With its powerful hydraulic motor and pump, this system provides consistent and reliable power to move heavy loads with ease. Its compact design and easy-to-use controls make it the ideal choice for any material handling application, from manufacturing and construction to agriculture and mining.
With the Material Handling Equipment Hydraulic Motor Pump System, you can increase productivity, reduce downtime, and enhance safety in your material handling operations. Experience the power and performance of this exceptional system today and take your material handling to the next level.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Proper maintenance: Regular maintenance is crucial to keep the system in good condition and prevent breakdowns. Follow the manufacturer's guidelines for maintenance, including regular inspections, cleaning, and lubrication.
Proper use: Use the system only for its intended purpose and within its specified capacity. Overloading the system or using it in a way that it was not designed for can cause damage and compromise safety.
Operating environment: The system should be used in a clean and dry environment. Exposure to harsh elements such as moisture, dust, and debris can affect its performance and durability.
Quality components: To ensure optimal performance and longevity, use high-quality components and replacement parts that meet the manufacturer's specifications.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
