Product Details:
Place of Origin: CHINA DEZHOU
Brand Name: HIGHLAND
Certification: PATENT CERTIFICATE
Model Number: PV22+MV23
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 13 work days
Payment Terms: T/T, Western Union
Supply Ability: 130 sets per month

The Role And Maintenance Of Hydraulic Pumps In Underground Truck Operations

Description
Features: Lifetime Technical Support Model: PV22+MV23
Type: Hydraulic Components Material: Cast Iron
Application: Pharmaceutical Machinery Underground Truck Hydraulic Pumps Medium: Hydraulic Oil
Warranty: 1 Year Function: Hydraulic System Components
Package: Plywood Case Product Name: "The Role And Maintenance Of Hydraulic Pumps In Underground Truck Operations"
Highlight:

Hydraulic Pumps lifetime technical support

,

Underground Truck Operations Hydraulic Pumps

,

PV22+MV23 Hydraulic Pumps

The Role and Maintenance of Hydraulic Pumps in Underground Truck Operations



Quick Detail:



· Cast iron housing

· Hydraulic components

· Model  PV22+MV23

· Hydraulic system power components

· Principle hydraulic transmission

· Features lifetime technical support

· Simple layout

· System Solutions

· Work fast

· Fully replace imported products

· Patent certificate certification

· Application pharmaceutical machinery underground truck hydraulic pumps

· 1 year warranty

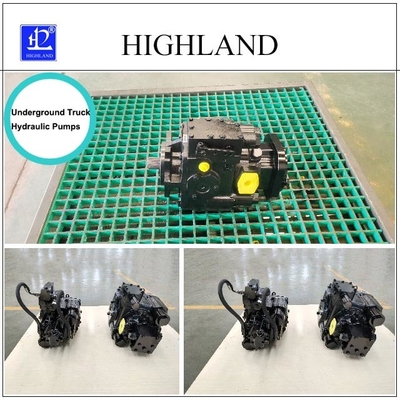

 The Role And Maintenance Of Hydraulic Pumps In Underground Truck Operations 0


Description:


Underground Truck Hydraulic Pumps are specialized pumps designed for use in underground mining and construction vehicles. These pumps facilitate the operation of various truck functions, such as lifting, steering, and braking. Engineered to withstand harsh underground conditions, these pumps are integral to the safe and efficient operation of underground trucks.


 PV22+MV23  Technical parameter:


PV22 hydraulic pump and MV23 hydraulic motor series PV22 MV23
Displacement Max displacement ml/r 69.8 89
Speed Max continuous working speed
(Full load condition)
r/min 3200 3200
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 342.6 432.9
Max output torque Nm 480 606
Power Continuous output power KW 107 139
Max power KW 114 150
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
weight PV series hydraulic pump hydraulic oil drain kg 62
PV series hydraulic motor hydraulic oil drain kg   66

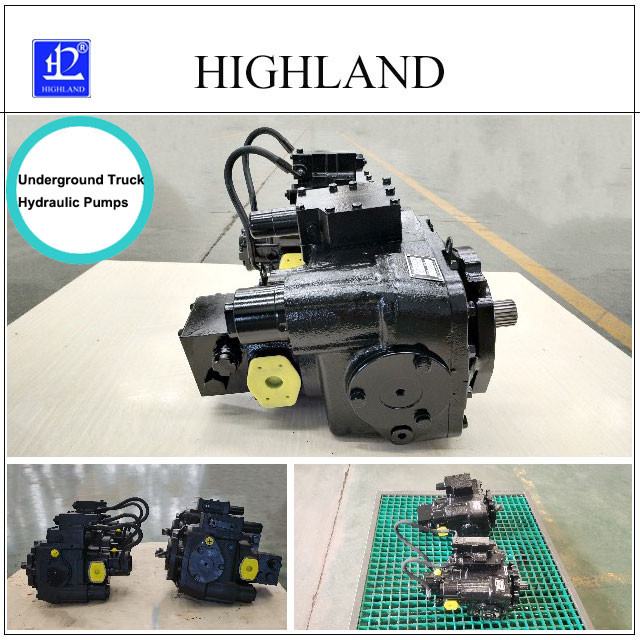

The Role And Maintenance Of Hydraulic Pumps In Underground Truck Operations 1


Notices:



Routine Maintenance: Regular maintenance is crucial for the longevity and reliability of Underground Truck Hydraulic Pumps. This includes monitoring hydraulic fluid levels, checking for contamination, and replacing worn-out parts promptly. Given the harsh conditions of underground work, neglecting routine maintenance could lead to pump failure, resulting in operational downtime and potentially compromising safety.

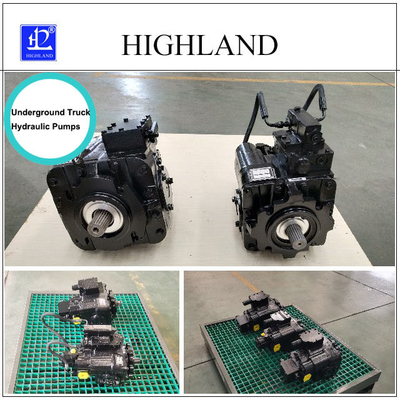

The Role And Maintenance Of Hydraulic Pumps In Underground Truck Operations 2



FAQ


Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

10 to 15 days for samples, mass production according to MOQ



Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.



Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.



Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.



Q7: How to deal with the faulty?

Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
