Product Details:
|
| Max.displacemen: | 90/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV90+LMF90 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Rice Harvester Hydraulic Pump Motor System Customized LPV90 |
| Highlight: | LPV90 Motor Pump System,Hydraulic Motor Pump System For Harvester,Hydraulic Motor Pump System Customized |
||

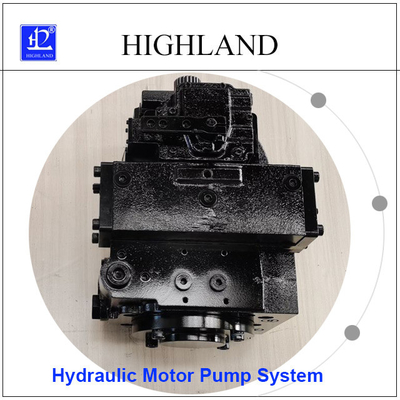

Rice Harvester Hydraulic Pump Motor System Customized LPV90
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Upgrade your Rice Harvester with our customized HPV90 Hydraulic Pump Motor System. This robust and high-performing system ensures a significant boost to your harvesting operations. Designed to withstand demanding work conditions, it provides an increase in efficiency and reliability, allowing you to achieve higher productivity and less downtime. The HPV90 system offers superior performance, improving the hydraulic operations of your machine, ultimately leading to a smoother and more streamlined harvesting process. With this system, we ensure a noticeable improvement in the longevity and overall performance of your Rice Harvester."
Cleanliness Maintenance: The working efficiency of the hydraulic pump motor highly depends on the cleanliness of the hydraulic oil. Therefore, regular cleaning of the hydraulic oil and the oil tank is necessary.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Checking and Replacing Hydraulic Oil: The level and quality of the hydraulic oil should be checked before each use. If the hydraulic oil is found to have a high water content or poor quality, it should be replaced immediately.
Prevent Overheating: Prolonged use of the hydraulic pump motor can cause the system to overheat. This overheating can reduce the viscosity of the hydraulic oil, affecting system performance. Therefore, it is necessary to regularly check the temperature of the hydraulic system and take cooling measures.
Correct Operation: The operator must be familiar with all operating procedures and safety regulations. Misoperation can lead to equipment damage and even cause personal injury.
Storage Precautions: When the hydraulic pump is not in use, it should be stored in a dry, clean, and dust-free environment to avoid rust or contamination of the pump body.
Professional Maintenance: If there is a decrease in system performance or a malfunction, stop using it immediately and have a professional technician inspect and repair it. Do not attempt to solve the problem on your own, as this could lead to further equipment damage.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
