Product Details:
|
| Max.displacemen: | 130/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV13+LMF130 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Agricultural Machinery Hydraulic Pump Motor System Customized LPV130 |
| Highlight: | 130/r Hydraulic Motor Pump System,Agricultural Machinery Motor Pump System,LPV130 Motor Pump System |
||

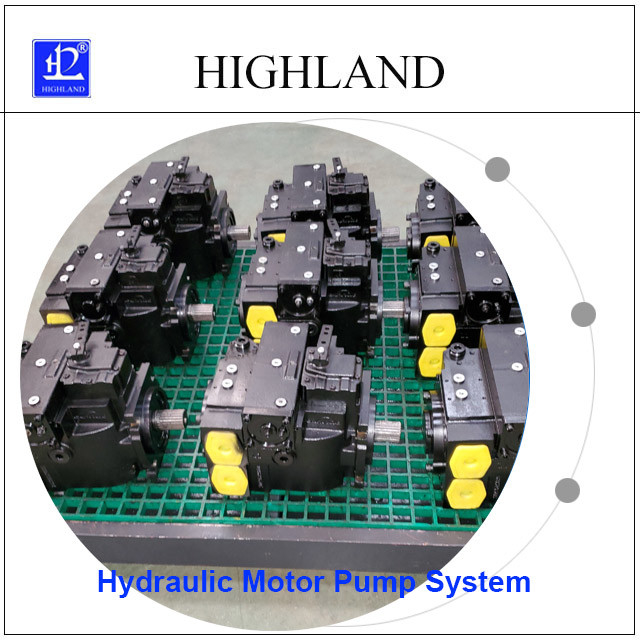

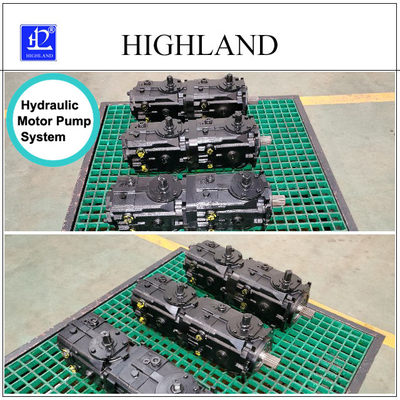

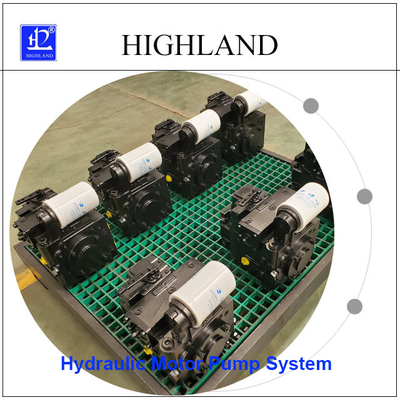

Agricultural machinery hydraulic pump motor system customized LPV130
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Enhance your agricultural machinery with our customized HPV130 Hydraulic Pump Motor System. Specifically designed for the rigors of farming operations, this system significantly improves the efficiency, reliability, and performance of your equipment. The HPV130 system is a sturdy, high-performance solution that caters to the specific needs of agricultural machinery, ensuring seamless operations even under demanding work conditions. With its top-tier design and technology, it provides a noteworthy improvement in the productivity and lifespan of your machinery, becoming an essential addition to your agricultural operations.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Operator Training: Operators must be properly trained in the use and operation of the HPV130 hydraulic pump motor system. This includes understanding all safety regulations and operational procedures.
Regular Inspections: Before each use, a thorough inspection of the hydraulic pump motor system should be carried out to check for any signs of wear, leaks, or other potential issues.
Hydraulic Oil Maintenance: The hydraulic oil's quality and level should be regularly checked and maintained. If the oil is contaminated or degraded, it should be replaced immediately.
Preventing Overheating: Long periods of operation can lead to the system overheating. The temperature of the hydraulic system should be regularly monitored, and appropriate cooling measures should be taken when necessary.
Correct Operation: The HPV130 hydraulic pump motor system should always be operated as per the manufacturer's instructions. Incorrect operation can cause the system to malfunction and may result in equipment damage or personal injury.
Proper Storage: When not in use, the hydraulic pump should be stored in a dry, clean, and dust-free environment to prevent rust or contamination.
Professional Maintenance: If there is a decrease in system performance or a malfunction, stop using it immediately and have a professional technician inspect and repair it. Do not attempt to solve the problem on your own, as this could lead to further equipment damage.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
