Product Details:
|
| Max.displacemen: | 90/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | HPV200+HMF200 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Optimized Hydraulic Pump Motor System For Combine Harvesters: Customized HPV90 |
| Highlight: | Customized Hydraulic Motor Pump System,Harvesters Hydraulic Pump Motor System,HPV90 Hydraulic Pump Motor System |
||

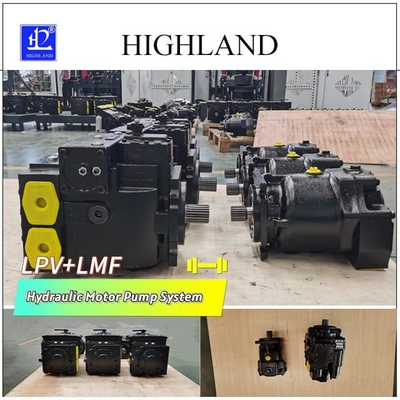

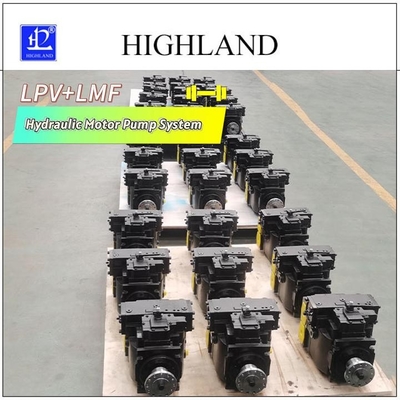

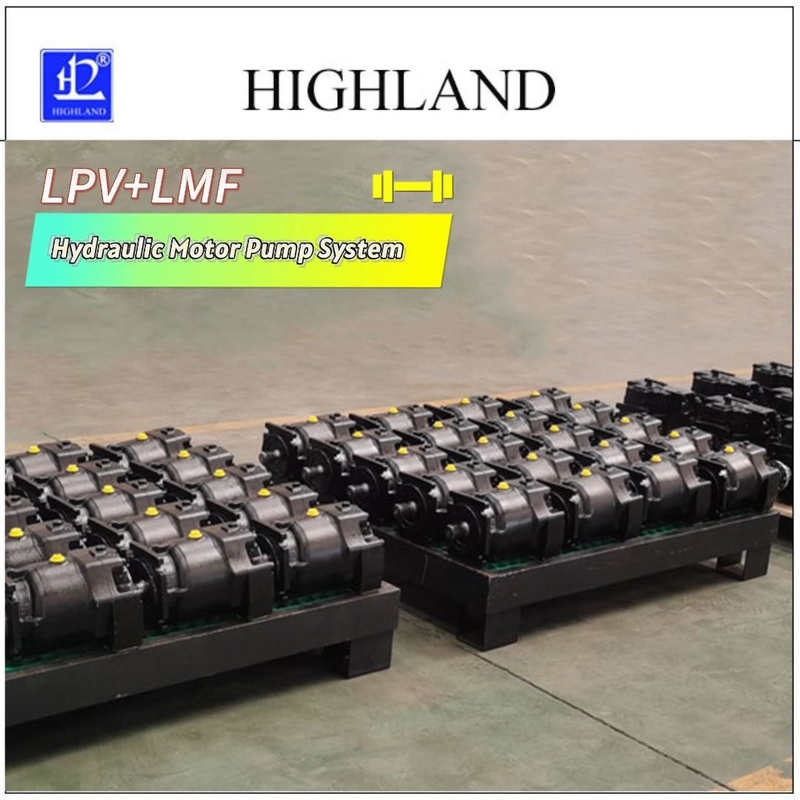

Optimized Hydraulic Pump Motor System for Combine Harvesters: Customized HPV90
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Elevate your Tractor's Efficiency with our bespoke HPV90 series hydraulic pump motor Hydraulic Pump Motor System. Custom-made to suit tractor operations, this system delivers a remarkable increase in performance and reliability. The HPV90 series hydraulic pump motor system is built to endure the rigorous demands of farming tasks, assuring peak functionality and prolonged life of your machinery. For those looking to upgrade their equipment with a superior, enduring hydraulic system, the HPV90 series hydraulic pump motor is the go-to choice. Amplify your work rate and promise a more dependable and efficient farming process with our HPV90 series hydraulic pump motor Hydraulic Pump Motor System.
Specifications:
Hydraulic Motor Pump System technical parameter
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Agricultural machinery relies on hydraulic systems to handle heavy loads and perform demanding tasks. However, exceeding the system's load capacity or operating beyond its limitations can lead to overload and potential damage. Here are five precautions to prevent hydraulic system overload in agricultural machinery:
Know the Load Capacity: Understand the hydraulic system's load capacity, as specified by the machinery manufacturer. This includes maximum weight limits, pressure ratings, and any other relevant guidelines. Exceeding these limits can cause excessive strain on the system, leading to failure or reduced performance.
Properly Balance Loads: Distribute loads evenly across the hydraulic system. Imbalanced loads can cause uneven stress, leading to premature wear on specific components. Consider using weight distribution tools or adjusting load positions to achieve proper balance.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
