Product Details:
|
| Max.displacemen: | 90/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV90+LMF90 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Enhanced Performance LPV90 Combine Harvester Overload Test Hydraulic Motor Customization |
| Highlight: | Hydraulic Motor Pump System LPV90,Harvester Overload Test Hydraulic Motor System,Customization Hydraulic Motor Pump System |
||

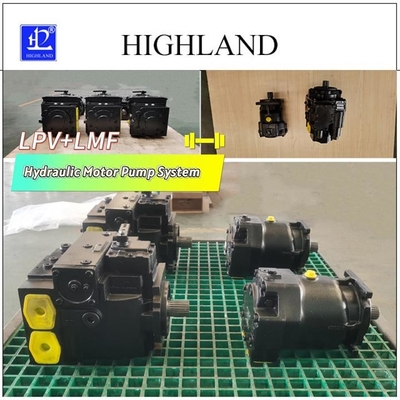

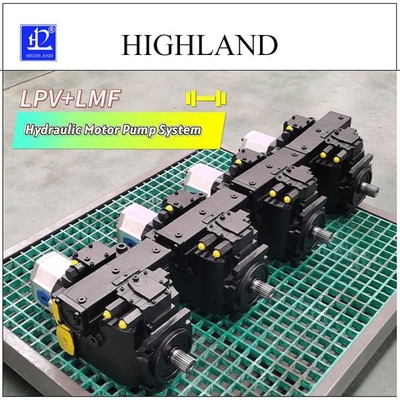

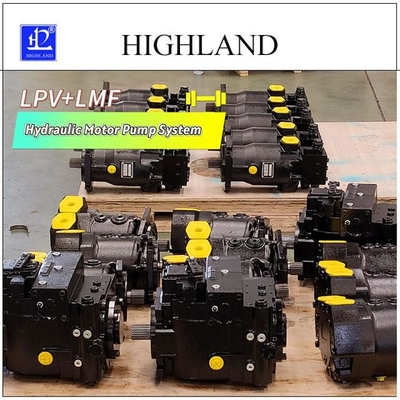

Enhanced Performance LPV90 Combine Harvester Overload Test Hydraulic Motor Customization
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
The LPV90 series Hydraulic Motor forms an essential part of the tractor system, specifically designed to deliver unmatched performance and trustworthiness. By harnessing the power of high-pressure hydraulic fluid, it powers the pistons, producing substantial rotational force necessary for efficient plowing and seeding. With its remarkable power output and control, the series Hydraulic Motor is the ideal choice for tractors, supporting the machinery's ability to carry heavy loads while ensuring precise control for optimal soil preparation. Its superior efficiency underlines its role in bolstering the productivity and reliability of farming processes.
Specifications:
Hydraulic Motor Pump System technical parameter
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Monitor Pressure Levels: Regularly monitor hydraulic system pressure levels using appropriate gauges. Excessive pressure indicates overload or a potential system malfunction. Adjust system settings or operational parameters to maintain pressure within the recommended range.
Avoid Shock Loading: Minimize sudden or jerky movements that result in shock loading. Rapid accelerations, decelerations, or abrupt changes in direction can put excessive strain on the hydraulic system. Smooth and controlled movements reduce stress and help prevent overload.
Operator Training and Awareness: Train machinery operators on proper usage and load management techniques. Ensure they understand the hydraulic system's capabilities and limitations. Encourage operators to report any signs of strain, unusual noises, or system anomalies promptly.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
