Product Details:
|
| Max.displacemen: | 90/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | HPV70+HMF70 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Efficient Silage Machine Hydraulic Pump Motor System: HPV70 Series |
| Highlight: | HPV70 Hydraulic Motor System,Silage Machine Hydraulic Pump System,90/r Hydraulic Pump Motor System |
||

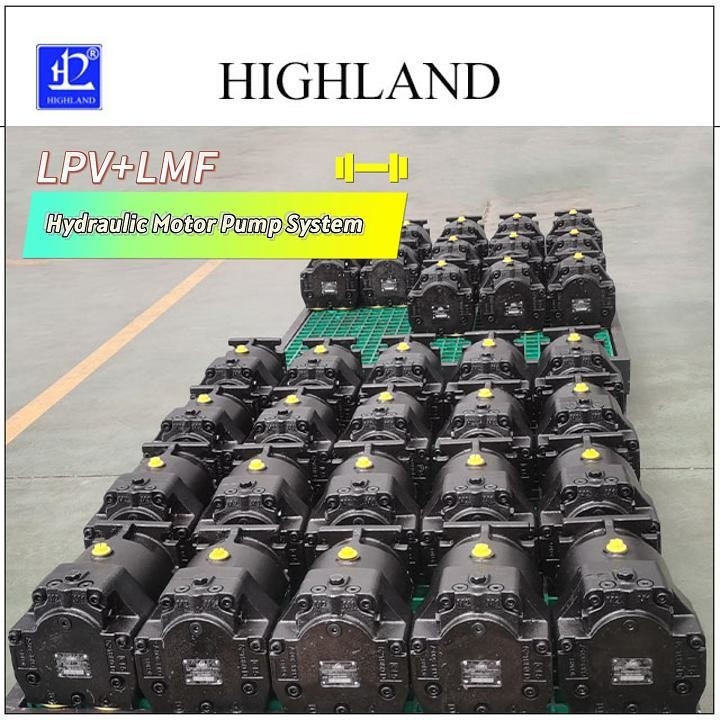

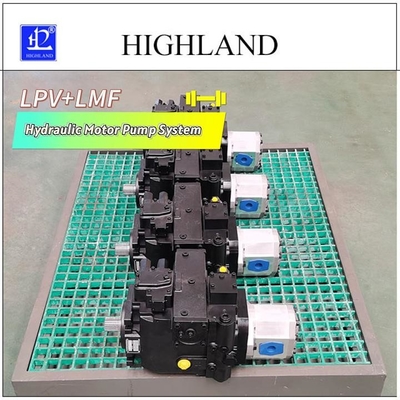

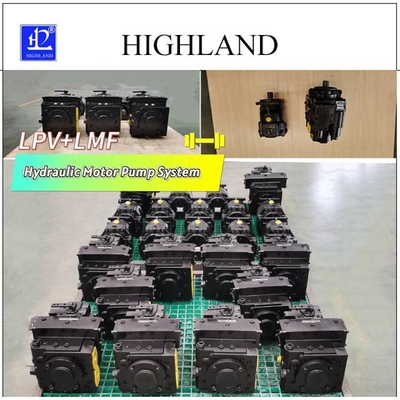

Efficient Silage Machine Hydraulic Pump Motor System: HPV70 Series
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Maximize your Silage Machine's Output with our exclusive HPV70 series hydraulic pump motor Hydraulic Pump Motor System. This system, tailored for silage machines, offers a substantial enhancement in efficiency and dependability. The HPV70 series hydraulic pump motor system is constructed to bear the rigorous conditions of silage production, ensuring optimal performance and long lifespan of your machinery. It's the perfect choice for those intending to upgrade their equipment with a robust, high-performance hydraulic system. Boost your productivity and guarantee a more consistent and effective silage process with our HPV70 series hydraulic pump motor Hydraulic Pump Motor System.
Specifications:
Hydraulic Motor Pump System technical parameter
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Avoid Overheating: Hydraulic systems generate heat during operation. Excessive heat can degrade the fluid and compromise system performance. Ensure proper cooling by maintaining appropriate fluid levels, keeping radiator fins clean, and avoiding prolonged operation at high temperatures. Consider using coolers or heat exchangers to regulate the system's temperature.
Inspect Hoses and Fittings: Regularly inspect hydraulic hoses and fittings for signs of wear, leaks, or damage. Replace any damaged components promptly to prevent fluid leakage and potential hazards. Use proper fittings and tighten them to the manufacturer's specifications to ensure a secure connection.
Proper Training and Operation: Adequate training is vital for operators to understand the hydraulic system's functions and limitations. Improper operation can lead to excessive pressure, component failure, or accidents. Train operators on correct usage, load capacities, and safety procedures to maximize the lifespan of the hydraulic system and ensure operator safety.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
