Product Details:
|
| Max.displacemen: | 200/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV200+LMF200 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Combine Harvester Hydraulic Pump Motor System Customized HPV200 |
| Highlight: | 200/r Rice Harvester Hydraulic Transmission System,Patent Certificate Hydraulic Motor Pump System |
||

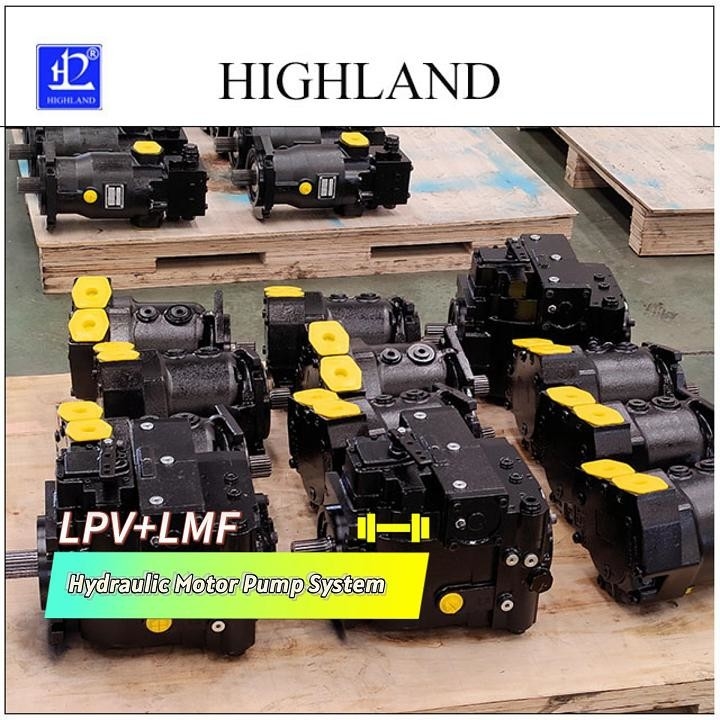

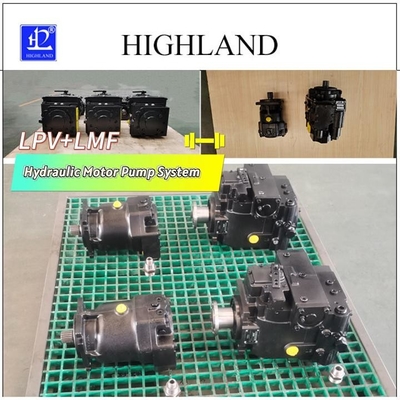

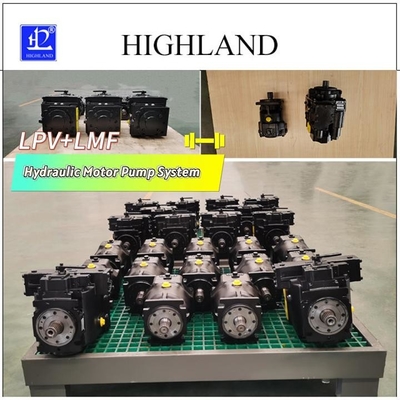

HPV200 Hydraulic Motor Pump System for Rice Harvester, cast iron housing, higher efficiency & simple layout
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Delve deep into the heart of modern farming technology with hydraulic motor pump systems. These intricate systems are the backbone of agricultural machinery, offering unmatched precision and reliability. Discover how hydraulic pumps, motors, and valves work in perfect harmony to ensure precise energy transmission, enabling farmers to achieve optimal efficiency in every operation. From controlling heavy equipment to managing irrigation systems, these systems are the professionals' choice for achieving agricultural excellence.
Specifications:
Hydraulic Motor Pump System technical parameter
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Clean Environment: Maintain a clean working environment when servicing or repairing hydraulic systems. Minimize the presence of dirt, dust, and debris to prevent contaminants from entering the system during maintenance procedures.
Proper Fluid Storage: Store hydraulic fluid in clean, sealed containers to avoid contamination. Prevent exposure to moisture, dust, or other foreign substances. Contaminated fluid can introduce harmful particles into the system, leading to component wear and reduced performance.
Go beyond standard contamination control measures by employing advanced techniques like kidney loop filtration systems. These systems continuously filter and purify hydraulic oil, enhancing its cleanliness and extending its lifespan. Consider using dedicated off-line filtration units for comprehensive oil maintenance.
Hydraulic Motor Pump System use:
Mixer truck: concrete mixer truck, cement mixer truck;
Coal mining machinery: scraper;
Industry: pharmaceutical machinery;
Transport vehicles: road rollers, concrete pump trucks, stabilized soil mixers
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
