High Pressure Closed Loop Axial Piston Pump For Construction Machinery

Certification
China Shandong Highland Hydraulic Seiko Co., Ltd. certification
China Shandong Highland Hydraulic Seiko Co., Ltd. certification
I'm Online Chat Now

High Pressure Closed Loop Axial Piston Pump For Construction Machinery

High Pressure Closed Loop Axial Piston Pump For Construction Machinery
High Pressure Closed Loop Axial Piston Pump For Construction Machinery
High Pressure Closed Loop Axial Piston Pump For Construction Machinery High Pressure Closed Loop Axial Piston Pump For Construction Machinery High Pressure Closed Loop Axial Piston Pump For Construction Machinery High Pressure Closed Loop Axial Piston Pump For Construction Machinery

Large Image :  High Pressure Closed Loop Axial Piston Pump For Construction Machinery

Product Details:
Place of Origin: CHINA DEZHOU
Brand Name: HIGHLAND
Certification: PATENT CERTIFICATE
Model Number: LPV110
Payment & Shipping Terms:
Minimum Order Quantity: 5 Sets
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: According to customers' quantity
Payment Terms: T/T, Western Union
Supply Ability: 200 Sets Per Month

High Pressure Closed Loop Axial Piston Pump For Construction Machinery

Description
Warranty: 1 Year Product Name: Variable Displacement Axial Piston Pumps
Function: Hydraulic System Components Package: Plywood Case
Structure: Axial Piston Pump Type: Closed Loop Hydraulic Pump
Material: Cast Iron Color: Black Or Custom Make
Highlight:

High Pressure Hydraulic Variable Piston Pump

,

Closed Loop Axial Piston Pump

,

Construction Machinery Axial Hydraulic Pump

High Pressure Closed Loop Axial Piston Pump for Construction Machinery



Product Description:



High Quality Hydraulic System from We Highland

We Highland provide high quality, high-performance hydraulic system. Our axial hydraulic pump and hydraulic motor assembly have variable and quantitative features, available with Charge Pump and Valve Assembly. The control way of the hydraulic pumps and motors can be manual or hydraulic operated, so they can easily control the speed, direction and power of the output shaft of hydraulic motor.

Our variable displacement medium pressure axial piston pump offers maximum operating pressure of up to 42Mpa with quiet, efficient and compact features. Its unique design makes installation and replacement easier and more convenient. Additionally, we offer axial hydraulic motor and transmission for our customers with reliable performance.



Features:



  1. Maximize Performance, Efficiency and Profit with Axial Piston Pumps
  2. Axial Piston Pumps are specially designed for your applications. They are ideally suited to maximise efficiency and bring down the costs of running the overall hydraulic systems.
  3. The pumps have a compact appearance which makes operating possibe while still maintaining industry standard quality control. In addition, the lightweight design provides additional cleanliness and flexibility for its application.
  4. It has a wide range of displacement levels, from 30-130 cm² per round and a high pressure capability of 420 bar transient pressure. This ensures precise control and consistent performance.

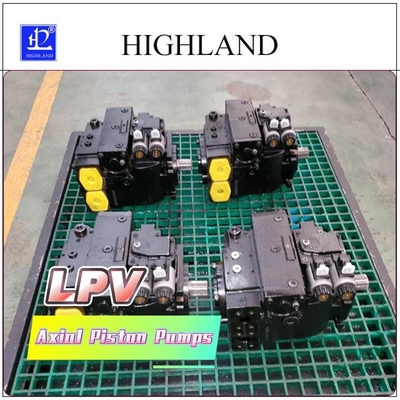

High Pressure Closed Loop Axial Piston Pump For Construction Machinery 0



Technical Parameters:



LPV hydraulic pump and LMF hydraulic motor series 30 50 70 90 110 130
Displacement Max displacement ml/r 30 50 70 90 110 130
Speed Max continuous working speed
(Full load condition)
r/min 3500 3500 3200 3200 2900 2900
Rated speed r/min 2500
Min continuous working speed r/min 500
Pressure Rated working pressure Mpa 35
Max working pressure (transient) Mpa 42
Continuous working pressure Mpa 30
Allowable shell pressure (Absolute) Mpa Constant0.25, Peak value0.5
Torque Continuous output torque
(Under continuous working pressure)
Nm 162.3 252.3 342.6 432.9 535.3 632.4
Max output torque Nm 227 353 480 606 749 885
Power Continuous output power KW 45 79 107 139 149 176
Max power KW 62 95 114 150 173 205
Temperature Allowable shell temperature 80
Max working temperature of oil tank 70
Weight LPV series hydraulic pump
hydraulic oil emptying
kg 45 46 63 64 82 88
LMF series hydraulic motor
hydraulic oil emptying
kg 30 30 36 36 36 38

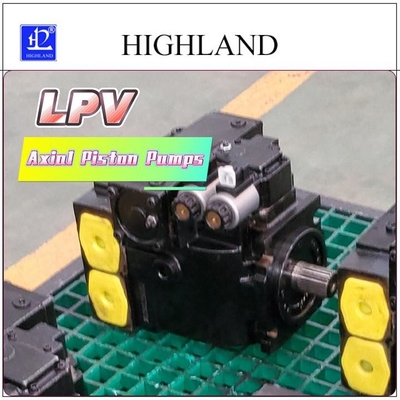

High Pressure Closed Loop Axial Piston Pump For Construction Machinery 1



Applications:



Axial piston pump is commonly applied to hydraulic transmission systems, particularly for high-power transmissions. It can be seen in construction machinery, agricultural machinery and equipment, as well as in the coal mining, oil exploration, aerospace and shipbuilding industries.

Moreover, this pump comes in handy in situations requiring high pressure, large flow, and adjustable power systems. Consequently, they are often used in plane, broaching machines, and hydraulic machines as well as in other widespread applications.



Support and Services:



Axial Piston Pumps offer technical support and services to ensure that customers get the best possible experience with the product.

This support includes:

Technical advice and assistance

Replacement parts

Repair services

Factory direct sale, competitive prices.

We are factory with quick delivery.

Capability to handle high range of pressure and flow.

Long time service life & high speed.

Easy to maintenance.

Easy to install.



FAQ:



Axial Piston Pumps

Q1: What material is the Axial Piston Pump made from?

A1: The Axial Piston Pump is made from high quality, durable materials.

Q2: How many Axial Piston Pumps are supplied per month?

A2: We are able to supply up to 200 Axial Piston Pumps per month.

Q3: What is the minimum order quantity?

A3: The minimum order quantity for Axial Piston Pumps is 5 sets.

Q4: What kind of payment terms do you accept?

A4: We accept payment via T/T or Western Union.

Q5: What kind of packaging do you use for Axial Piston Pumps?

A5: We use plywood case for packaging Axial Piston Pumps.

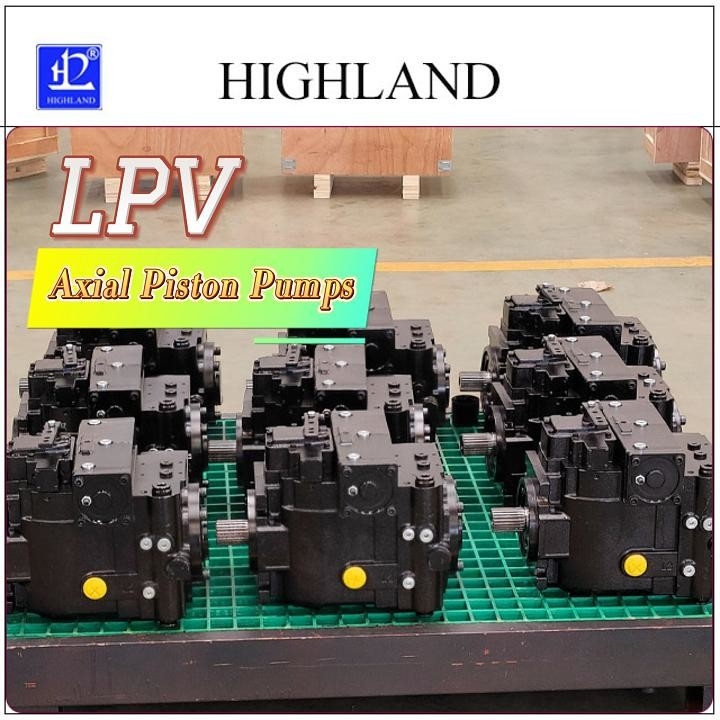

High Pressure Closed Loop Axial Piston Pump For Construction Machinery 2
