Product Details:
|
| Displacment: | 90cc/r Displacement | Type: | Hydraulic System Components |
|---|---|---|---|
| Structure: | Axial Piston Pumps | Material: | Carbon Steel |
| Usage: | Mixer Truck, Combine Harvester Etc | Medium: | Hydraulic Oil |
| Warrantry: | 1 Year | Function: | Hydraulic System |
| Package: | Plywood Case | Product Name: | LPV90 Closed-Loop Circuit Axial Piston Pump |
| Highlight: | Hydraulic System Axial Piston Variable Pump,Closed Loop Circuit Axial Piston Pump,LPV90 Piston Axial Pump |
||

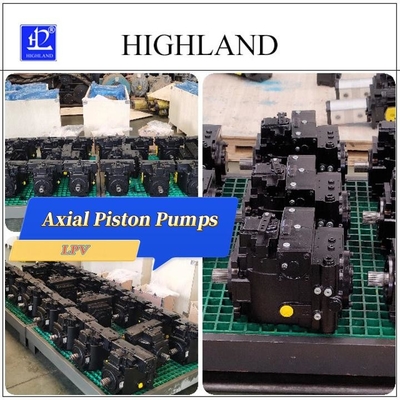

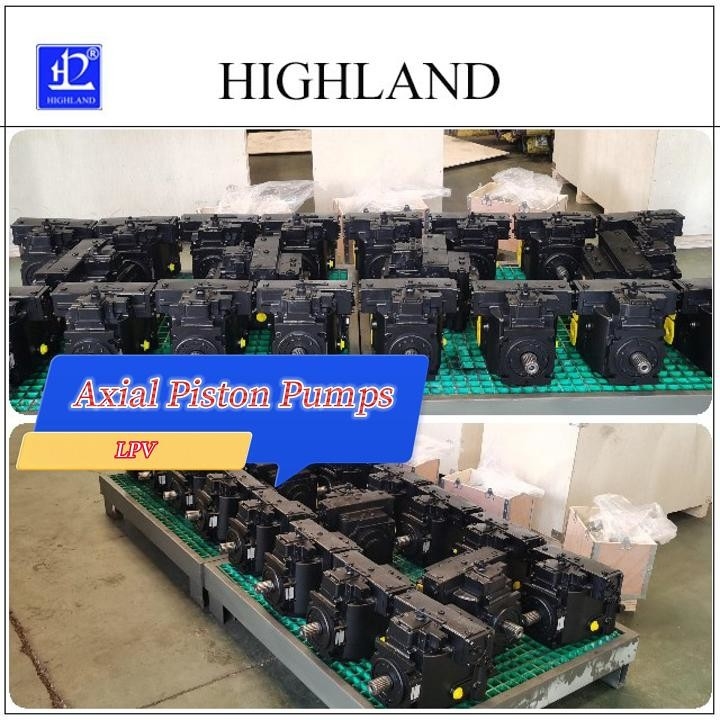

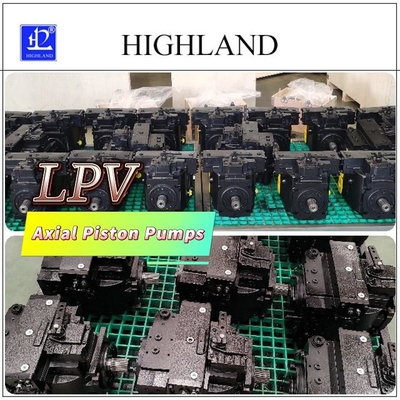

LPV90 Closed-Loop Circuit Axial Piston Pump
Hydraulic variable displacement axial piston pumps application range:
Variable displacement axial piston pumps introduction:
Recognized for their exceptional precision and reliability, axial piston pumps are essential elements in hydraulic systems. These positive displacement pumps feature a cylinder block with multiple cylinders positioned around a central axis. Each cylinder houses a piston intricately connected to a swash plate, also referred to as a cam or wobble plate. This swash plate, firmly attached to a rotating shaft, plays a pivotal role in the pump's operation.
Hydraulic axial piston pumps main features:
1. Variable displacement axial piston hydraulic pumps
2. Axial piston hydraulic pumps have swash plate structure
3. Be suitable for hydrostatic transmissions with closed-loop circuit
4. Manual servo and hydraulic variable control
5. Axial piston hydraulic pumps with a charging oil pump
6. LPV90 hydraulic variable displacement axial piston pump
7. Hydraulic piston pump 42Mpa high pressure
LPV90 Axial piston pumps technical specification:
|
LPV hydraulic pump and LMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
Weight |
LPV series hydraulic pump |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
LPV series hydraulic motor |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Notices:
Use high-quality hydraulic hoses and fittings to reduce the risk of leaks.
Avoid twisting or folding hydraulic hoses to prevent damage and leaks.
Regularly inspect and maintain hydraulic cylinders to ensure smooth operation.
Avoid using damaged or worn hydraulic components in the hydraulic system.
FAQ of variable displacement axial piston pumps:
Q1: Are you a manufacturer?
A: Yes, we are manufacturer to produce, design and test axial piston hydraulic pumps by ourselves.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Do you test all piston pumps before shipment?
A: Yes, we have 100% test before shipment, we must guarantee pumps quality.
