Product Details:
|
| Max.displacemen: | 90ml/r | Max.pressure: | 42mpa |
|---|---|---|---|
| Model: | LPV90+LMF90 | Quality: | Excellent |
| Material: | Cast Iron | Application: | Rice Harvester |
| Warranty: | 1 Year | Function: | Hydraulic System Components |
| Package: | Pywood Case | Product Name: | Boost Your Farming Efficiency With Our Hydraulic Motor Pump System Solutions |
| Highlight: | Farming Efficiency Hydraulic Motor Pump System,Farming Efficiency Motor Pump System |
||

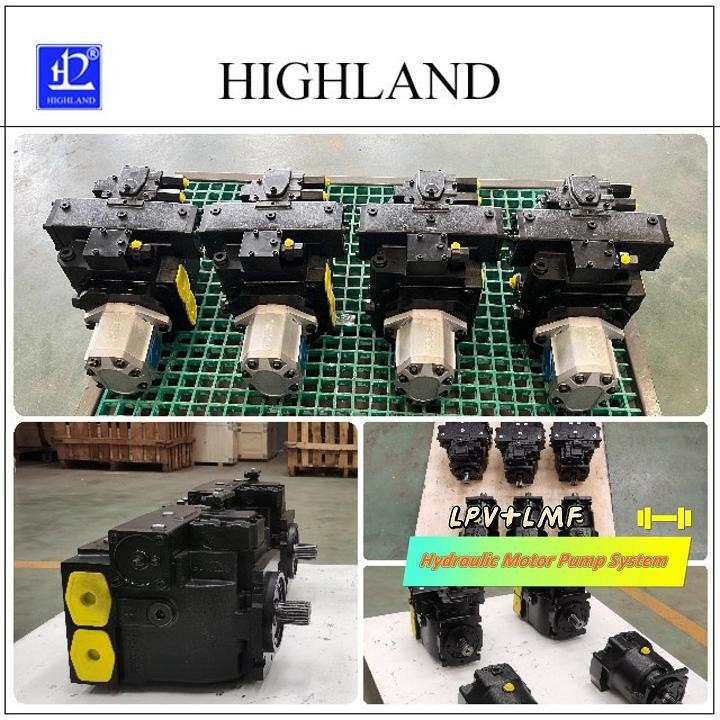

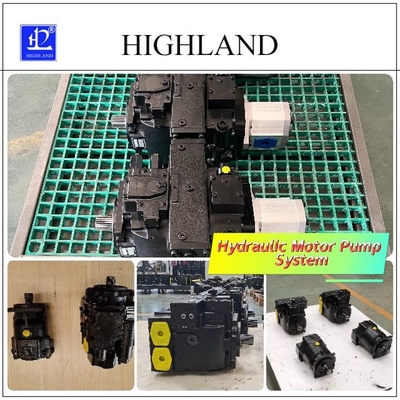

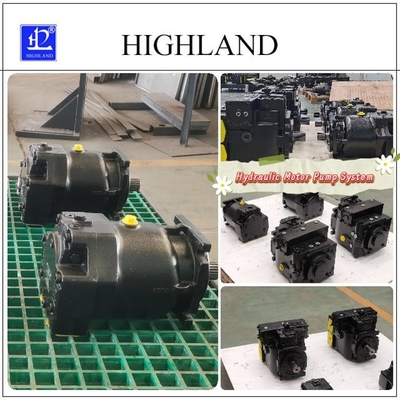

Boost Your Farming Efficiency with Our Hydraulic Motor Pump System Solutions
· cast iron housing
· hydraulic components
· Power components of hydraulic systems
· higher efficiency
· Simple layout
· System Solutions
· work fast
· Fully replace imported products
· Patent certificate certification
· 1 year warranty
· Application rice harvester
· Category Variable displacement axial piston pump
Hydraulic Motor Pump System System Solutions information:
Maximize Agricultural Productivity with Our High-Performance Hydraulic Motor Pump System:** Unleash the full potential of your farm with our high-performance hydraulic motor pump system. Tailor-made for the agricultural industry, it provides unmatched hydraulic power and control for all your farming needs. Whether it's for land preparation, crop irrigation, or pest management, our system's advanced pump, strong motor, and superior valves and hoses guarantee efficiency and durability. Say goodbye to downtime and hello to maximum output with our innovative solution.
Specifications:
Hydraulic Motor Pump System technical parameter
| LPV hydraulic pump and LMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 | ||
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 | ||||||
| Min continuous working speed | r/min | 500 | ||||||
| Pressure | Rated working pressure | Mpa | 35 | |||||
| Max working pressure (transient) | Mpa | 42 | ||||||
| Continuous working pressure | Mpa | 30 | ||||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||||
| Max working temperature of oil tank | ℃ | 70 | ||||||
| weight | LPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| LPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 | |
Hydraulic Motor Pump System notices:
Overheating is a common issue in hydraulic systems and can lead to decreased performance or damage. Ensure your hydraulic motor pump system is located in a well-ventilated area or equipped with a cooling system to prevent overheating. Regularly check the temperature of your system during operation to ensure it stays within safe limits.
Hydraulic Motor Pump System use:
The hydraulic pump motor system for agricultural machinery is widely used in various types of agricultural machines, such as self-propelled harvesters1, tillage machines2, irrigation machines3, etc. The system can also be integrated with other technologies, such as electro-hydraulic control2, hydraulic suspension2, HST (Hydro Static Transmission)3, HMT (Hydro Mechanical Transmission)2, etc., to achieve higher automation and intelligence levels.
Hydraulic Motor Pump System faq
Q1. Can I have a sample order for hydraulic motor pump system?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the hydraulic motor pump system lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for hydraulic motor pump system?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the hydraulic motor pump system and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for hydraulic motor pump system
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the hydraulic motor pump system?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty hydraulic motor pump system?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
