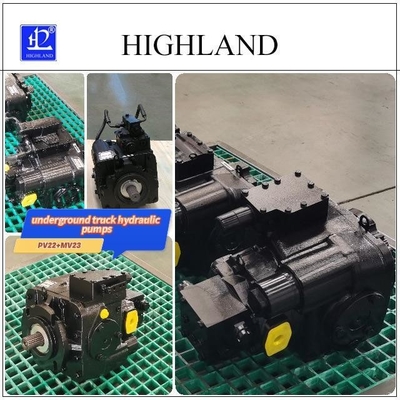

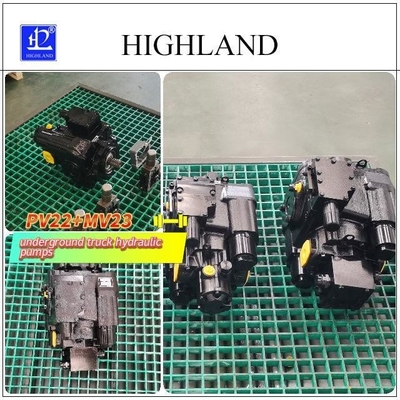

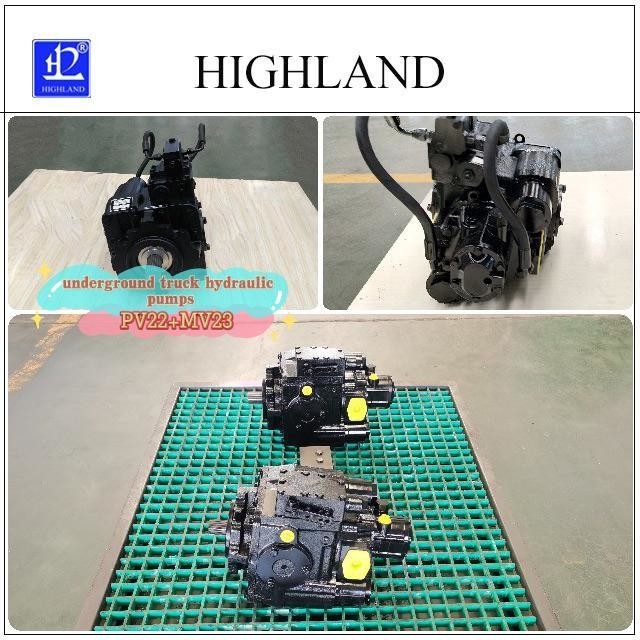

Improve Your Mining Productivity with Our Underground Truck Hydraulic Pumps
Quick Detail:
· Cast iron housing
· Hydraulic components
· Model PV22+MV23
· Hydraulic system power components
· Principle hydraulic transmission
· Features lifetime technical support
· Simple layout
· System Solutions
· Work fast
· Fully replace imported products
· Patent certificate certification
· Application pharmaceutical machinery underground truck hydraulic pumps
· 1 year warranty
Description:
Our radial piston pumps offer unmatched performance in underground mining applications. With precision engineering and superior construction, these pumps ensure your trucks operate efficiently and effectively, even under the most challenging conditions. Choose our hydraulic solutions to keep your mining operations running at peak performance.
PV22+MV23 Technical parameter:
| PV22 hydraulic pump and MV23 hydraulic motor series |
PV22 |
MV23 |
| Displacement |
Max displacement |
ml/r |
69.8 |
89 |
| Speed |
Max continuous working speed
(Full load condition) |
r/min |
3200 |
3200 |
| Rated speed |
r/min |
2500 |
| Min continuous working speed |
r/min |
500 |
| Pressure |
Rated working pressure |
Mpa |
35 |
| Max working pressure (transient) |
Mpa |
42 |
| Continuous working pressure |
Mpa |
30 |
| Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
| Torque |
Continuous output torque
(Under continuous working pressure) |
Nm |
342.6 |
432.9 |
| Max output torque |
Nm |
480 |
606 |
| Power |
Continuous output power |
KW |
107 |
139 |
| Max power |
KW |
114 |
150 |
| Temperature |
Allowable shell temperature |
℃ |
80 |
| Max working temperature of oil tank |
℃ |
70 |
| weight |
PV series hydraulic pump hydraulic oil drain |
kg |
62 |
|
| PV series hydraulic motor hydraulic oil drain |
kg |
|
66 |
Notices:
Using the correct type of hydraulic fluid is essential for the optimal performance and durability of your underground truck hydraulic pumps. Ensure that the fluids meet the specifications recommended by the manufacturer and check regularly for contamination and proper levels to prevent wear and tear on your hydraulic systems.
FAQ
Q1. Can I have a sample order for pharmaceutical machinery underground truck hydraulic pumps?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
10 to 15 days for samples, mass production according to MOQ
Q3. Do you have any MOQ limit for pharmaceutical machinery underground truck hydraulic pumps?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
Ship by sea, it generally takes 15-20 days to arrive, and air is also optional.
Q5. How to proceed an order for pharmaceutical machinery underground truck hydraulic pumps ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q7: How to deal with the faulty?
Firstly, our products are produced in strict quality control system.Secondly, we will inspect the defective pump and motor, and then respond according to the actual situation.
