Product Details:
|
| Displacment: | 90cc/r Displacement | Type: | Hydraulic System Components |
|---|---|---|---|
| Structure: | Axial Piston Pumps | Material: | Carbon Steel |
| Usage: | Mixer Truck, Combine Harvester Etc | Medium: | Hydraulic Oil |
| Warrantry: | 1 Year | Function: | Hydraulic System |
| Package: | Plywood Case | Product Name: | Innovative Design Variable Displacement Axial Piston Pumps For Machinery |
| Highlight: | Machinery Axial Piston Pumps,Innovative Design Axial Piston Pumps,Variable Displacement Axial Piston Pumps |
||

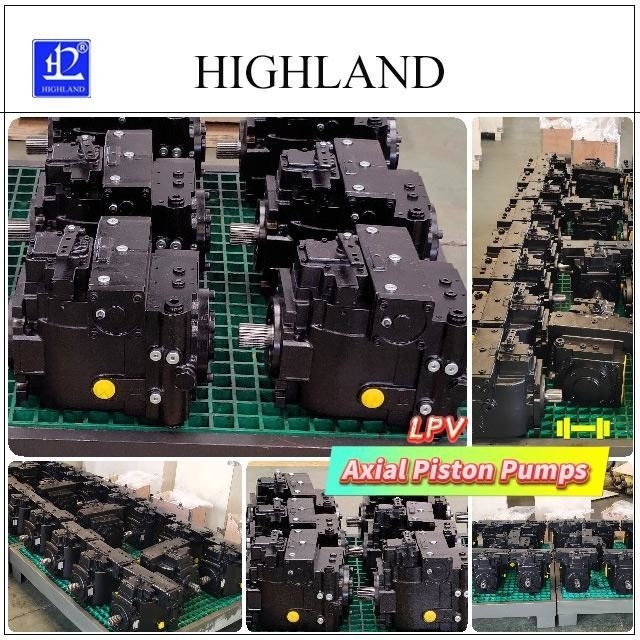

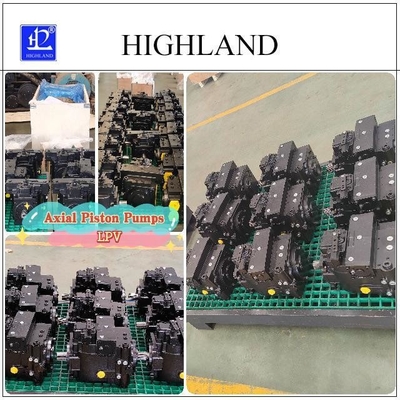

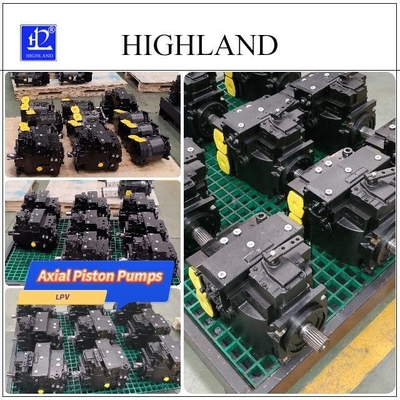

Innovative Design Variable Displacement Axial Piston Pumps for Machinery
Variable displacement axial piston pumps introduction:
Elevate your machinery's performance with our cutting-edge axial piston pumps, designed for superior fluid dynamics and reliability. Our pumps feature an innovative compact design, making them perfect for tight spaces without sacrificing power. They are meticulously crafted to maintain stability and performance under variable loads, providing your systems with the continuous power they need to operate efficiently and effectively.
Hydraulic axial piston pumps main features:
1. Variable displacement axial piston hydraulic pumps
2. Axial piston hydraulic pumps have swash plate structure
3. Be suitable for hydrostatic transmissions with closed-loop circuit
4. Manual servo and hydraulic variable control
5. Axial piston hydraulic pumps with a charging oil pump
6. LPV90 hydraulic variable displacement axial piston pump
7. Hydraulic piston pump 42Mpa high pressure
LPV90 Axial piston pumps technical specification:
|
LPV hydraulic pump and LMF hydraulic motor series |
30 |
50 |
70 |
90 |
110 |
130 |
||
|
Displacement |
Max displacement |
ml/r |
30 |
50 |
70 |
90 |
110 |
130 |
|
Speed |
Max continuous working speed |
r/min |
3500 |
3500 |
3200 |
3200 |
2900 |
2900 |
|
Rated speed |
r/min |
2500 |
||||||
|
Min continuous working speed |
r/min |
500 |
||||||
|
Pressure |
Rated working pressure |
Mpa |
35 |
|||||
|
Max working pressure (transient) |
Mpa |
42 |
||||||
|
Continuous working pressure |
Mpa |
30 |
||||||
|
Allowable shell pressure (Absolute) |
Mpa |
Constant0.25, Peak value0.5 |
||||||
|
Torque |
Continuous output torque |
Nm |
162.3 |
252.3 |
342.6 |
432.9 |
535.3 |
632.4 |
|
Max output torque |
Nm |
227 |
353 |
480 |
606 |
749 |
885 |
|
|
Power |
Continuous output power |
KW |
45 |
79 |
107 |
139 |
149 |
176 |
|
Max power |
KW |
62 |
95 |
114 |
150 |
173 |
205 |
|
|
Temperature |
Allowable shell temperature |
℃ |
80 |
|||||
|
Max working temperature of oil tank |
℃ |
70 |
||||||
|
Weight |
LPV series hydraulic pump |
kg |
45 |
46 |
63 |
64 |
82 |
88 |
|
LPV series hydraulic motor |
kg |
30 |
30 |
36 |
36 |
36 |
38 |
|
Notices:
Regularly inspect the seals and gaskets of your axial piston pumps for any signs of wear or leakage. These components are crucial for maintaining the integrity of the hydraulic system. Replacing worn seals and gaskets in a timely manner prevents hydraulic fluid leaks, maintains system pressure, and ensures the continuous and efficient operation of your pumps.
FAQ of variable displacement axial piston pumps:
Q1: Are you a manufacturer?
A: Yes, we are manufacturer to produce, design and test axial piston hydraulic pumps by ourselves.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Do you test all piston pumps before shipment?
A: Yes, we have 100% test before shipment, we must guarantee pumps quality.
