Product Details:
|
| Product Model: | PV21 | Max Displacement: | 51.6cc/r |
|---|---|---|---|
| Type: | Hydraulic Components | Structure: | Axial Piston Hydraulic Pump |
| Material: | Cast Iron | Color: | Black, Blue Or Custom Made |
| Medium: | Hydraulic Oil | Warranty: | 1 Year |
| Function: | Hydraulic System Components | Package: | Plywood Case |
| Highlight: | PV21 Axial Piston Hydraulic Pumps,51.6cc/r Axial Piston Hydraulic Pumps,PV21 Cement Truck Hydraulic Pumps |
||

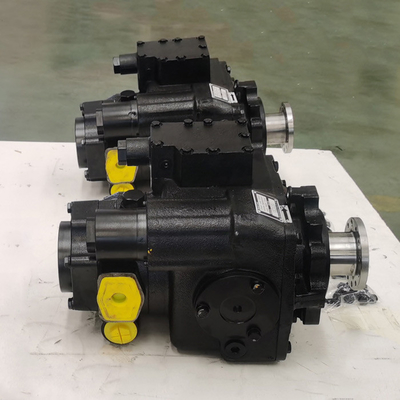

Cement mixer truck PV21 axial piston hydraulic pumps full-featured function
Cement mixer hydraulic pumps basic introduction:
Cement mixer hydraulic pump working principle: Hydraulic pump can produce hydraulic through tubing to the hydraulic motor, hydraulic motor to convert hydraulic energy into kinetic energy and through reducer slow down and increase torque, transfer to the mixing tank, by adjusting the servo controller angle of hydraulic pump so as to realize reversing and speed of the drum, in order to realize concrete loading, mixing, stirring, discharging and other operations.
PV21 axial piston hydraulic pumps main features:
Mixer axial piston hydraulic pump technical specification:
| 20 series PV hydraulic pump and MF hydraulic motor | 20 | 21 | 22 | 23 | ||
| Displacement | Max displacement | ml/r | 33.3 | 51.6 | 69.8 | 89.0 |
| Speed | Max continuous working speed (Full load condition) |
r/min | 3500 | 3500 | 3200 | 3200 |
| Rated speed | r/min | 2500 | ||||
| Min continuous working speed | r/min | 500 | ||||
| Pressure | Rated working pressure | Mpa | 35 | |||
| Max working pressure (transient) | Mpa | 42 | ||||
| Continuous working pressure | Mpa | 30 | ||||
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 | ||||
| Torque | Continuous output torque (Under continuous working pressure) |
Nm | 162.3 | 252.3 | 342.6 | 432.9 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 |
| Max power | KW | 62 | 95 | 114 | 150 | |
| Temperature | Allowable shell temperature | ℃ | 80 | |||
| Max working temperature of oil tank | ℃ | 70 | ||||
| Weight |
PV series hydraulic pump hydraulic oil emptying |
kg | 45 | 53 | 63 | 78 |
|
PV series hydraulic motor hydraulic oil emptying |
kg | 30 | 34 | 40 | 47 | |
Our advantages of concrete mixer hydraulic pump:
FAQ of hydraulic pump:
Q: Are you a manufacturer or trading company?
A: We are a professional hydraulic pumps manufacturer.
Q: What is the MOQ?
A:1pcs is also OK.
Q: How long is your warranty?
A: All our products come with an one (1) year warranty.
Q: Which payment terms could you accept?
A: Payment Terms: T/T , Western Union or Cash .
Q: Is your company accept customization?
A: We have our own factory, and excellent design team,and we accept OEM.
Tags: mixer hydraulic pump, PV21 axial piston hydraulic pumps, concrete mixer hydraulic pumps
