Product Details:
|
| Power: | 90 Kw | Flow Rate: | 380 L/min |
|---|---|---|---|
| Pressure: | 35mpa | Application: | Repairing Company Or Valves Manufacturing Enterprise |
| Power Source: | According To Local Power Source Of Customers | Warranty: | 1 Year |
| Motive Force: | Electromotor | Medium: | Hydraulic Oil |
| Usage: | Testing Hydraulic Valves | Poduct Name: | Dredger Hydraulic Valve Testing Machine Environmental Protection And Energy Saving |
| Highlight: | Dredger Hydraulic Valve Testing Machine,Hydraulic Valve Testing Machine YST380,Environmental Protection Hydraulic Test Stands |
||

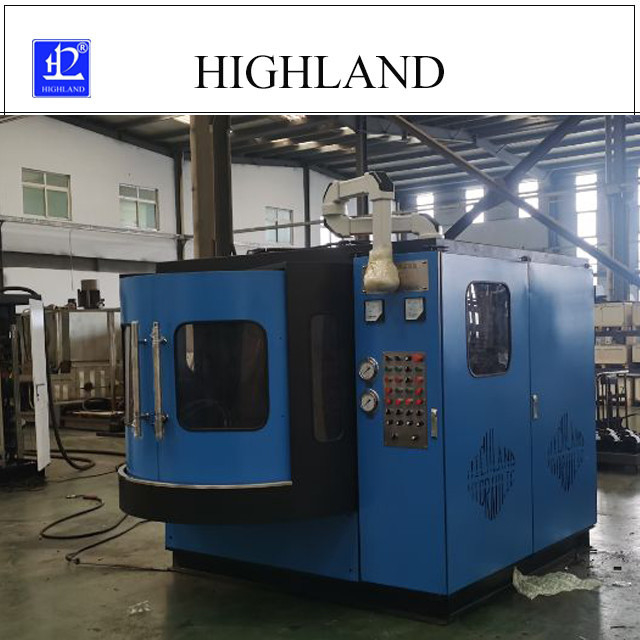

Dredger hydraulic valve testing machine environmental protection and energy saving
Hydraulic valve testing machine product introduction
The hydraulic valve test bench is designed and manufactured according to the standards of various countries for the delivery test of hydraulic pump motors. It can test the dynamic and static performance of hydraulic piston pumps (single pump, double pump, multi pump), gear pumps, agricultural machinery hydraulic pumps, etc. it is the most important testing equipment for hydraulic pump production and maintenance enterprises
Technical parameter
| Hydraulic valve testing machine Technical parameter | |
| Pressure(mpa) | 35mpa / 42mpa |
| Flow rate(L/min) | 380L/min / 450L/min / 500L/min |
| Power(KW) | 75kw / 90kw / 110kw / 160kw / 200kw / 250kw / 315kw |
| Power Drive Mode | Electromotor / Diesel engine drive / Hydraulic mortor / Power recovery |
| Speed Range | 1000r/min / 0-1500r/min / 0-2500r/min |
| Load location | Liquid control loading / Proportional loading |
| Show location | Locale/ Computer (long-distance) |
| Working Medium | Hydraulic oil |
| Composition | Pressure, flow, speed, displacement and volume, open and closed pumps, left and right rotation items, motors, oil cylinders, torque, power, computer generated test reports, graphs, computer collected data, printouts |
| Applicable area | Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic valve testing machine Applicable area:
Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.
Hydraulic valve testing machine main features
The maintenance enterprises and remanufacturing enterprises of the hydraulic valve test bench are used for fault judgment before maintenance and testing of main performance parameters after maintenance, so as to ensure that the performance indexes of components before installation meet the requirements and avoid repeated assembly and disassembly.
FAQ of road roller machine hydraulic piston pumps:
Q1: Could I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2: How do you ship the goods and how long does it take to arrive?
A: Ship by air express, it takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3: Do you offer guarantee for the products?
A: Each motor or pump should be tested before shipping, test report can be sent if requested.
Warranty 12 months after shipment for complete assembly.
Q4: What are the payment terms?
A: Full order: 30% as deposit, balance before shipment.
Small order/sample order: Full advance payment.
Q5: Are you manufacturer?
We are a manufacturer with own plant manufacturing hydraulic motor pump system.
20 years experience in hydraulic industry for oversea and domestic markets. Main business range is hydraulic motor pump system, piston pumps and motors, welcome to visit our factory in Dezhou city Shandong province.
Tag: Hydraulic Valve Testing Machine,test bench hydraulic pump,universal hydraulic test bench
